Page 17

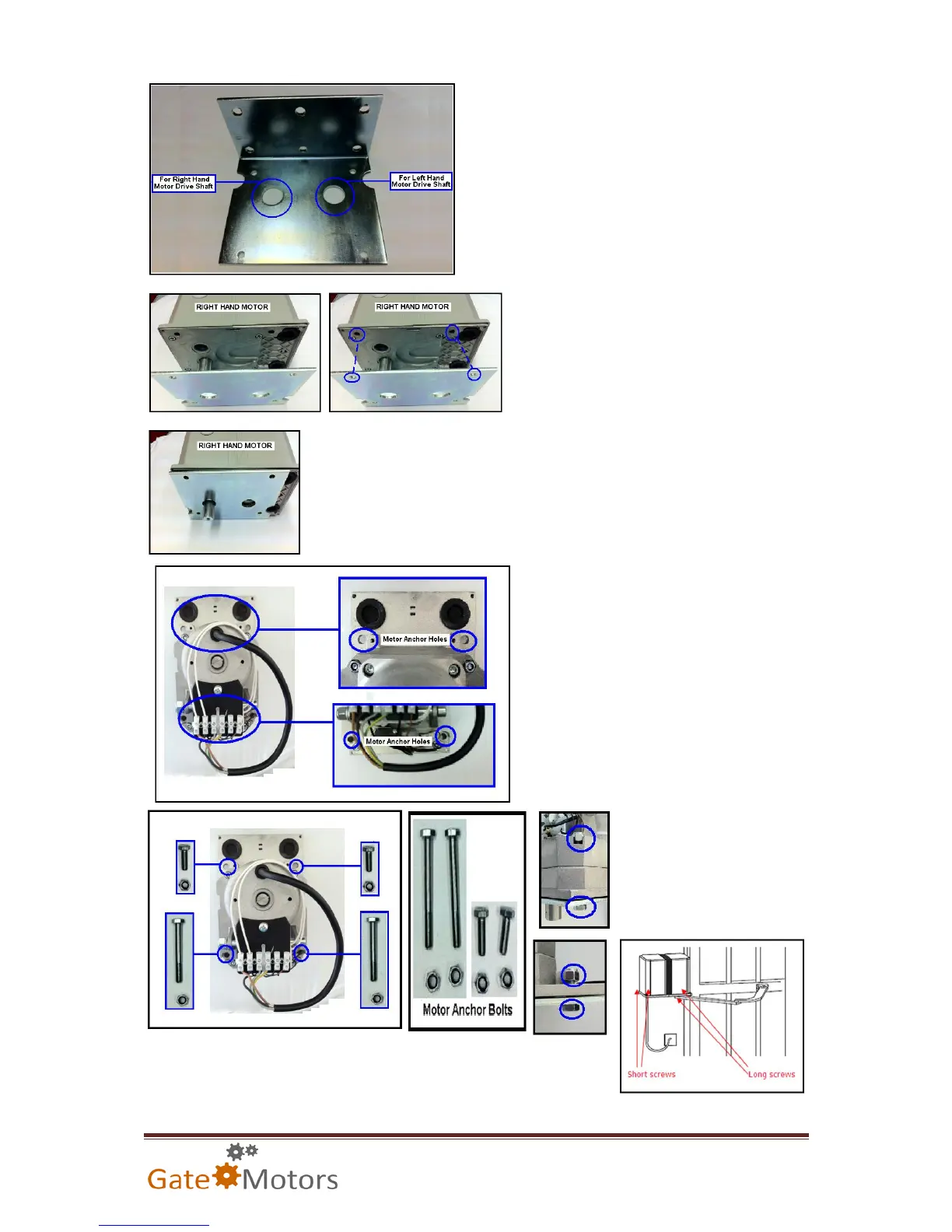

Fixing the Motor to the Anchor Plate
Place the motor onto the anchor plate, paying particular
attention to the positioning of the drive shaft for the
motor. This drive shaft must be positioned nearest to
the gate leaf to enable the articulated arm to operate at
efficiently. The anchor plate has two exit holes for the
drive shaft – as illustrated left.
Carefully, lower the motor onto the anchor
plate making sure that the drive shaft can pass
through the purpose fabricated exit hole. The
motor anchor holes are pre-cut to measure in
order to line up perfectly with the plates pre-
drilled holes.
With the motor in position on the anchor plate (illustrated left), and the motors
own anchor holes are aligned correctly with the pre-drilled holes on the plate –
use the set of motor anchor bolts to fix the motor to the plate.
Gently lift up the motors cover to expose the
motors anchor holes (illustrated left).
Using the Motor Anchor Bolts,
illustrated left, insert into
place from the underside –
with the bolt head visible
from underneath the anchor
plate - Illustrated left.
