Page 13

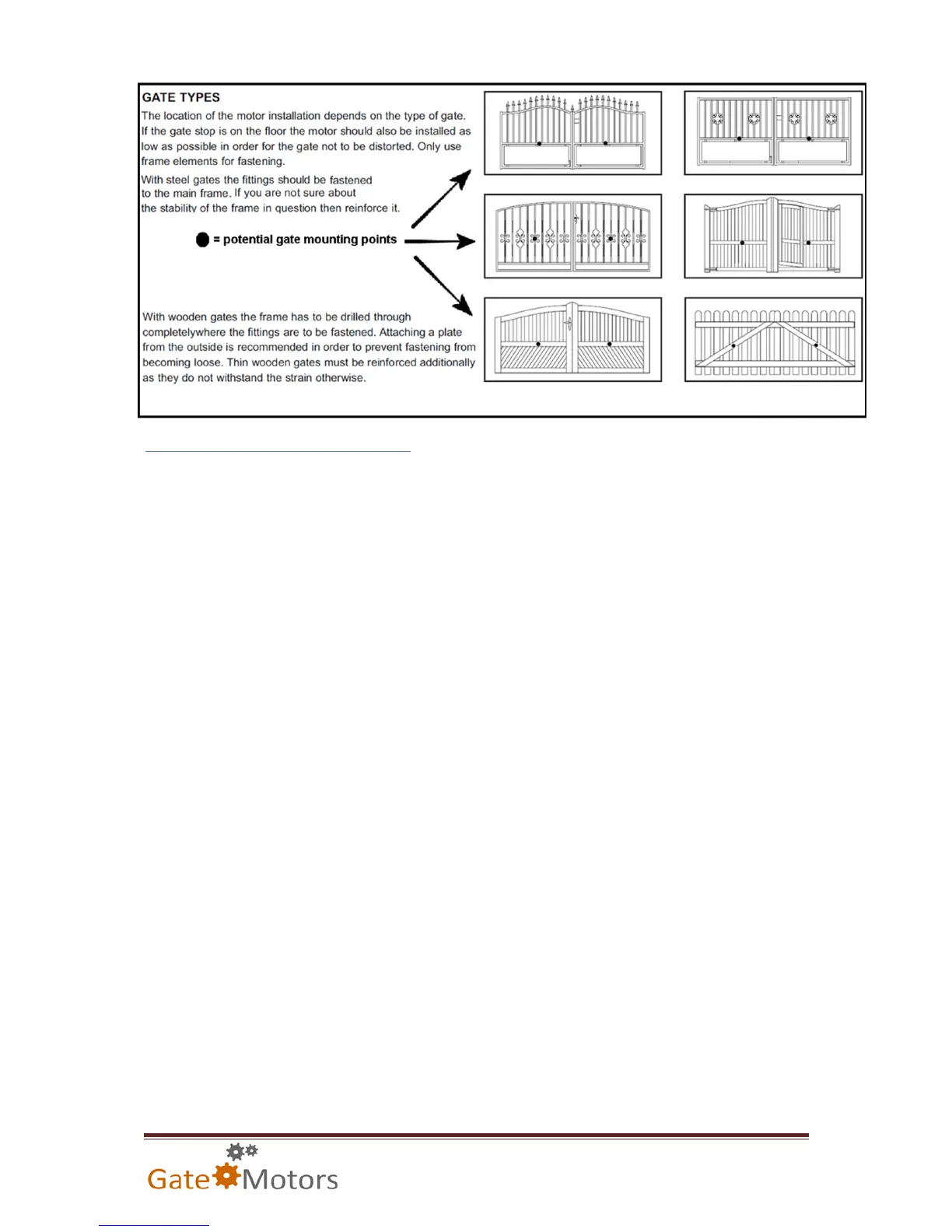

Identifying the fixing point on the gate
Identify the Fixing Point on the Gate
The above connection points to the gate are suggested fixing points. This is based according to the
gates shape and the fixing possibilities:
a) If the gate leaf is large in height and width, you can position the motors connecting arm on
the gate at any height with no restriction.
b) If the gate leaf is light in weight, it is necessary to place the motors connecting arm on the
gate as centrally as possible in order to push and pull the gate effectively, with no shaking
and no distorting.
