Page 27
Outward Opening Double Leaf Gate
For gates that open outwards, The Kit Simply can operate a specific handed gate leaf before the other. This
comes into play where there is a “lip” on a gate leaf which keeps the gates together or there are specific
requirements to have one leaf open before the other.

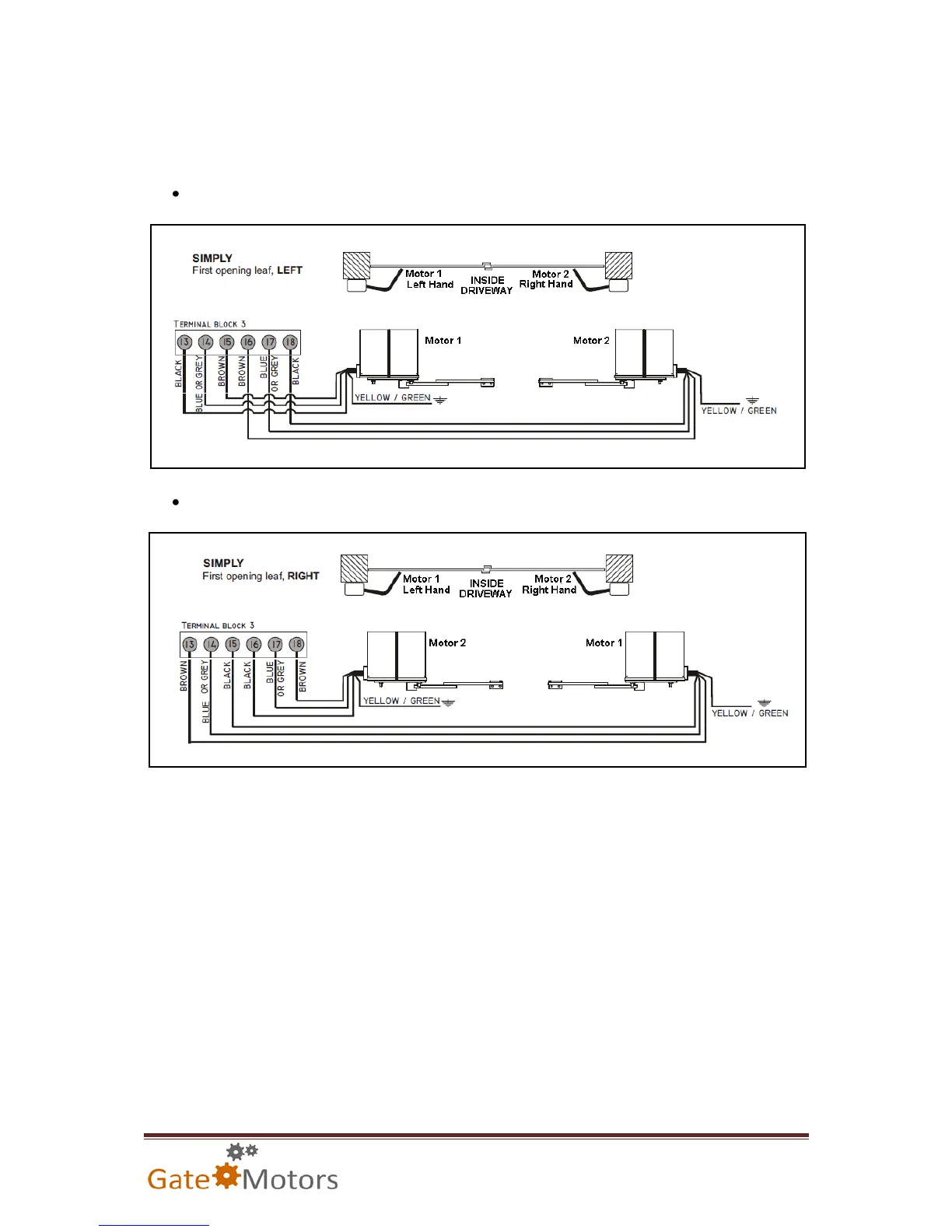

Please follow the wiring diagram below for the connection to the Q60AR Swing Gate Control Board if:
First leaf to open is the left hand side:
First leaf to open is the right hand side:
Installation Complete
Now your installation is complete with the fixing of the motors to the gate, please proceed to
installing the safety devices and other equipment supplied or purchased with your kit to the control
board. Please carefully follow the Q60AR Control Board instruction guide that accompanies the kit to
ensure smooth operation of your gate automation.
