Once the motor has been anchored to its mounting
plate with the shelf in the lower position, when the
motor cover is replaced the plate will be hardly
visible and the motors drive shaft will visible -
illustrated left.
Once attached to the gate pillar, the complete
anchor plate will not be visible - illustrated right.

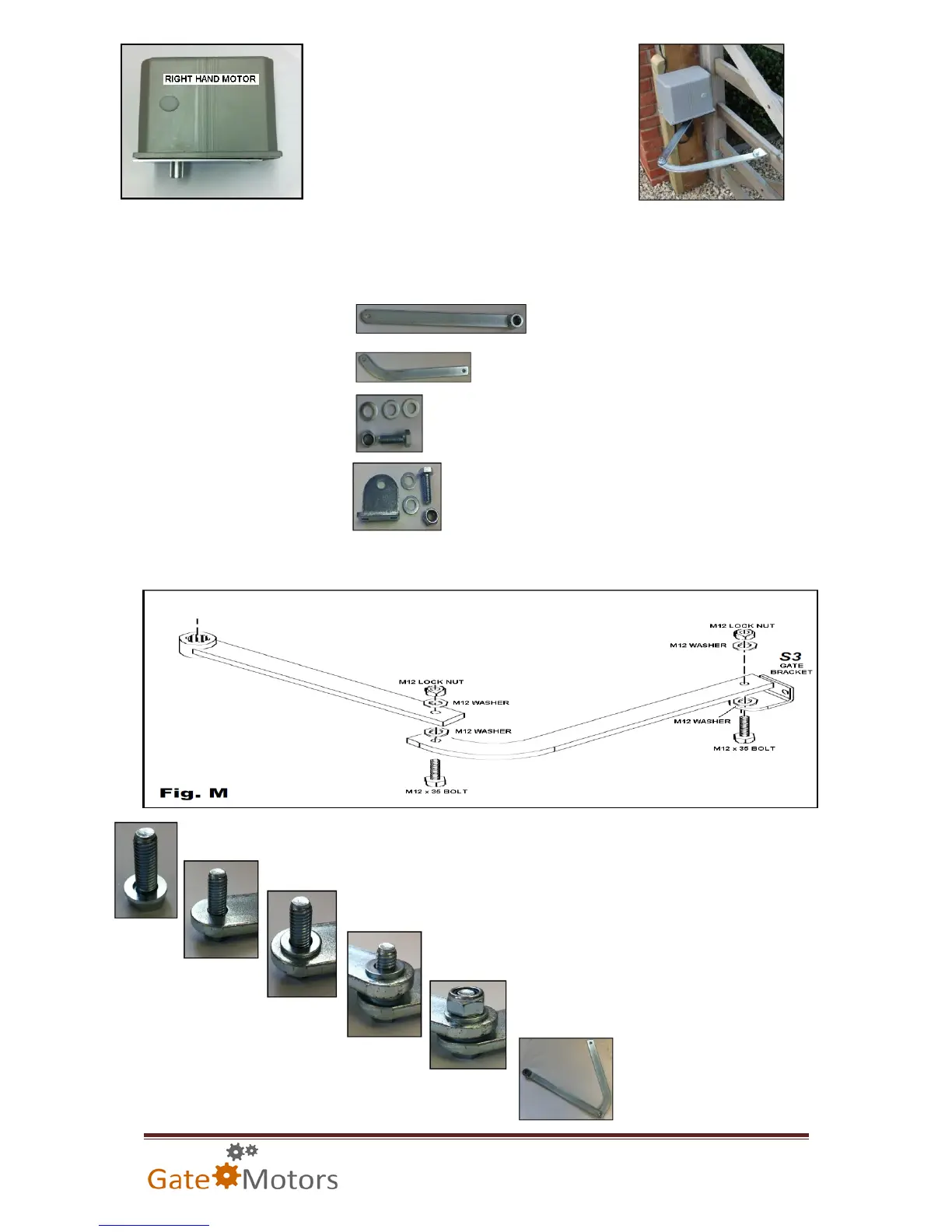

Assembling the Articulated Galvanised Arms
A single side articulated arm comes in four parts:
A) Straight arm
B) Curved arm
C) Articulated fixing bolts
D) S3 Gate attachment
& fixing bolts
Using the Articulated fixing bolts, assemble as follows (Fig. M):
Stand M12 bolt on its head and place M12 washer over the treaded stem.
Place eye of curved arm over the threaded bolt stem so it sits on the washer.
Place second M12 washer over the threaded stem.
Place eye of straight arm over the threaded stem
along with the third M12 washer.
Secure in place with M12 lock nut
allowing elbow of arm to swing with ease.
Articulated arm is assembled.
