Page 24

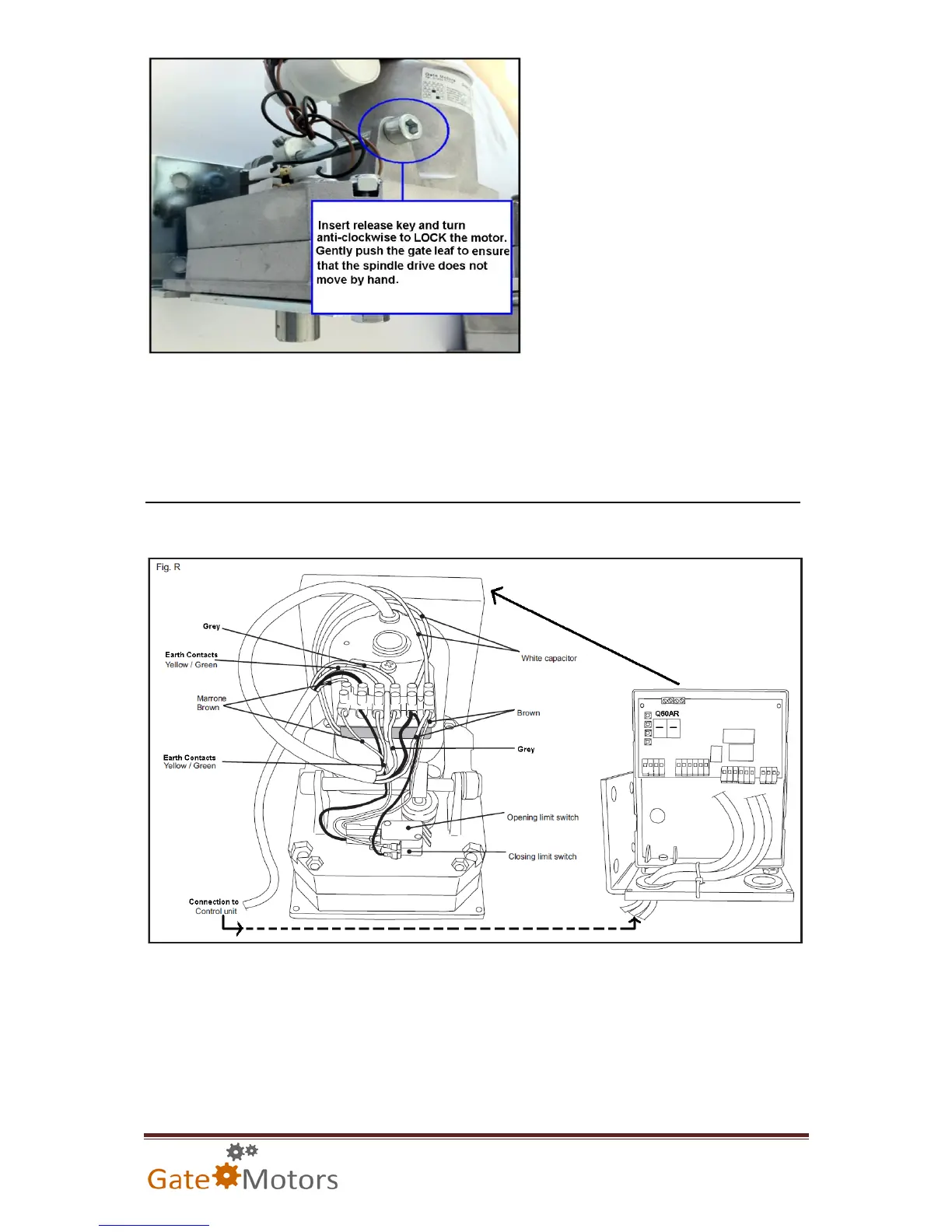

Re-lock the motor using the release key
supplied to ensure the gate cannot move
when manual force is applied. This ensures
the spring mounted release mechanism has
interlocked with the motor gears.
If the motor is not re-locked, when the
automation is activated the motor spindle
will just spin with no movement produced by
the articulated arm.
Connecting Motor Wiring to the Q60AR Control Board
With the motor’s now in position, CAM limit switches set and the motors locked, we now look to connecting
the wiring connections to the Q60AR Double Swing Gate Control Board. Contained within the left hand motor
housing, fixed to the rear of the motor is the control board (illustrated below).
From production, by default, the LEFT HAND motor is always pre-wired and connected to the control board.
To Next Page
