Electrical Outlet
Warning! Shock Hazard!
- Never plug in an appliance with more than a 5 amp rat
-
ing into this outlet.
- Always keep outlet covered when not in use.
Maintenance
Use only original equipment replacement parts. The use of
alternate or third party components can cause unsafe
operating conditions, and will void your warranty.
We suggest following a maintenance schedule as follows:
Fuel/Fuel Tank - Flush every 200 hours of operation or as
needed. Do not use water to flush the tank. Use fresh 1-K
kerosene only.
Filters - The Air Intake Filter should be replaced or
washed with soap and water and dried thoroughly every
500 hours of operation, or less, depending on conditions.
The Output and Lint Filters should be replaced every
500 hours of operation or less, depending on conditions.
Fan Blades - Warning! Never service heater while hot or
still connected to electrical source.he fan Blades should be
cleaned at least once per heating season, depending on
conditions.
Remove all accumulated dust and dirt with a damp cloth,
taking care not to bend any of the fan blades. Be sure fan
blades are dry before re-starting the heater. For Fan
removal, see
Figure 15.
Nozzles - Nozzles should be cleaned or replaced at least
once per heating season. Contaminated fuel could make
this necessary immediately.
To clean dirt from nozzle, blow compressed air through
nozzle front. It may be necessary to soak nozzle in clean
1-K kerosene to help loosen any particles.
Spark Plug - Clean and re-gap every 600 hours of opera-
tion, or replace as needed.
After removing the Spark Plug, clean the terminals with a
wire brush. Re-gap the terminals to 0.140” (3.5mm).
Photo Cell - The Photocell should be cleaned at least
once per heating season or more depending on conditions.
Use a cotton swap dipped in water or alcohol to clean the
lens of the Photocell. Note the proper Photocell position as
noted in
Figure 18.
Kerosene
Forced Air Heaters
Electric Outlet
(120V 5amp max
non fused)
Storage Drawer
(Except PT 45-KFA,
PT-70-KF
A)
Figure 13. Electric outlet detail
Fan Guard
Air Intake Filter
Air Output Filter
Intake Filter
End Filter Cover
Mot
Lint Fliter
Upper Shell
Figure 14. Filter replacement
Ignitor Wire
Screw
Burner Head
Spark Plug
Fuel Line Hose
Air Line Hose
Fuel Line Fitting
Air Line Fitting
Nozzle
Nozzle Face
Burnrer Head
Figure 16. Nozzle replacement
Ignitor Wire
Gap
Spark Plug
Burner Head
Ign
itor Wire
Screw
Burne
r Head
Spark Plug
Fuel Line Hose
Air Line Hose
Fuel Line Fitting
Air Line Fitting
Nozzle
Nozzle Face
Burnrer Head
Figure 17. Spark Plug replacement

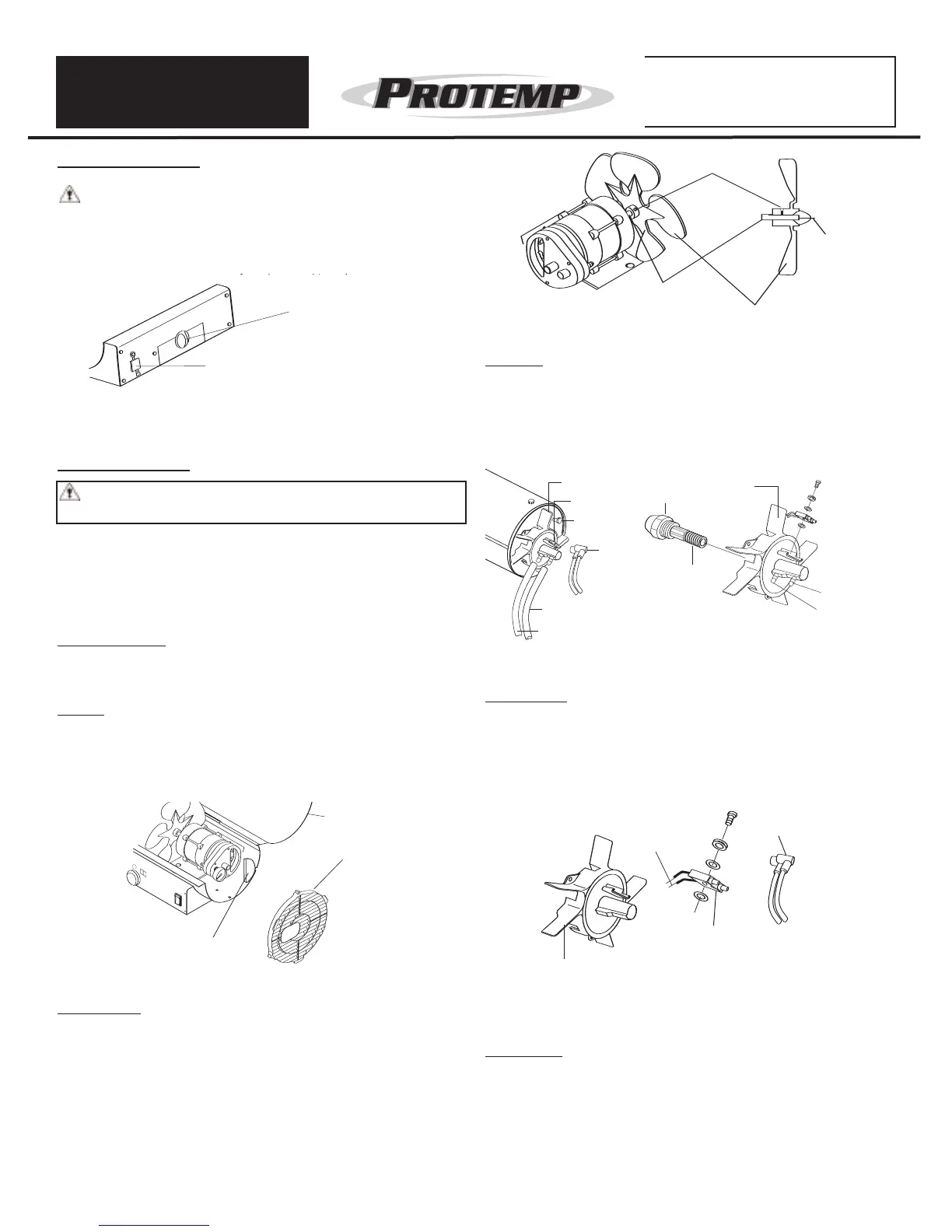

Pinnacle Products International, Inc. Kerosene Owners Manual Page 9
Fan Guard
Air O
utput Filter
Intake Filter
End Filter Cover
Moter Shaft
Set Screw
Fan Blade
Flush
Lint Fliter
Upper Shell
Figure 15. Fan replacement
Never leave heater
unattended while burning,
or while connected to a
power source
Warning! Never service heater while hot or still
connected to electrical source.
