Setting Up the Display
4

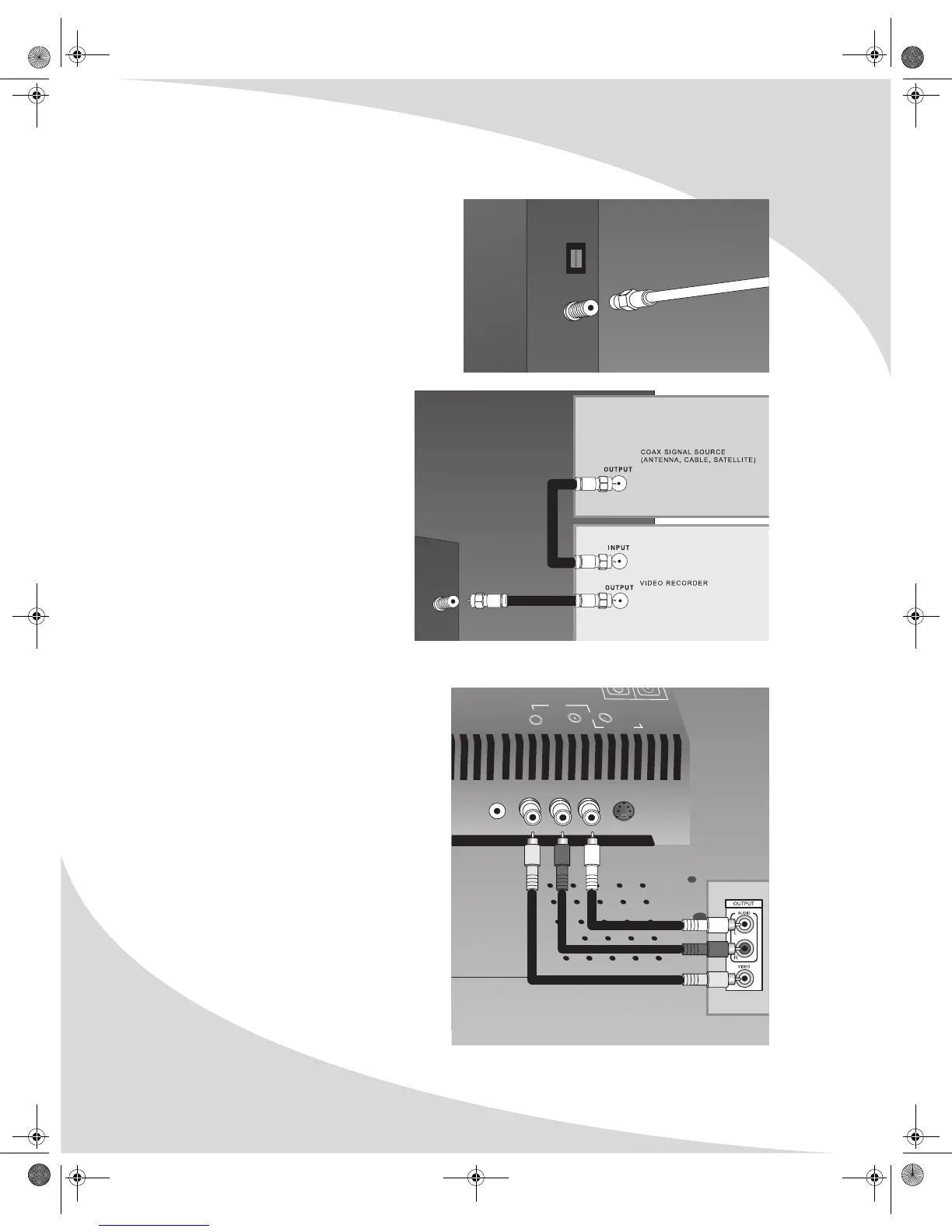

Connecting an Analog TV Signal
An analog TV signal may come from a cable
box, satellite receiver, antenna, or similar
device.
To connect an analog TV signal source to the
display, connect a coaxial cable between the
NTSC input and the TV signal source (for
example, a cable box, satellite receiver, or
antenna).
Note: If you would like to be able to
record the TV signal with a VCR,
DVD recorder, or similar device,
connect the TV signal source to
the input of the recording
device with one cable, then
connect the output of the
recording device to the NTSC
jack on the display with another
cable.
Connecting Composite Video Devices
Many video devices, such as VCRs, DVD
players, video game systems, and
camcorders, have composite video outputs.
Composite video uses one RCA cable to
transmit video information and generally
provides lower quality than S-Video,
component video, and HDMI (see below).
To connect a composite video source to
the display:
1. Using an RCA cable, connect the
composite video output (yellow) on the
source device to the corresponding jack
in one of the two composite video blocks
on the display (AV 1 IN or AV 2 IN).
2. Using two other RCA cables, connect the
right (red) and left (white) audio outputs
on the source to the corresponding jacks
in the same composite video block used
above.
AV 1 IN
AUDIO 1
S-VIDEO IN
S-VIDEO
PC
AUDIO IN
VIDEO 1
OMPLTV3250-1.book Page 4 Monday, July 17, 2006 8:15 PM
