After configuring the required parameters, click OK and then COMMIT.
5.8.2.3.1 Add VLAN IDs to Trunk Table
To add VLAN IDs to the trunk table,
1. Click Add in the VLAN Ethernet Configuration screen. The VLAN Trunk Table Add Row screen appears.

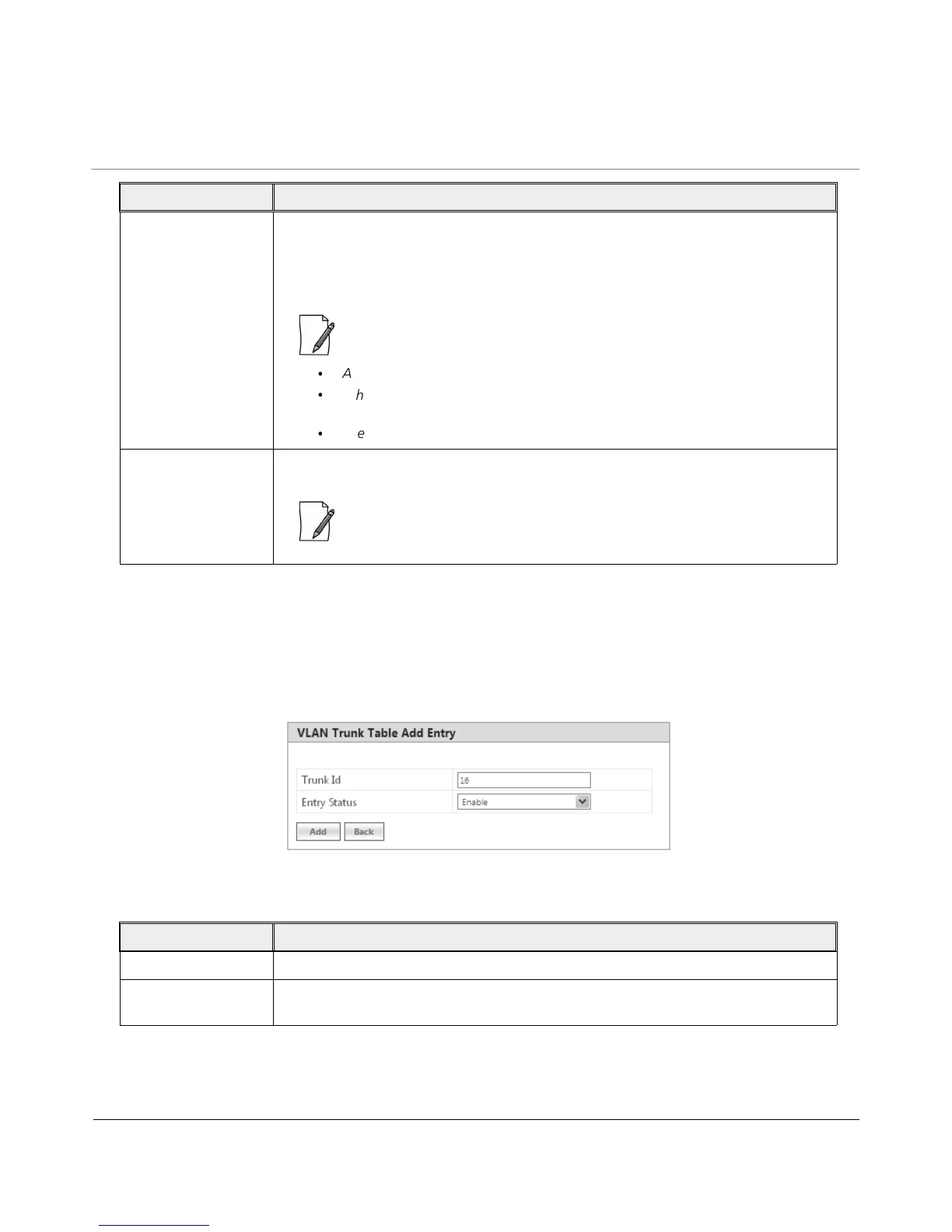

Figure 5-91 Add VLAN IDs to Trunk Table
Given below is the table which explains the method to add VLAN IDs to Trunk Table:
2. Click Add.
3. To save and apply the configured parameters on the device, click COMMIT.
Port VLAN ID Enter the Port VLAN ID in the Port VLAN ID box. The untagged data frames received at
the Ethernet interface are tagged with this port VLAN Id and then forwarded to the
destination interface. By default, the Port VLAN Id is set to -1 which indicates no tag is
added to the data frame. To set Port VLAN tag to the data frame, enter a value ranging
from 1 to 4094.
:
·
Applicable only on an SU, End Point A and End Point B.
·
When Double VLAN is enabled on the device, the Port VLAN ID should not be set
to -1.
·
The configured Port VLAN Id should not exist in the Trunk table.
Port VLAN Priority This parameter is used to set IEEE 802.1p priority for the data frames. By default, the
priority is set to 0. To set the Port VLAN priority, enter a value ranging from 0 to 7.
: Applicable only to SU and End Point devices.
Parameter Description
Trunk Id Enter VLAN ID in the Trunk Id box.
Entry Status This parameter indicates the status of each VLAN Trunk Id entry. By default, the Trunk Id is
enabled. To disable, select Disable from the Entry Status box.
Parameter Description
