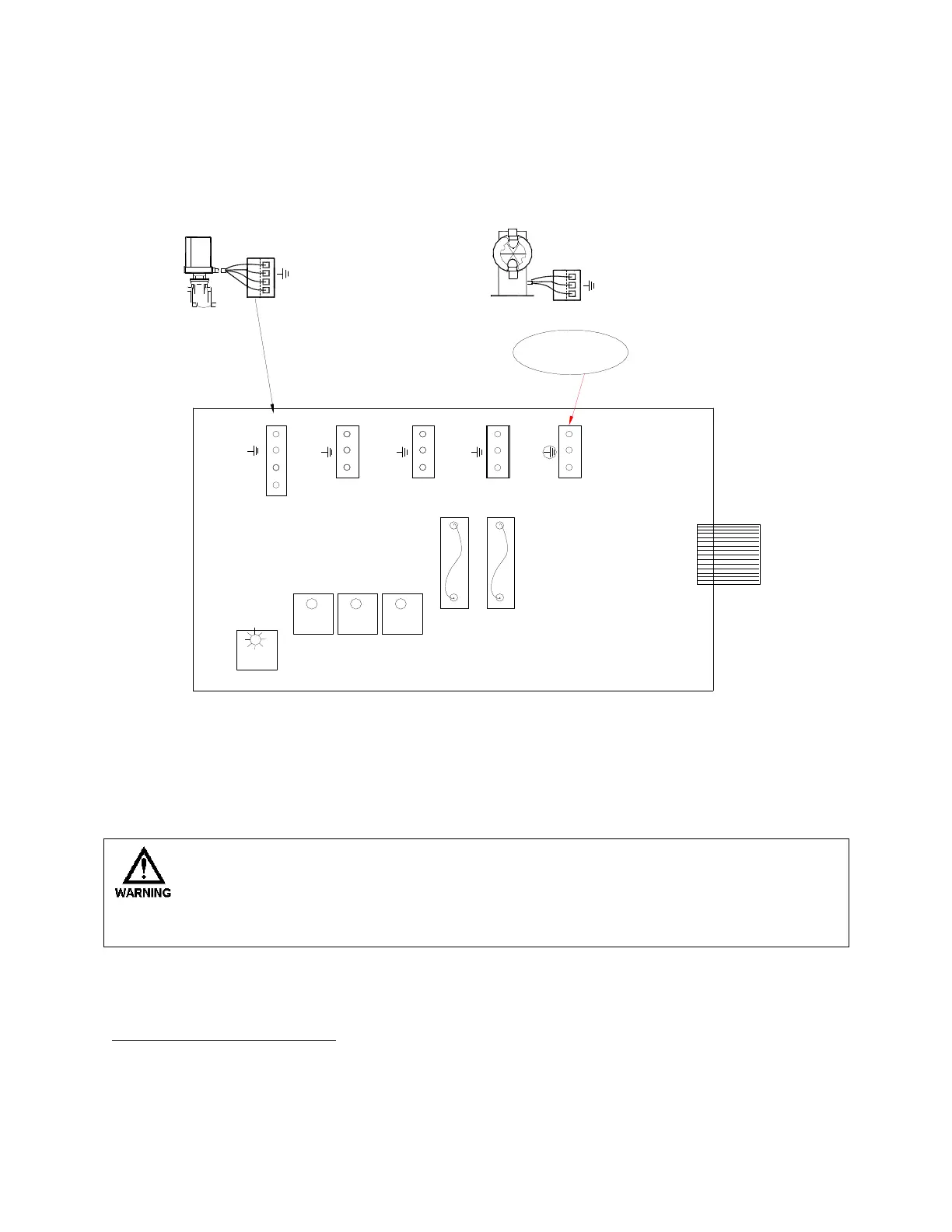

5.1 RELAY BOARD CONNECTIONS
3
HOT
RET
HOT
RET
AC POWER IN
MOTORIZED BALL VALVE
(4-WIRE)
PUMP
(3-WIRE)
(RETURN / NEUTRAL)
(EARTH / CHASSIS GROUND)
(NORMALLY / OPEN)
(RETURN / NEUTRAL)
(EARTH / CHASSIS GROUND)
(NORMALLY / OPEN)
(NORMALLY / CLOSED)
BLEED
INHIB
BIO A BIO B SUPPLY
BLEED
INHIB
BIO A BIO B
5A
F2
5A
F1
HOT
RET
HOT
RET
HOT
RET
HOT
RET
HOT
RET
HOT
RET
PL2 PL3 PL4 PL5
HOT
no
nc
Fig. 6
5.2 Conduit Models (Wiring High Voltage)
4
Devices attached to any Relay connection must be Single Phase and rated for
the same voltage as the input voltage to the product. (e. g. 120VAC MicroTrac
controllers support 120VAC relay attached devices exclusively and 220VAC
MicroTrac controller support 220VAC relay attached devices exclusively.)
Do not apply power until this condition is verified.
Conduit controllers have openings for conduit connections for hard wiring. See Fig. 6
for input and output power connections. Use only 18 AWG (1,2 mm²) stranded wire
3
Trained service personnel are required for all electrical connections. This product does not contain operator
serviceable parts.
4
Trained service personnel are required for all electrical connections. This product does not contain operator
serviceable parts.
