27
4. Remove the oil seal from the motor adapter. Lubricate the replacement seal with
PULSAlube 8G gear oil and install by pressing into position.
5. Reassemble by reversing the above disassembly procedure.
Use the following procedure to remove and replace the gearbox oil seal:
1. Drain the gearbox.
2. Remove the four gearbox bolts, and withdraw the gearbox from the eccentric box, sliding it
off the eccentric shaft.
3. Remove the seal.
4. Lubricate the replacement seal with PULSAlube 8G gear oil and install by pressing into
position.
5. Reinstall by reversing the disassembly procedure.
6. Refill the gearbox with PULSAlube 8G gear oil.
Use the following procedure to remove and replace the eccentric box seal:
1. Remove the gearbox.
2. Remove the four bolts that retain the eccentric side cap to the eccentric box.
3. Remove the eccentric side cap and withdraw the eccentric shaft.
4. Remove the seal.
5. Lubricate the replacement seal with PULSAlube 8G gear oil and install by pressing into
position.
6. Reinstall by reversing the disassembly procedure.
7. Refill the gearbox with PULSAlube 8G gear oil.
7.9 COVER ASSEMBLY
7.9.1 Removal & Reinstallation

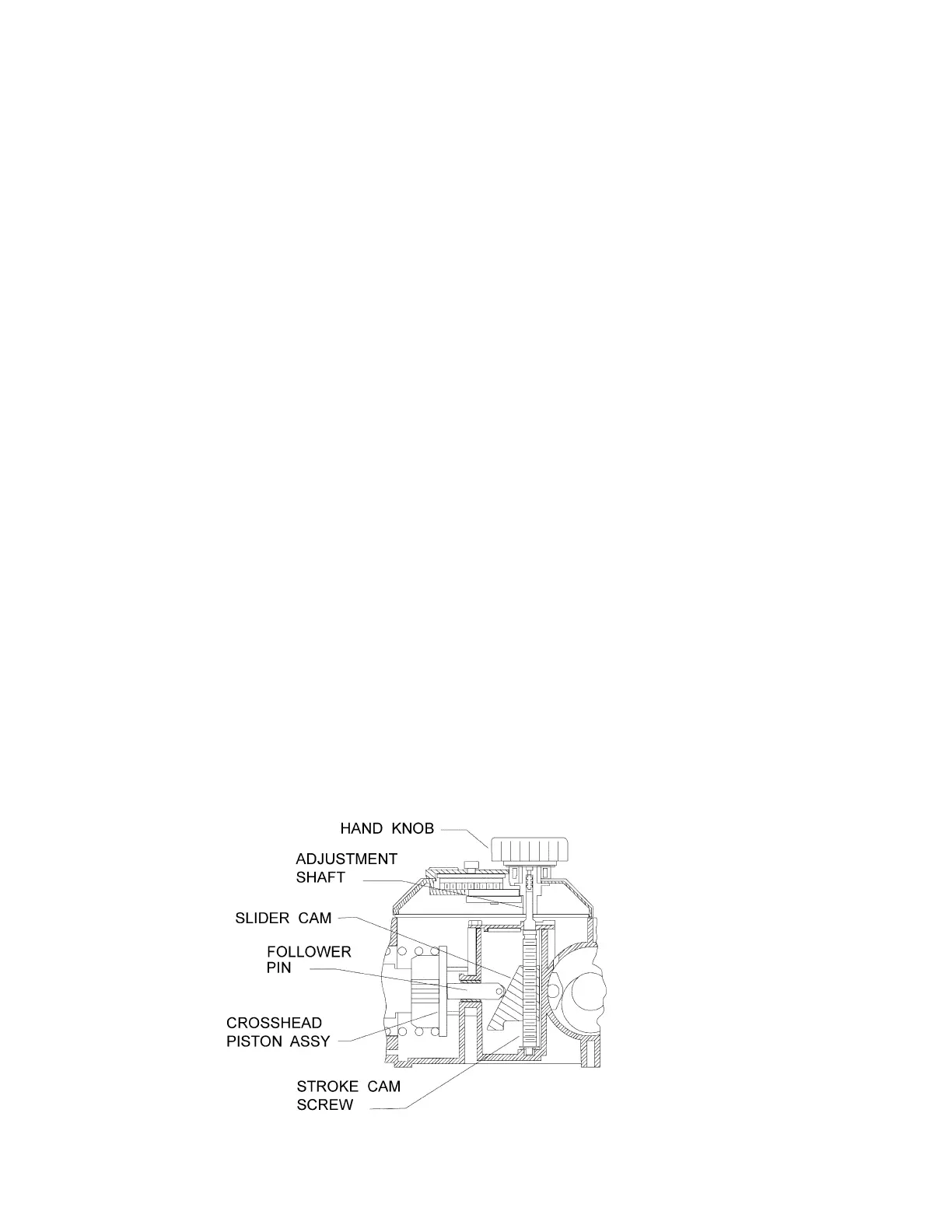

Figure 23
