Pulsar FlowCERT LITE User Manual

Page 55
Special Devices

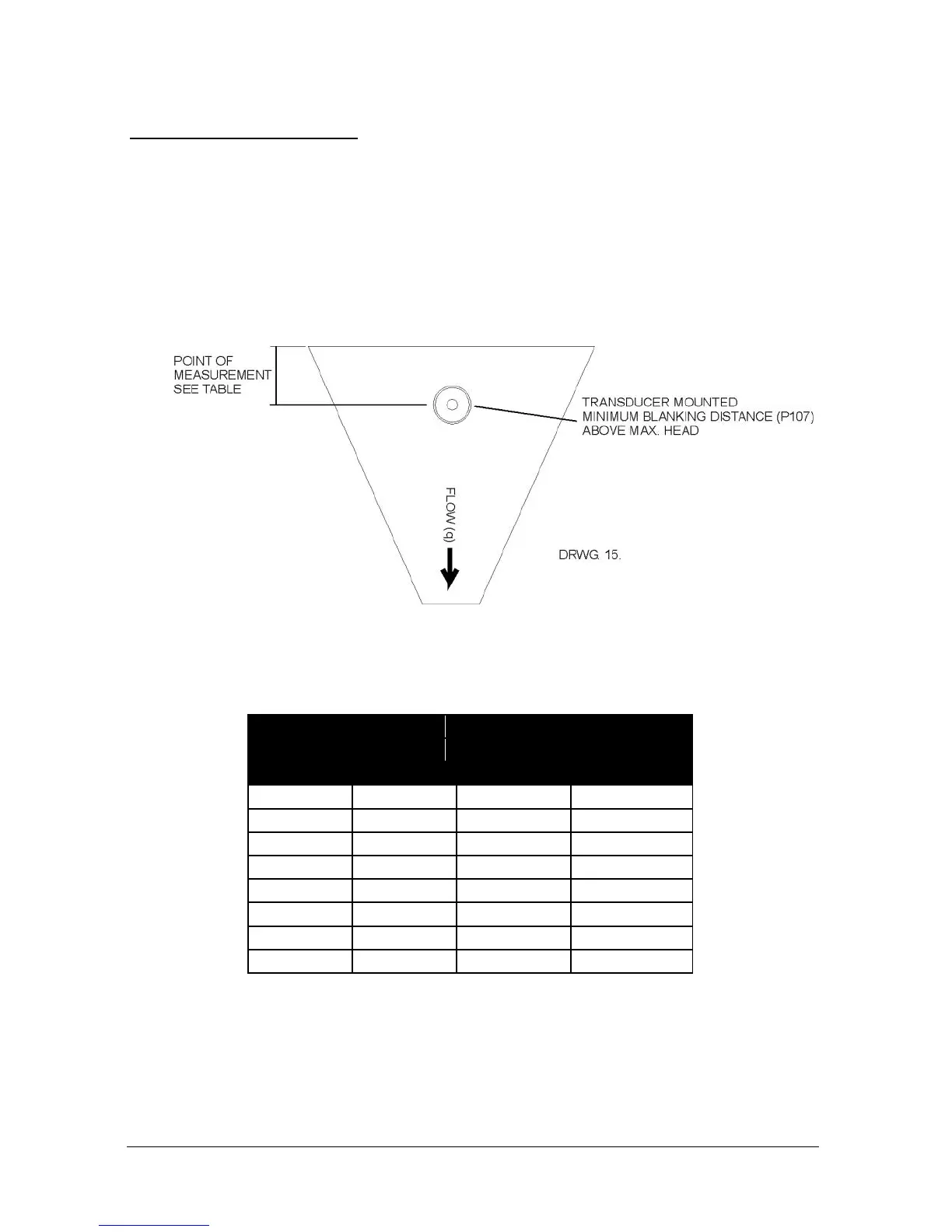

Point of Measurement
The transducer must be above the maximum head P704 by at least the near
blanking distance P107.
In the case of a Palmer Bowlus flume the point of head measurement
should be half the value of Dim “A” P710 upstream of the device.
For an H-Flume the head measurement is taken at a point downstream
from the flume entrance as detailed in the table below:
Flume size
Point of Measurement
Dim. “A” P710
cm
Feet
cm
inches
15.25
0.5
4.7
1.88
23.00
0.75
6.7
2.69
30.05
1.0
9.1
3.63
45.70
1.5
13.5
5.38
61.00
2.0
17.9
7.19
76.20
2.5
22.5
9.00
91.45
3.0
27.2
10.88
137.15
4.5
40.5
16.19
