Page 11
Cable Entry
There are 6 cable gland knock-outs on the base of the wall mount
FlowCERT Lite (5 x 0.79" (20mm), 1 x 0.63" (16mm)) and 4 on the rear (4
x 0.73" (18mm)). Select which ones you wish to use, and remove them by
using a circular cutter, such as a tank cutter. Take care not to damage the
circuit board inside while undertaking this. Do not use a hammer, as this
may cause damage to the enclosure.
It is recommended that you use suitable cable glands to ensure that the
ingress rating is maintained and that they be tightened to the manufacturers
recommended settings.
Important Information
All cable glands should be tightened to the manufacturer’s specifications.
The terminal compartment cover screws should be tightened to 1.48lb
in.(2Nm)
Care should be taken not to over tighten the screws.

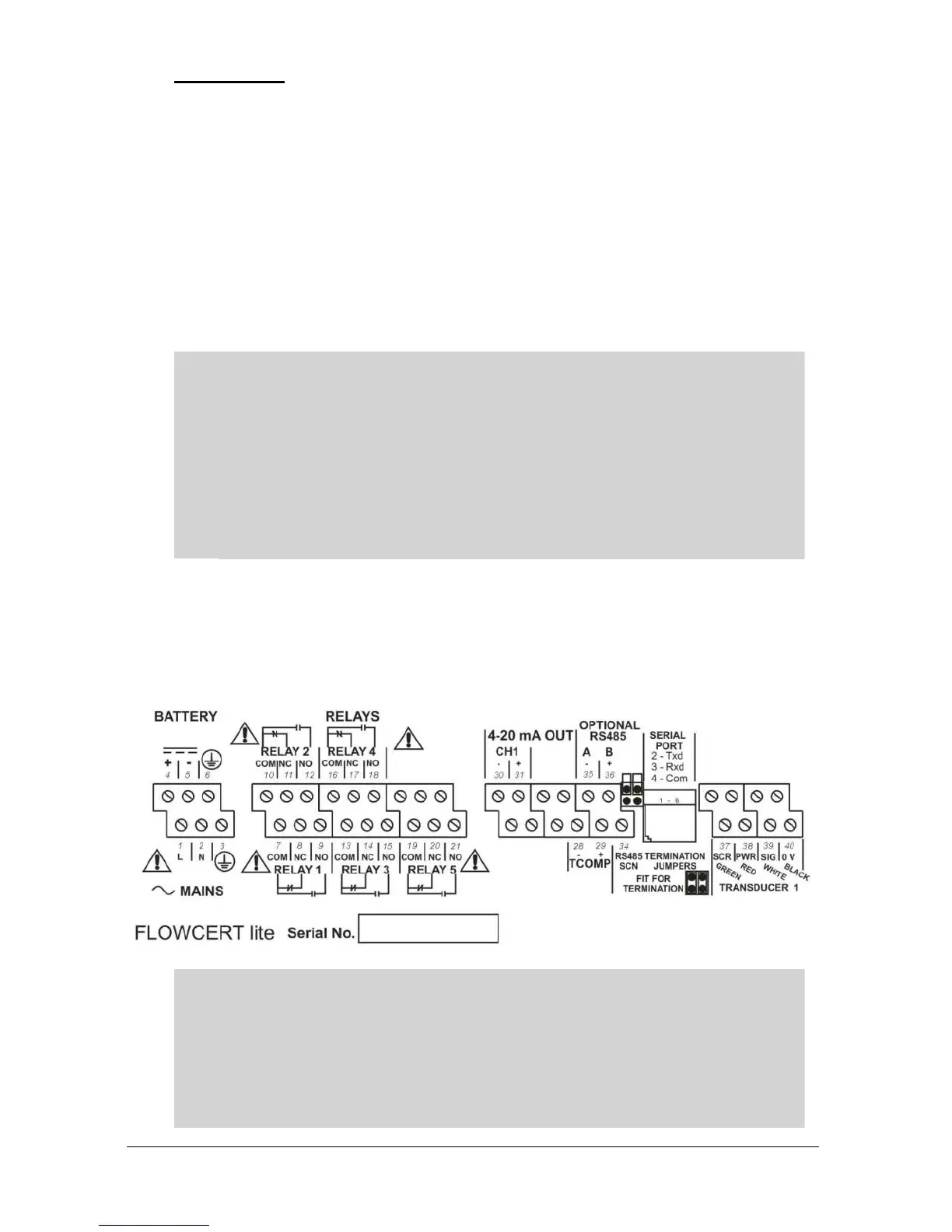

Terminal Connection Details
The terminal strip is as detailed below. There is also a wiring diagram inside
the terminals access cover.
Important Information
All terminal connection screws should be tightened to 4.5in.lbs.
(0.5Nm).
Care should be taken not to over tighten the screws.
