Pulsar ULTRA Series User Manual

Page 4

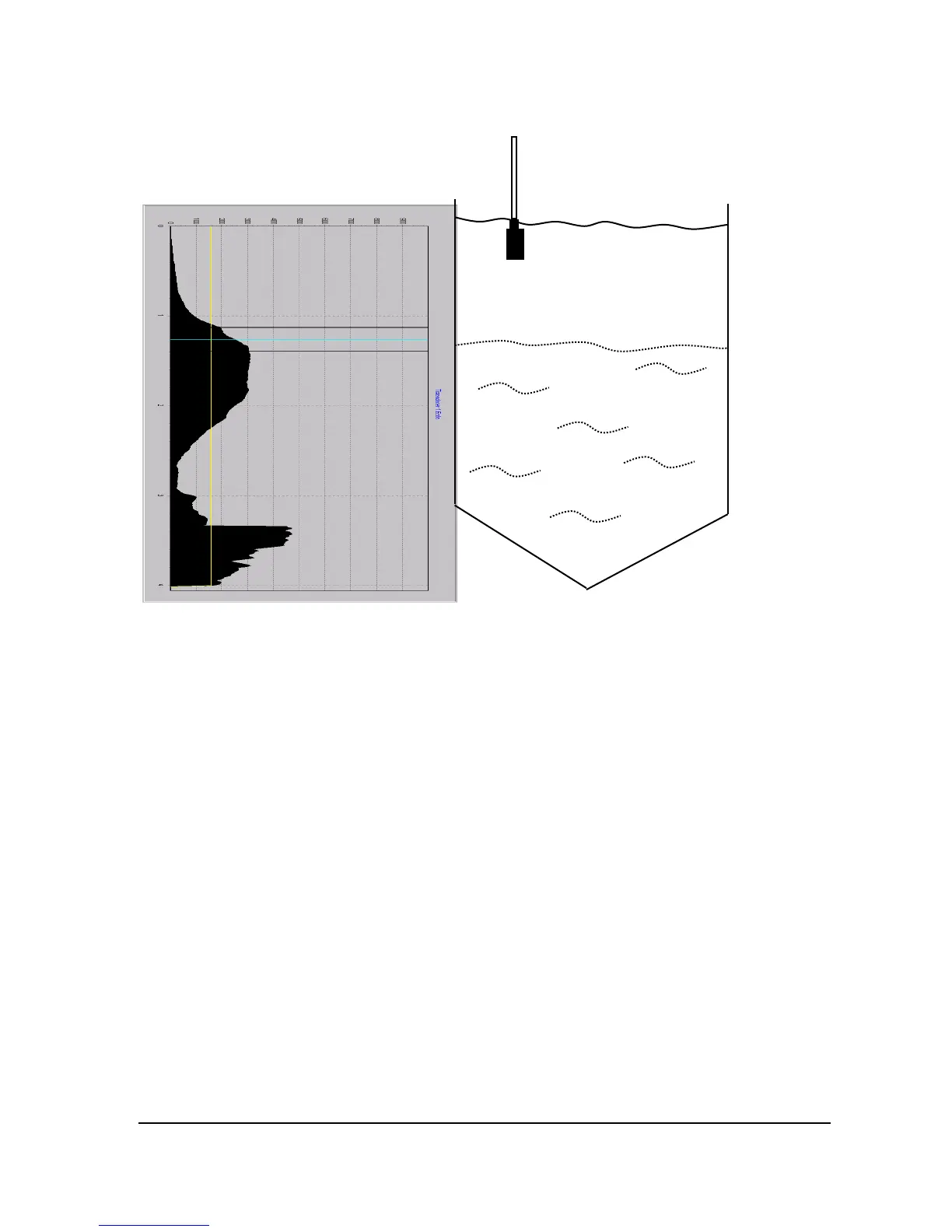

How to interpret the echo profile screen.
The first echo that is reflected back to the transducer is from the top of the sludge
blanket, the second echo with the sharper leading edge is the echo reflected back
from the bottom of the tank.

Pulsar ULTRA Series Specifications

General

Power Supply	12-30 V DC
Process Temperature	-40°C to +90°C (-40°F to +194°F)
Output	4-20mA, HART
Protection	IP68
Resolution	1 mm
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Dimensions	120 x 120 x 150 mm (aluminum), 120 x 120 x 150 mm (stainless steel)
