Page 15

P067 Choose Peak

1 = Area

2 = Largest

3 = First

4 = Last

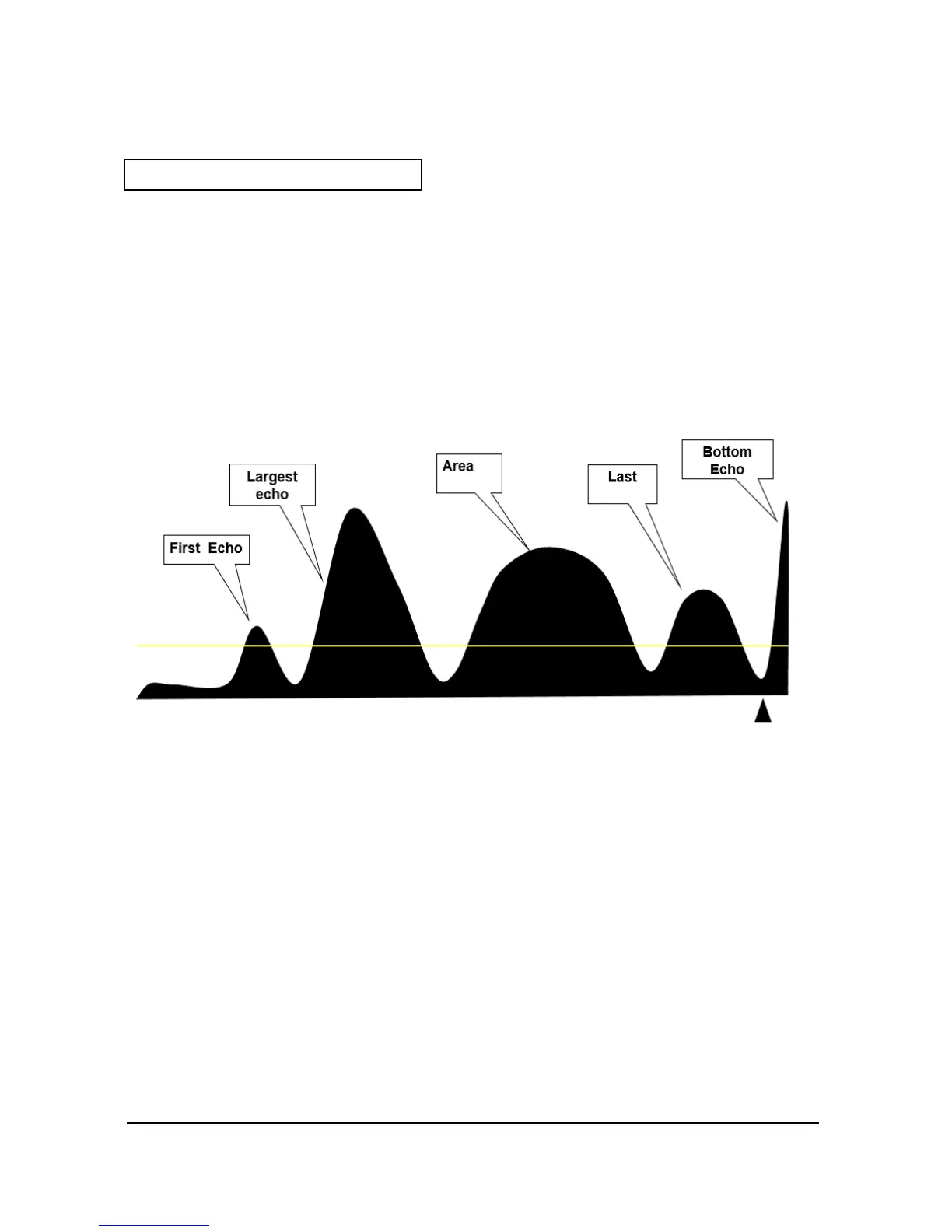

Example, in the example below the tank bottom is at 5.9m, therefore there are

three distinct echoes within the unit span.

Default = Transducer Dependant
