The Pulse-Eight neo:X+ Video Matrix (P8-HDBT2-U-FFMJ1210-KIT) is a flagship HDBaseT video matrix with an integrated audio matrix, designed for comprehensive home entertainment and control systems. It offers advanced video and audio routing capabilities, supporting high-resolution content and flexible control options.

Function Description:

The neo:X+ features 8 HDMI inputs, 8 HDBaseT outputs, and 2 HDMI outputs, allowing for extensive connectivity with various source and sink devices. It incorporates DSC (Display Stream Compression) technology, enabling the transmission of high-bandwidth video signals over long distances. The integrated audio matrix provides 10 audio output zones and 4 audio input zones, offering flexible audio routing independent of video.

Important Technical Specifications:

Video Transmission: Ultra HD 4K (up to 340Mhz), 1080p, 3D.
Resolution Support: 4K/60 4:4:4 8bit or 4K/60 4:2:2 12bit up to 100 meters, and 1080p up to 150 meters. All 4K formats up to 4:4:4 @ 60Hz, including 4:2:2 60Hz HDR 10, 720p, 1080i, 1080p (+3D).
HDMI Inputs: 8.
HDBaseT Outputs: 8 x HDBaseT Class C + DSC (Ultra) outputs.
HDMI Outputs: 2.
Audio Inputs: 4 zones (Optical Audio or Digital Coax).
Audio Outputs: 10 zones (Stereo L/R, Optical Audio or Digital Coax).
HDBaseT Cable Distance: 100* meters for 4K, 150* meters for 1080p (100 meters as standard). *4K up to 100 meters over Cat6 or 70 meters over Cat5e cable.
Recommended Cable: Cat5e or greater (Cat5e up to 70m for 4K. Cat6 or greater will achieve full rated distances). Copper Clad Aluminium (CCA) cables are not supported.
Colour Supported: 4K: 8bit, 1080p: 12bit.
TMDS Clock Speed: 600Mhz.
Max Bandwidth: 18Gbps.
Encryption: HDCP 1.4 and HDCP 2.2.
3D Supported: Up to 1080/24p - Frame packing/sequential (Blu-ray), Interlaced stereoscopic (satellite/cable broadcasts).
Supported Audio Formats: PCM 2.0, LPCM 2.0, LPCM 5.1, LPCM 6.1, LPCM 7.1, Dolby Digital 2.0, Dolby Digital 5.1, Dolby Digital EX 6.1, Dolby Digital Plus 7.1, Dolby TrueHD 5.1, Dolby TrueHD 7.1, Dolby Atmos 5.1.2, Dolby Atmos 5.1.4, Dolby Atmos 7.1.2, Dolby Atmos 7.1.4, Dolby Atmos 9.1.2, DTS 5.1, DTS-HD Master 5.1, DTS-HD Master 7.1, DTS 96/24 5.1, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1.
PoH (Power over HDBaseT): 8 x neo:Ultra PoH Receivers Included (Note: Certain Video Matrix packages might not come with PoH Receivers, check with sales/installer agents).
Infrared: Bi-Directional.
CEC Control: Full (libCEC for HDMI-CEC).
Voice Control: Amazon Alexa.
Set Top Box IP Control: Yes.
Monitoring: Real Time Remote Monitoring Portal.
ARC (Audio Return Channel): Yes.
DSC (Display Stream Compression): Yes.
Power Supply: 1 x IEC C14 Inlet - 100-240V 4.0/2.0A 50/60Hz.
Power Consumption: Max 2Amps @ 240V.
ESD Protection: 8kV (Air-gap discharge) ±4 kV (Contact discharge).
Surge Protection: IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 25A (8/20μς).
Material: Brushed Aluminium (Anodised).
Product Dimensions: 44 x 31.6 x 13.2 cm (Matrix).
Product Weight: 4.83 kg (Matrix).
Operating Temp Range: 0 to +35°C (32 to +95°F).
Operating Humidity Range: 5 to 90% RH (no condensation).
Manufactured In: Great Britain by Pulse-Eight.
Certification: UKCA, CE, FCC, RoHS.

Usage Features:

Installation: Designed for rack mounting (3U size) with supplied rack ears. Requires careful cabling with Cat5e/6/7 for HDBaseT and high-speed HDMI cables for direct connections.
Web Interface (WEB UI): User-friendly drag-and-drop interface for video and audio routing. Accessible via www.gotomymatrix.com or directly via IP address.
- Admin Rights: Activate administrative rights for full setup options, including input/output configuration, EDID management, and network settings.
- Video Routing: Assign HDMI inputs to HDBaseT or HDMI outputs.
- Audio Routing: Two modes:
  - Source Mode: Audio outputs mirror 1:1 the input ports, meaning audio does not switch with video. Provides fixed audio de-embedding from HDMI sources.
  - Sink Mode: Audio follows video routing, allowing independent audio control for each output zone. Features an audio locking feature for continuous audio regardless of video source switching.

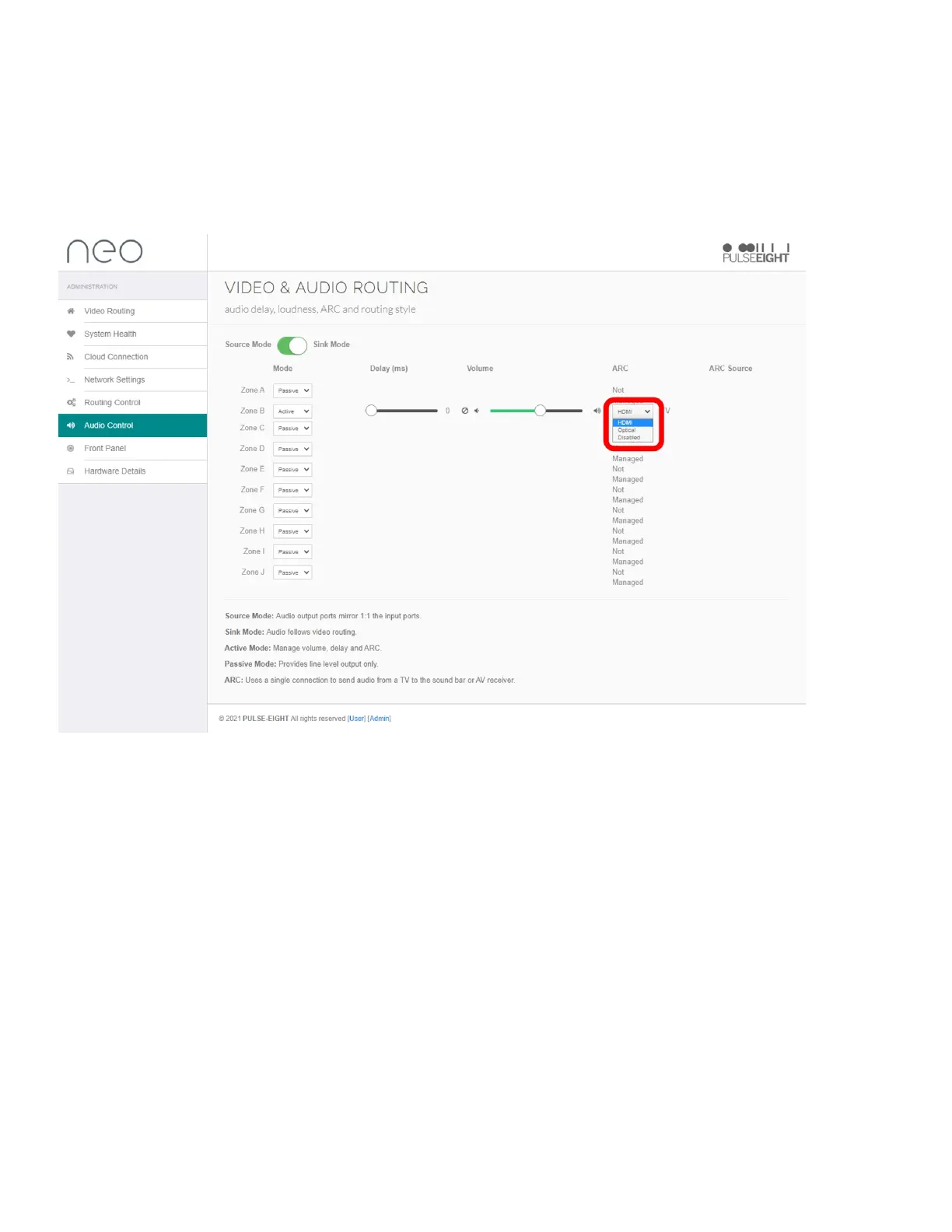

- Audio Control: Each audio output zone can be set to Active or Passive mode.
  - Active Mode: Enables Audio Delay (up to 340ms), Audio Volume adjustment, and ARC (Audio Return Channel) functionality. Used for controlling linked devices like ProAmp8.
  - Passive Mode: Provides a standard line-level output, with audio delay, volume, and ARC controlled externally by the amplifier.
- EDID Management: Contains presets (Dynamic, Clone Display X, HDR/UltraHD (4K)/1080p/720p) to ease setup and ensure compatibility between sources and displays.
- Set Top Box IP Control: Program IP control for compatible set-top boxes (Sky UK, TiVo/Virgin, Kodi, Dish, DirecTV) by entering their IP address.
- CEC Control: HDMI-CEC support with options for Auto Pause (pauses content when no sink device is watching) and Remote Control Combo Keys.
- IR Control: Bi-directional IR control with configurable IR profiles for each output port.
- Linked Device: Supports linking with ProAmp8 for volume control via the neo:X+ (through CEC) when in Sink Mode.
Remote Monitoring Portal: Access monitoring.pulse-eight.com to check system health, view last monitoring pulse, link to an installer account, and manage installations.
Alexa Voice Control: Integration with Amazon Alexa for voice control, set up via the Cloud Connection tab.
Driver Integration: Supports third-party control systems (Control4, Crestron, Elan, RTI, Savant, URC) with downloadable drivers from the monitoring portal.
Front Panel LEDs: System Health, Network, and Cloud LEDs indicate operational status (green for healthy, red for issues, flashing for updates/discovery).
HDBaseT LED Status: Yellow LED for video link, Green LED for power supply connection.

Maintenance Features:

System Health Tab: Provides information on hardware performance, internal temperature readings, and advanced diagnostics (IR Noise Test, HDBaseT Link Quality Test).
Firmware Updates: Regular firmware updates introduce new features, changes, and fixes to improve system stability and functionality.
Troubleshooting: Comprehensive guide for common issues like poor picture quality, IR control problems, EDID handshake failures, and audio issues.
Ventilation: Emphasizes the importance of proper ventilation and keeping the unit clean to prevent overheating and signal degradation. Avoid stacking audio and video matrixes.
Warranty: 3-year warranty for Audio/Video matrix and Amplified products (starts from installation date or date of sale). Accessory component warranties start from the date of purchase. Support is available via phone or support ticket. Advanced replacements and repairs are offered based on warranty status and product availability. Opening the product without consent invalidates the warranty.
