AUDIORETURNCHANNEL(ARC)

WhatisAudioReturnChannel(ARC)?

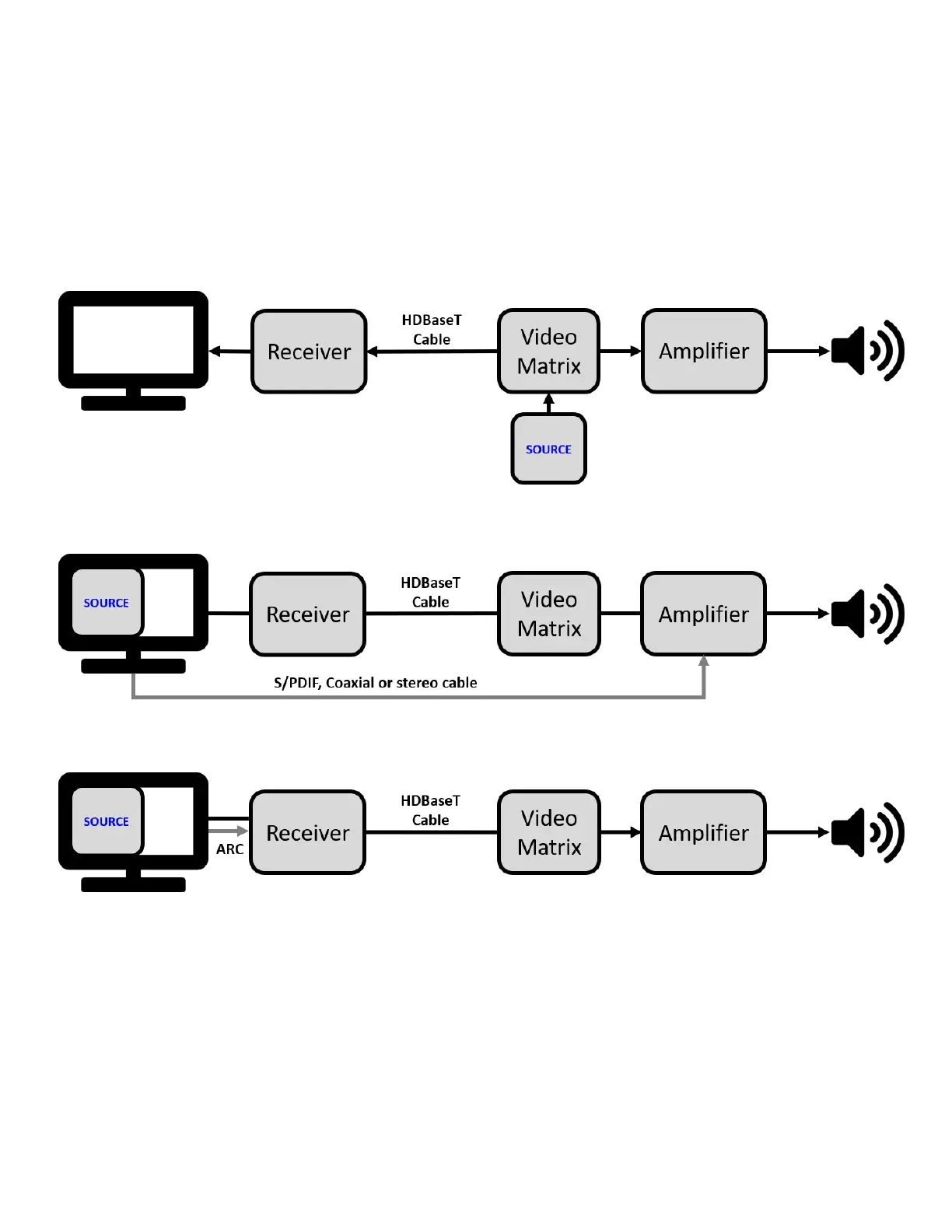

Fig1:Thisisatraditionalsetupintypicalhomeentertainmentwithasoundsystem.

Fig2:WiththeSmartTV,mostofthemediaboxesarebuilt-in,butwithoutARC,aS/PDIF,coaxialor

stereocableisneededtopushaudioouttotheamplifier.

Fig3:WithARC,theneedforadditionalcablesareeliminated.Theaudioisroutedbacktothevideo

matrixviaHDMIandthentotheamplifier.

Fig1:Standardtraditionalconfiguration.

Fig2:UsingSmartTVwithanS/DIFCable.

Fig3:UsingSmartTVwithARC.
