Puma 20 - Page 31

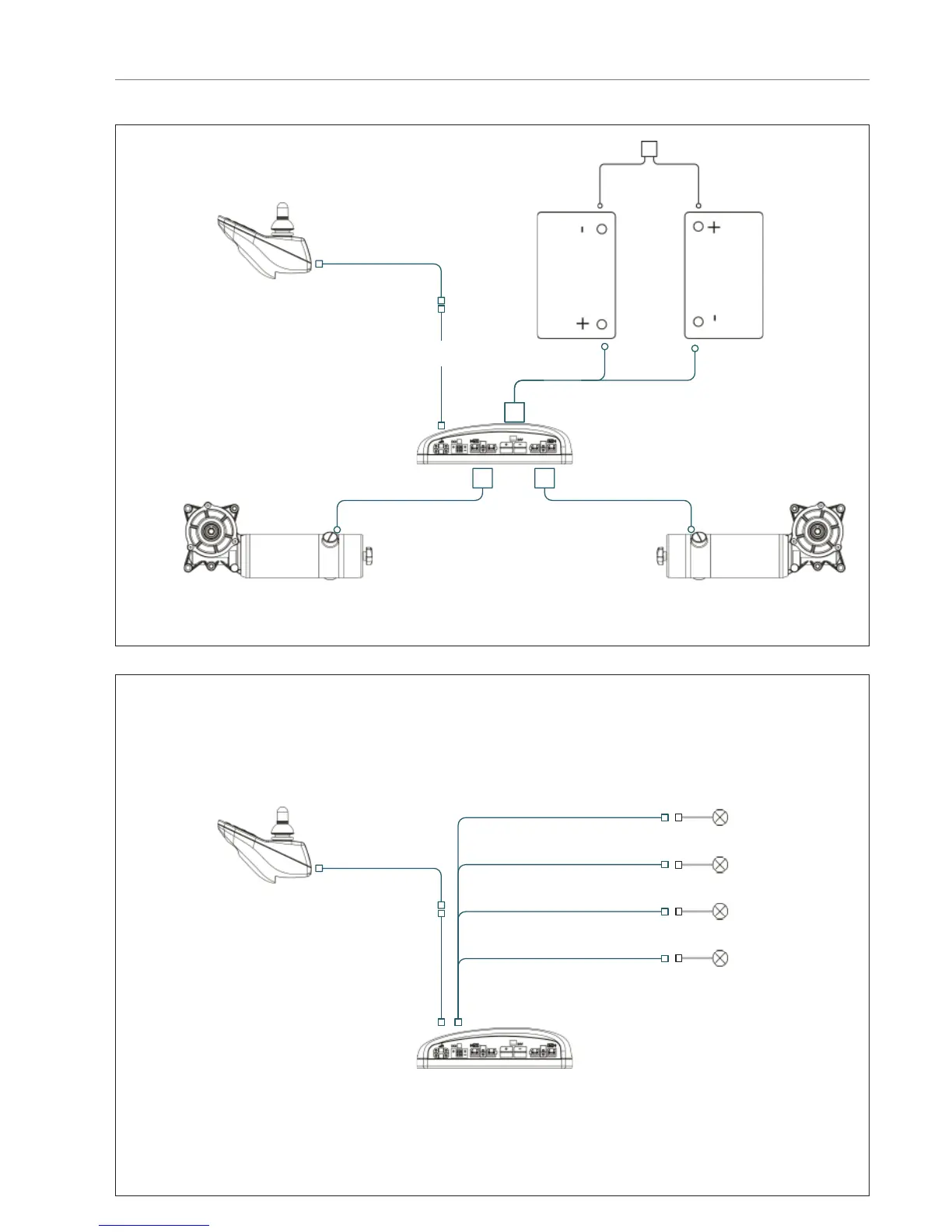

Electric diagrams Shark (1)
JSM
PM
FWD: 9006429 (0.9m)
RWD: 9006 430 (1.2m)
Shark Drive & Lights
1002945 (1.5m)
Cable lenghts are not drawn to scale
Lighting
9006302
6000038
6000039
6000038
6000039
Shark 2 Puma2040
JSM
Batteries
1x 70A
9006229
PM
9006231
FWD: 9006429 (0.9m)
RWD: 9006 430 (1.2m)
Motor Motor
Shark Battery & Motor connections (Drive only)
1002945 (1.5m)
Cable lenghts are not drawn to scale
Shark 1 Puma2040
Puma 20/40/60
Spare parts | 31
