Puma 20 - Page 32

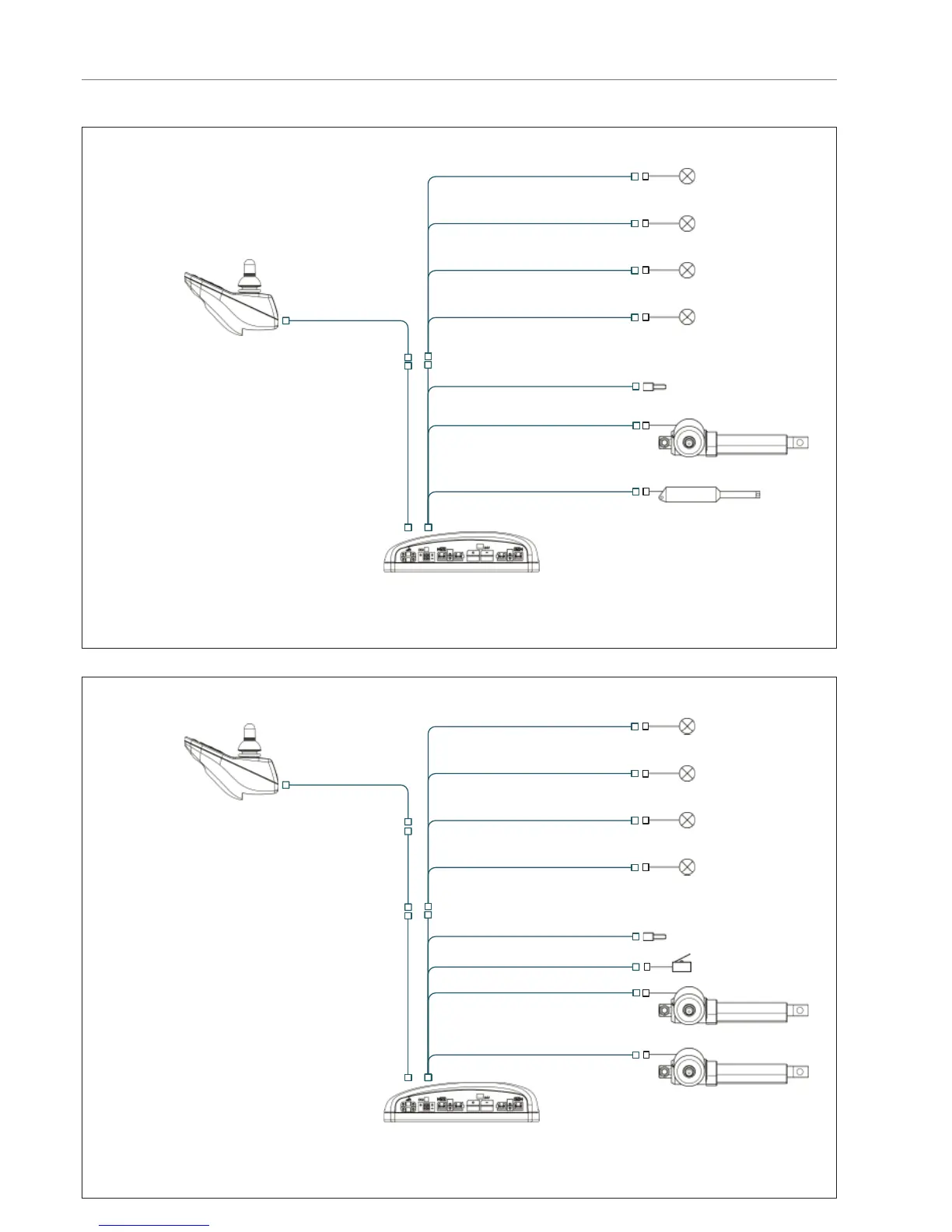

Electric diagrams Shark (2)
JSM
PM
FWD: 9006 431 (0.64m)
RWD: 9006 429 (0.90m)
Shark Lift & Tilt 45° (Lights optional)
1002945 (1.5m)
Cable lenghts are not drawn to scale
Lighting
9006298
6000038
6000039
6000038
6000039
Tilt 45°
FWD: 9006 304
RWD: 9006 305
9006430 (1.2m)
Lift
Inhibit Switch Lift
Loop
9006301
Shark 4 Puma2040
JSM
PM
FWD: 9006429 (0.9m)
RWD: 9006 430 (1.2m)
Shark Recline & Tilt (Lights optional)
1002945 (1.5m)
Cable lenghts are not drawn to scale
Lighting
9006298
6000038
6000039
6000038
6000039
Recline
Tilt
Loop
9006303
9006301
Shark 3 Puma2040
Puma 20/40/6032 | Spare parts
