Electric diagrams R-net (2)
Foot Plate
Elevation
Legrest Angle

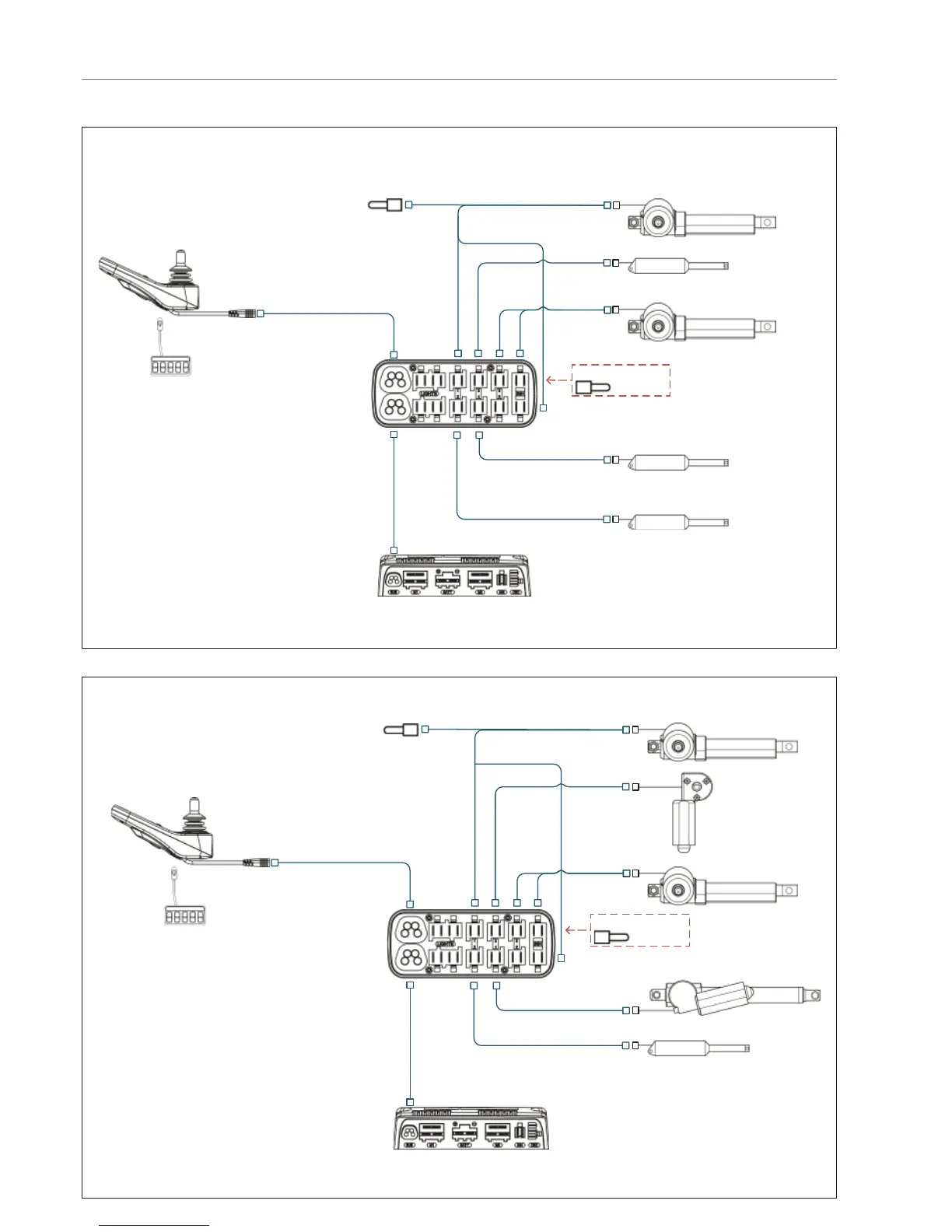

RNet Lift, Tilt, Recline & Central Legrest (Lights optional)
Cable lenghts are not drawn to scale
RNet 4 Puma2040
9002484 (1.5m)
9002482 (2m)
PM
JSM
ISM
Tilt 45°
Recline
Lift
9006330
9006323
9006319
9006319
9006319
FB-Term
9006301
FB-Term
9006327
No Lift
Direct Access
RNet Lift, Tilt, Recline & Legrests (Lights optional)
Cable lenghts are not drawn to sc ale
RNet 3 Puma2040
9002484 (1.5m)
9002482 (2m)
PM
JSM
ISM
Tilt 45°
Recline
Legrest Right
Legrest Left
Lift
9006330
9006323
9006319
9006319
9006319
FB-Term
9006301
FB-Term
9006327
No Lift
Direct Access
Puma 20/40/6036 | Spare parts
