Puma 20 - Page 44

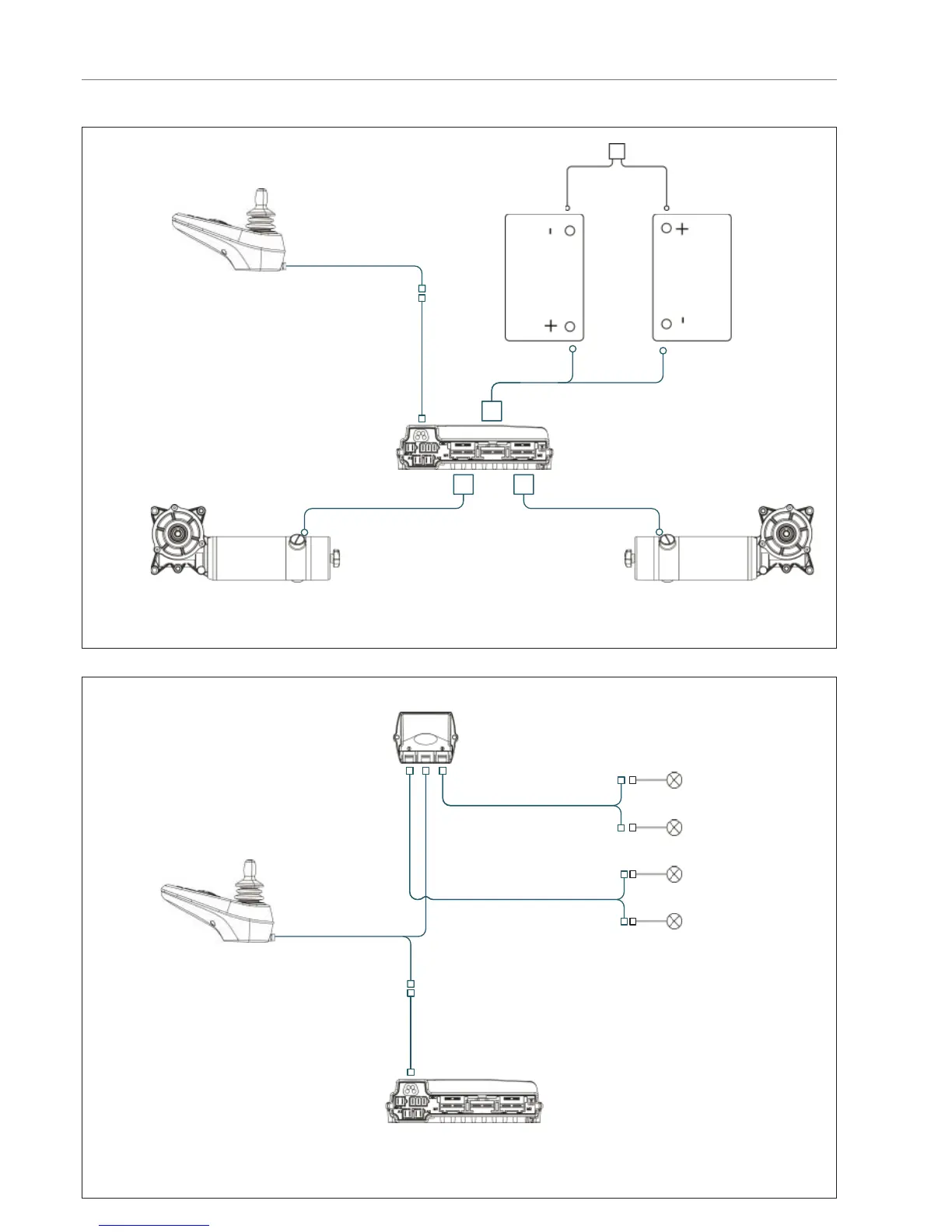

Electric diagrams VR-2 (1)
VR2 Drive & Lights
Cable lenghts are not drawn to scale
Lighting
6000038
6000039
6000038
6000039
VR2 2 Puma2040
PM
JSM
FWD: 9006853 (1.0m)
RWD: 9006 854 (1.5m)
LM
9006333
9006333
JSM
Batteries
1x 70A
9006229
9006228
Motor Motor
VR2 Battery & Motor connections (Drive only)
Cable lenghts are not drawn to scale
VR2 1 Puma2040
PM
FWD: 9006 853 (1.0m)
RWD: 9006 854 (1.5m)
Puma 20/40/6044 | Spare parts
