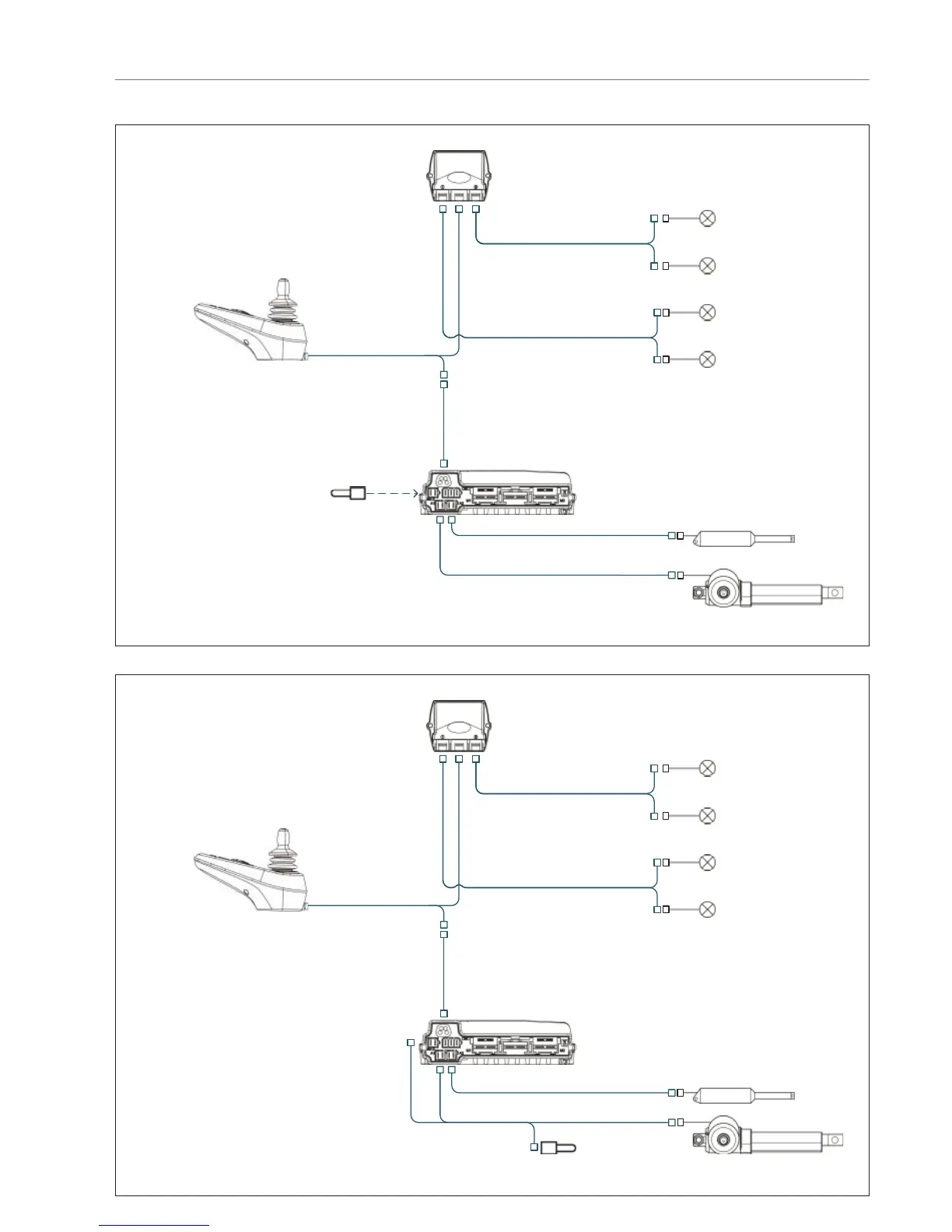

Electric diagrams VR-2 (2)
VR2 Recline & Tilt 45° (Lights optional)
Cable lenghts are not drawn to scale
VR2 4 Puma2040
Recline
Tilt 45°
Lighting
6000038
6000039
6000038
6000039
PM
JSM
FWD: 9006854 (1.5m)
RWD: 9006 855 (2.0m)
LM
9006333
9006333
9006321
FWD: 9006 323 / RWD: 90 06329
FB-Term
9006301
VR2 Recline & Tilt 25° (Lights optional)
Cable lenghts are not drawn to scale
Recline
Tilt 25°
VR2 3 Puma2040
Lighting
6000038
6000039
6000038
6000039
PM
JSM
FWD: 9006854 (1.5m)
RWD: 90 06 855 (2.0m)
LM
9006333
9006333
9006321
9006321
FB-Term
9006327
Puma 20/40/60
Spare parts | 45
