21
After cleaning, the order done in reverse is rstly the glass cover placed to channel from
the top. After, provide the establishment of glass spring with pushed it to the channel the
glass. After the installed of the glass bottom tabs will go down, achieve the progress by
leaving its own channel.

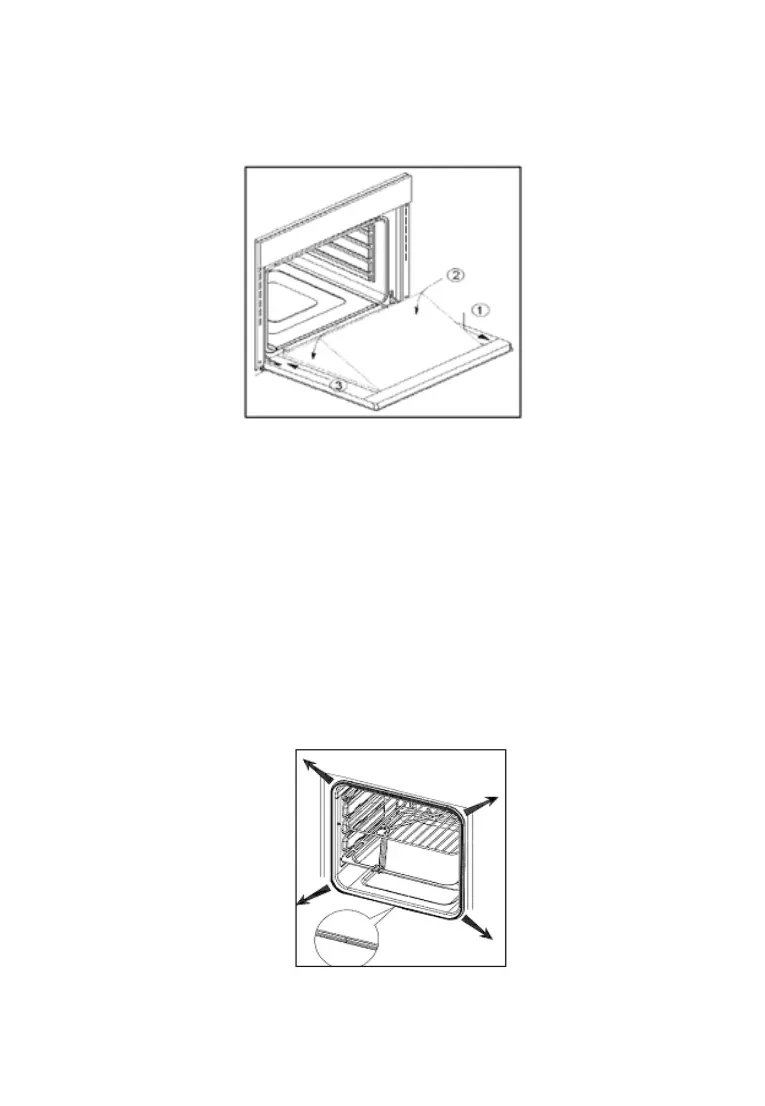

Figure 12
OVEN SEALING
Your oven has a sealing surrounding the inside edges which provides the oven to work
properly.
Check the state of the sealing periodically. If cleaning is necessary, avoid using
abrasives, corrosive detergents, bleaches or acids.
If the sealing is damaged, consult with your nearest authorized service provider in
your area. Do not use the oven until it is xed.
The changing procedure of the oven seal is as follows;
1. Open the oven door,
2. Remove the old sealing by pulling out the seal from corners one by one as shown
in (See Figure 13),
3. Four hooks are attached to the seal. Use these hooks to attach and then press in
the new seal.
Figure 13
