QD Dynamics Pi HSC816 - Expander Board Layout; Zone Wiring - Normal; Zone Wiring - Dual End-of-Line (Tamper)

Pi HSC816 Installation Manual - Revision Beta
This document and product are copyrighted and all rights are reserved.
8

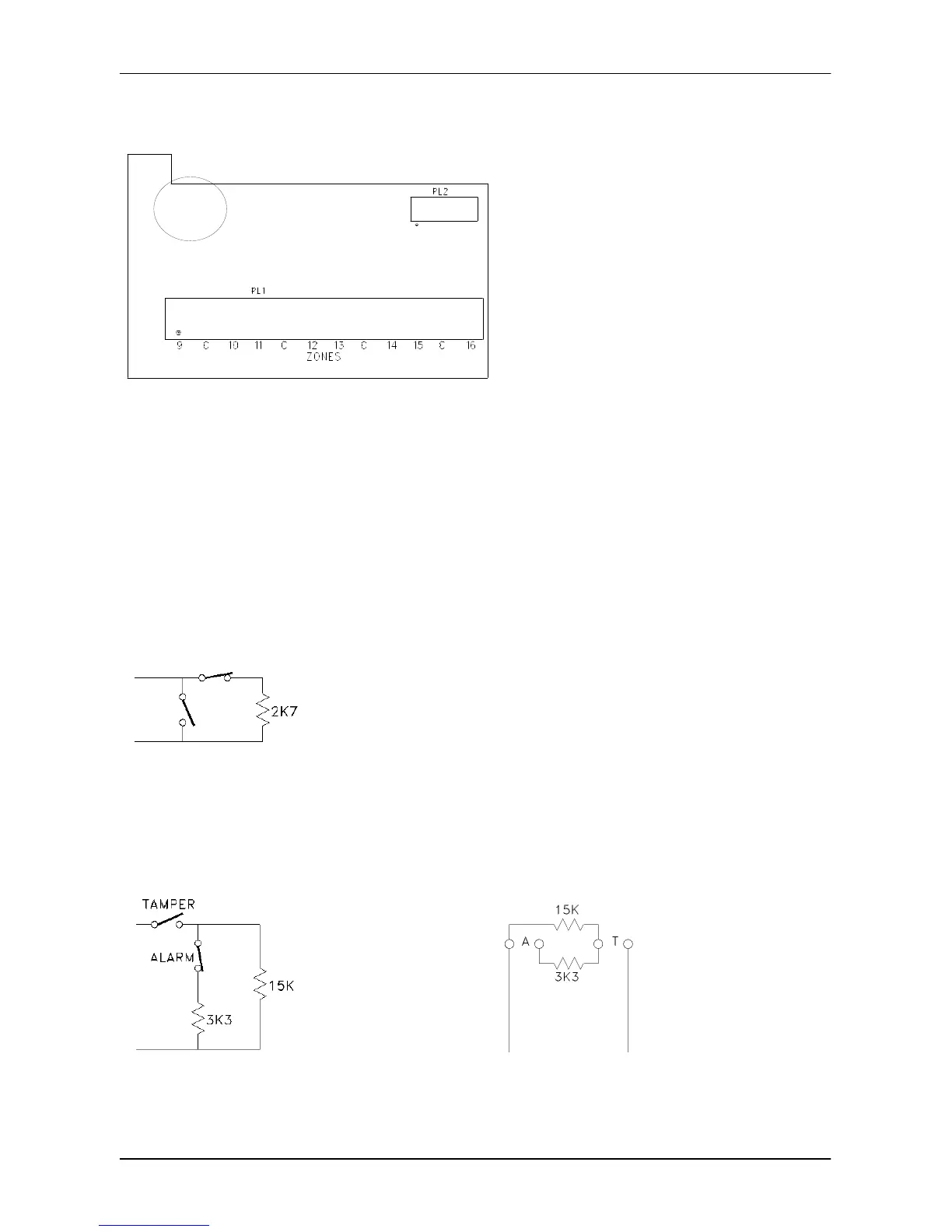

Expander board layout:
ZONE 9 .............. Zone 1 input EOL resistor 2K7
C ........................ Common
ZONE 10 ............ Zone 2 input EOL resistor 2K7
ZONE 11 ............ Zone 3 input EOL resistor 2K7
C ....................... Common
ZONE 12 ............ Zone 4 input EOL resistor 2K7
ZONE 13 ............ Zone 5 input EOL resistor 2K7
C ....................... Common
ZONE 14 ............ Zone 6 input EOL resistor 2K7
ZONE 15 ............ Zone 7 input EOL resistor 2K7
C ....................... Common
ZONE 16 ............ Zone 8 input EOL resistor 2K7
Zone wiring - normal:
Normally open detectors are connected in parallel with the end of line resistor.
Normally closed detectors are connected in series with the end of line resistor.
A combination of N/O and N/C may be used.
Zone wiring - dual end-of-line (Tamper)
Only normally closed switches may be used in this configuration.
The normally closed tamper is connected in series with the feed or return line.
