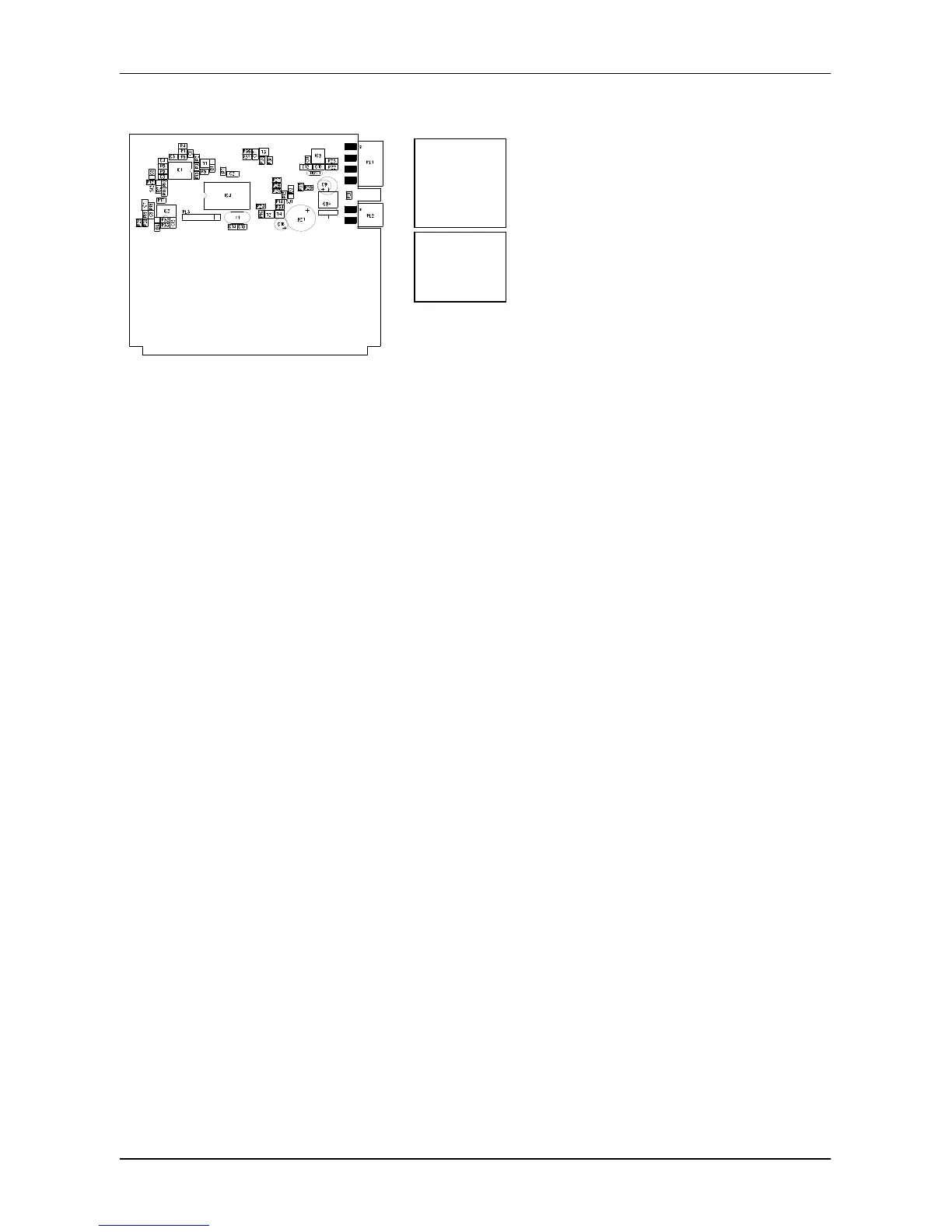

Keypad wiring: 4 wire bus line
O/P Indications (remote LED)
Off = system off.
On = system on.
Flashing = system alarmed.
Keypad LED indications:
Bank 1 led indicates zones 1 to 8. Bank 2 led indicates zones 9 to 16
Disarmed state:
Zone LED slow flash = Zone bypassed.
INST LED slow flash = Trouble condition. (Press *4 to view)
AC/LB LED on = Mains on battery ok, LED off = Mains off battery ok, LED flashing = Low battery state.
Bank 1 and bank 2 LEDS flash in conjunction with the following:
1) Led 1 fast flash = Panic Input triggered.
2) Led 2 fast flash = Keypad Panic triggered
3) Led 3 fast flash = Keypad Fire triggered.
4) Led 4 fast flash = Keypad Medical triggered.
5) Led 5 fast flash = Tamper Input triggered.
6) Led 6 fast flash = Siren Tamper condition.
Display and recall conditions:
Press the * key in conjunction with one of the following
1) Key 1 = Last to alarm condition
2) Key 2 = Last zone tamper
3) Key 3 = Reserved
4) Key 4 = Panel trouble conditions
5) Key 5 = Wireless zone number with a low battery condition
6) Key 6 = Wireless zone number that failed an auto test (supervision)
Panel trouble conditions (Indicated by a slow flashing Instant LED)
To view panel trouble conditions press *4. Flashing zone LEDs will indicate the following
1) LED 1 = Time and date not set
2) LED 2 = Telephone fail to communicate
3) LED 3 = Telephone line error
4) LED 4 = No function
5) LED 5 = No function
6) LED 6 = Siren tamper
7) LED 7 = Battery test fail
8) LED 8 = Zone Tamper (Press *2 to view zone number and clear condition)
9) LED 9 = Wireless low battery (Press *5 to view zone number)
10) LED 10 = Wireless zone supervision (Press *6 to view zone number)
11) LED 11 = Bus line expander communication error (Xmod)
12) LED 12 = Bus line receiver communication error.
13) LED 13 = Bus line transmitter communication error (Serial radio Tx)
