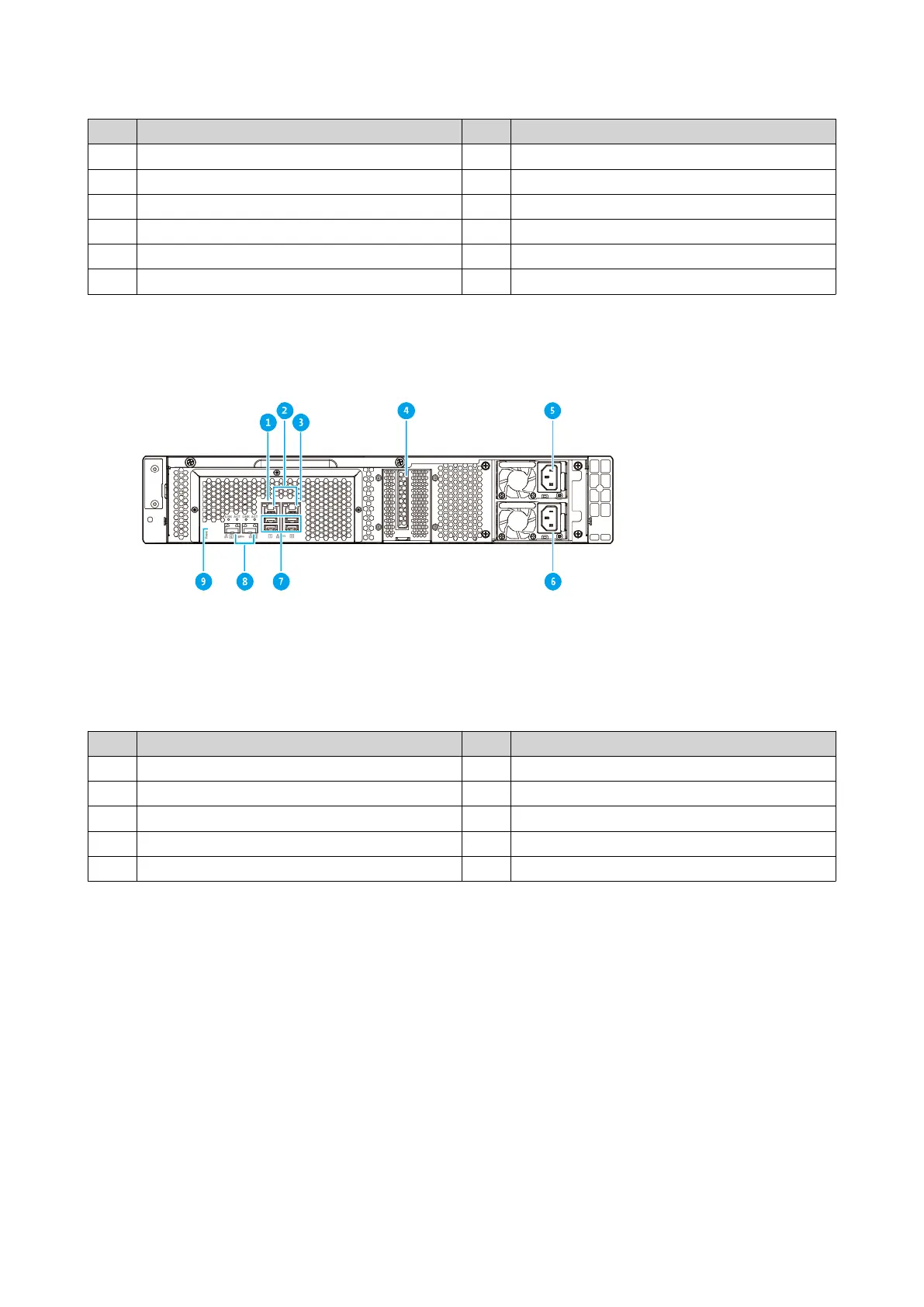

No. Component No. Component
1 10 Gigabit Ethernet SFP+ link LED 7 Power supply unit 1
2 10 Gigabit Ethernet SFP+ activity LED 8 Power supply unit 2
3 2.5 Gigabit Ethernet speed LED 9 USB 3.2 Gen 1 Type-A ports
4 2.5 Gigabit Ethernet ports 10 10 Gigabit Ethernet SFP+ ports
5 2.5 Gigabit Ethernet activity LED 11 Reset button
6 PCIe slot - -
TS-832PXU, TS-832PXU-RP, TS-1232PXU-RP
No. Component No. Component
1 2.5 Gigabit Ethernet speed LED 6 Power supply unit 2
2 2.5 Gigabit Ethernet ports 7 USB 3.2 Gen 1 Type-A ports
3 2.5 Gigabit Ethernet activity LED 8 10 Gigabit Ethernet SFP+ ports
4 PCIe low-profile cover 9 Reset button
5 Power supply unit 1 - -
TS-x32PXU User Guide
Product Overview 10
