1. Power o the NAS.
2. Disconnect the power cord from the electrical outlet.
3. Disconnect all cables and external attachments.
4. Remove the front cover.

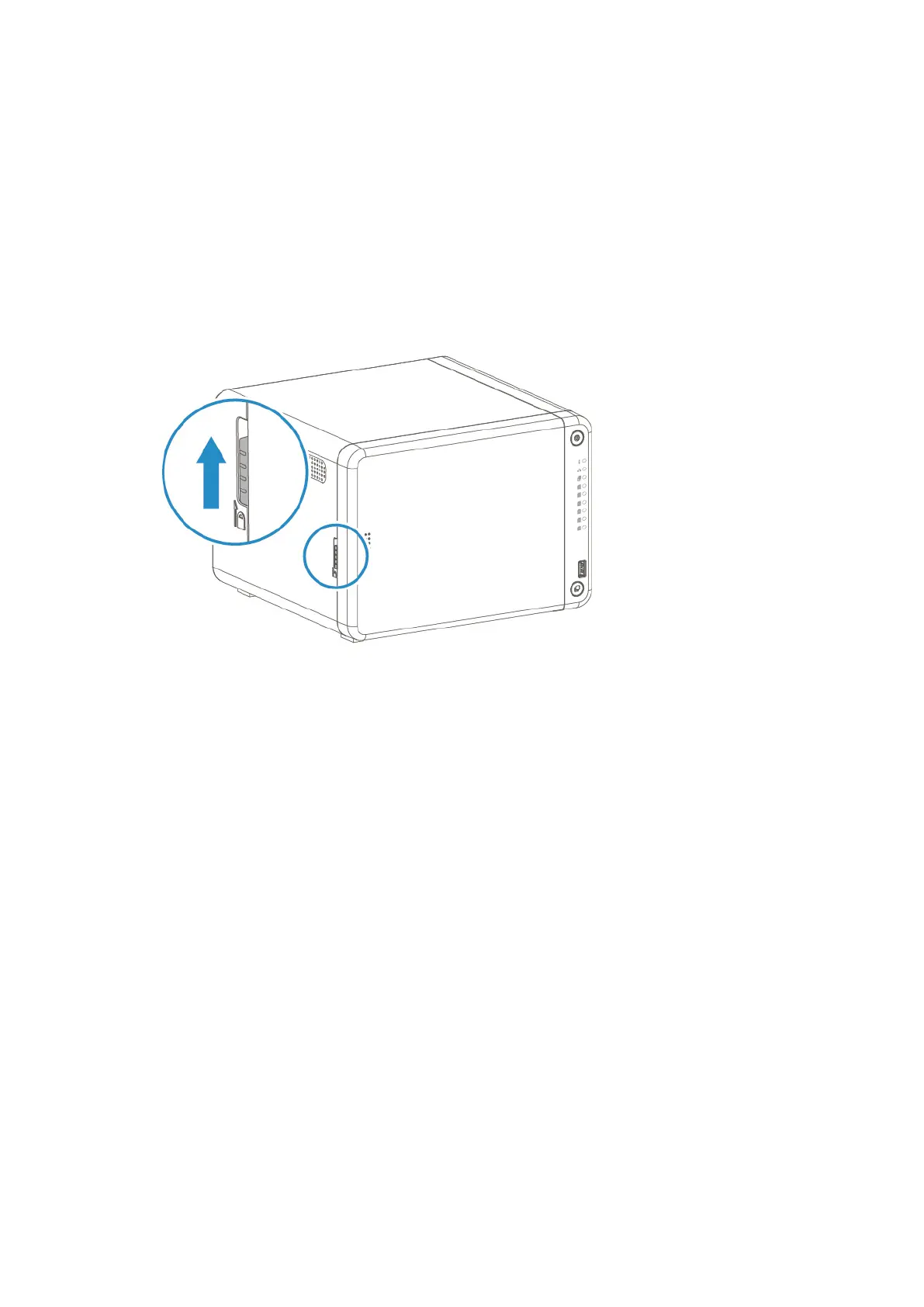

a. Locate the locking mechanism on the left side of the NAS.
b. Slide the lock up to release the front cover.
c. Slide the front cover to the left and then pull.
TS-x62, TS-x64 User Guide
Installation and Conguration 28
