d.
Verify that the br
acket does not move.
7.

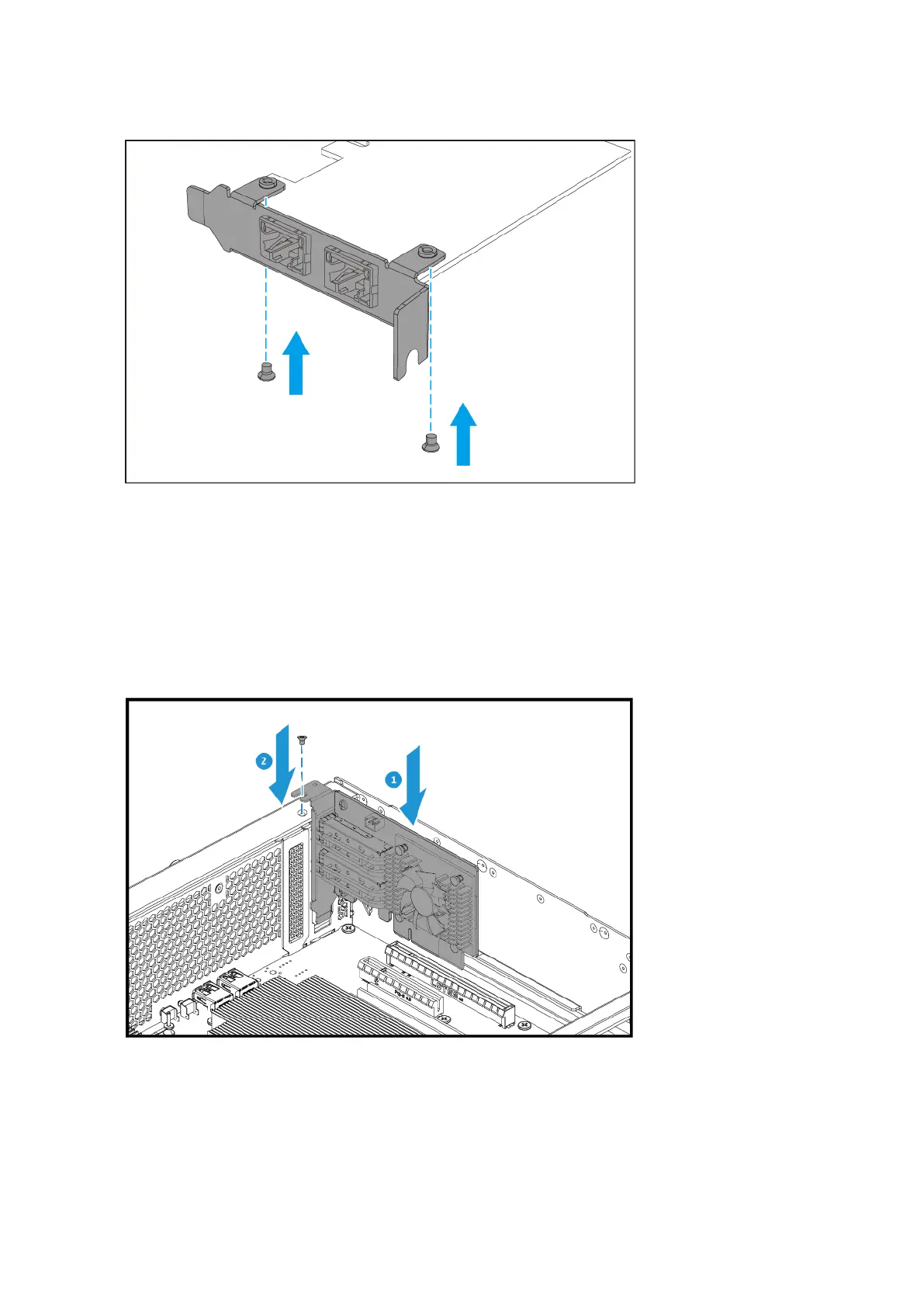

Install the expansion card.
a.
Hold the card by the edges.
b.
Insert the card into the slot.
c.
Attach the screw
.
8.
Attach the case cover
.
a.
Place the cover on the device.
b.
Push the device into the chassis.
TS-hx90FU User Guide
Installation and
Conguration
33
33
35
Table of Contents
Table of Contents
2
Product Overview
4
About the TS-Hx90Fu
4
Hardware Specifications
4
Package Contents
7
Components
8
Front Panel
8
Rear Panel
9
System Board
11
Drive Numbering
14
Safety Information
14
Installation Requirements
16
Setting up the NAS
16
Installation and Configuration
18
Hardware Installation
18
Installing 2.5-Inch Solid-State Drives on 2.5-Inch Trays
18
Replacing Memory Modules on the TS-H2490Fu
22
Replacing Memory Modules on the TS-H1090Fu
27
Replacing Expansion Cards on the TS-H2490Fu
31
Installing Expansion Cards on the TS-H1090Fu
35
Hot-Swapping Redundant Power Supply Units
41
Expansion Unit Installation
43
Installing Handles
47
Rail Kits
49
Quts Hero Installation
49
Installing Quts Hero Using Qfinder Pro
49
Installing Quts Hero Using the Cloud Key
51
Basic Operations
54
Power Button
54
Reset Button
55
Leds
55
Audio Alert
57
NAS Migration
59
NAS Migration Requirements
59
Status and Setting Changes after NAS Migration
59
Migrating a NAS
60
Troubleshooting
62
Forcing Qfinder Pro or Myqnapcloud to Locate the NAS
62
Hot-Swapping Failed Drives
62
Recovering Unintentionally Removed Healthy Drives
63
Support and Other Resources
63
Glossary
64
Cloud Key
64
Myqnapcloud
64
Myqnapcloud Link
64
Qfinder Pro
64
Quts Hero
64
Notices
65
Limited Warranty
65
Disclaimer
65
GNU Public License
65
CE Notice
73
UKCA Notice
73
FCC Notice
73
VCCI Notice
74
BSMI Notice
74
Sj/T 11364-2006
74
