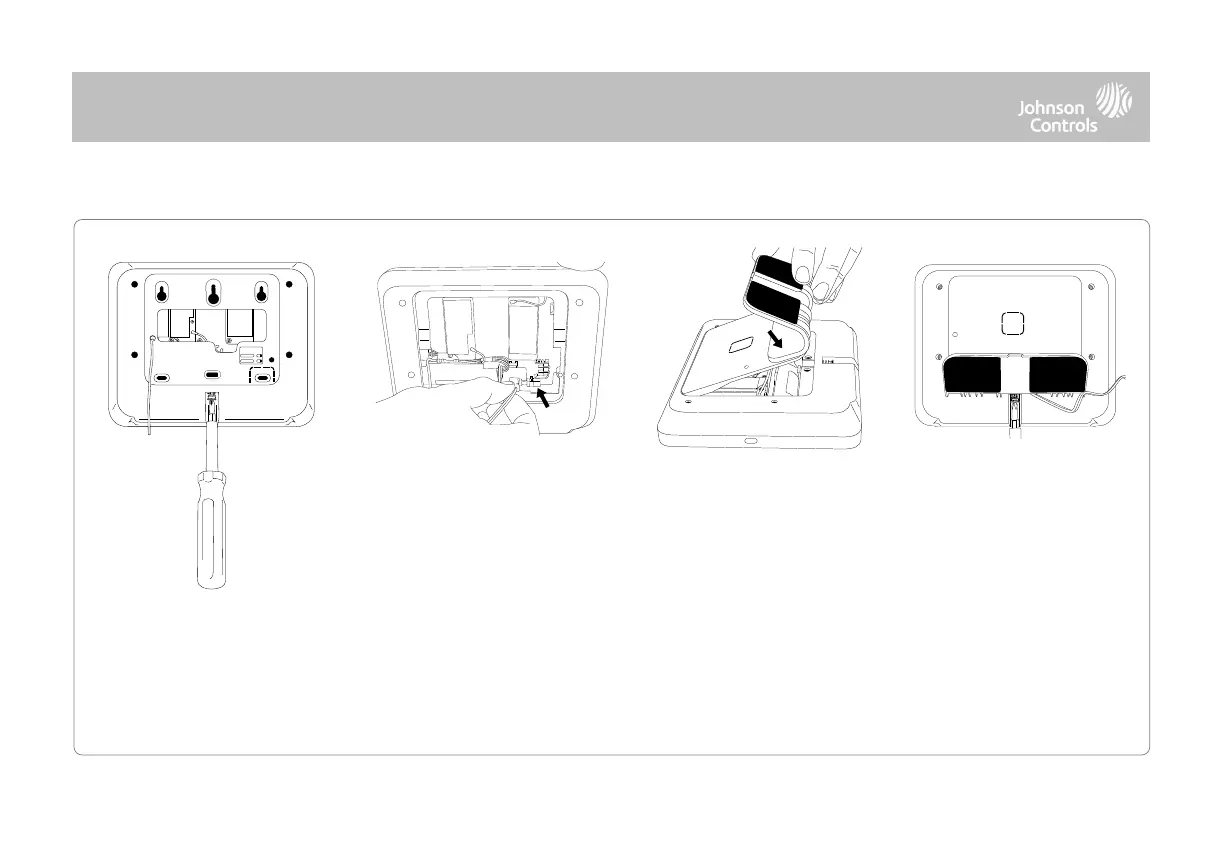

1. With the included power
supply and cable, plug the
barrel connector into the
barrel jack as shown above.
Be sure the barrel connector
is properly seated.
1. Locate the SmartMount
table stand and insert the
hooks into the back of the
panel, then swing down
and press into place.
Be sure that the power
wire is routed out the
middle of the table stand
using the provided slot.
QOLSYS CONFIDENTIAL AND PROPRIETARY
PAGE OF 10 197
1. With a small phillips
screwdriver, screw in the
locking screw from the
bottom of the panel to
secure it to the table stand.
1. With a small phillips
screwdriver, undo the locking
screw from the back of the
panel, remove the SmartMount
backplate and discard.
Do not use for UL2610 or EN Grade 2 or equivalent installations
