FX Processors – Dense Reverb
The Dense Reverb (presets with a “D” suffix) is a model of a DSP reverb with more dense reflections that some may find
more representative of actual acoustic spaces.
Home
FX Masters
Select FX
Channel
FX
Dense Reverb
Eect
FX Masters
FX 1
Select
Dense Reverb
Select
Effect

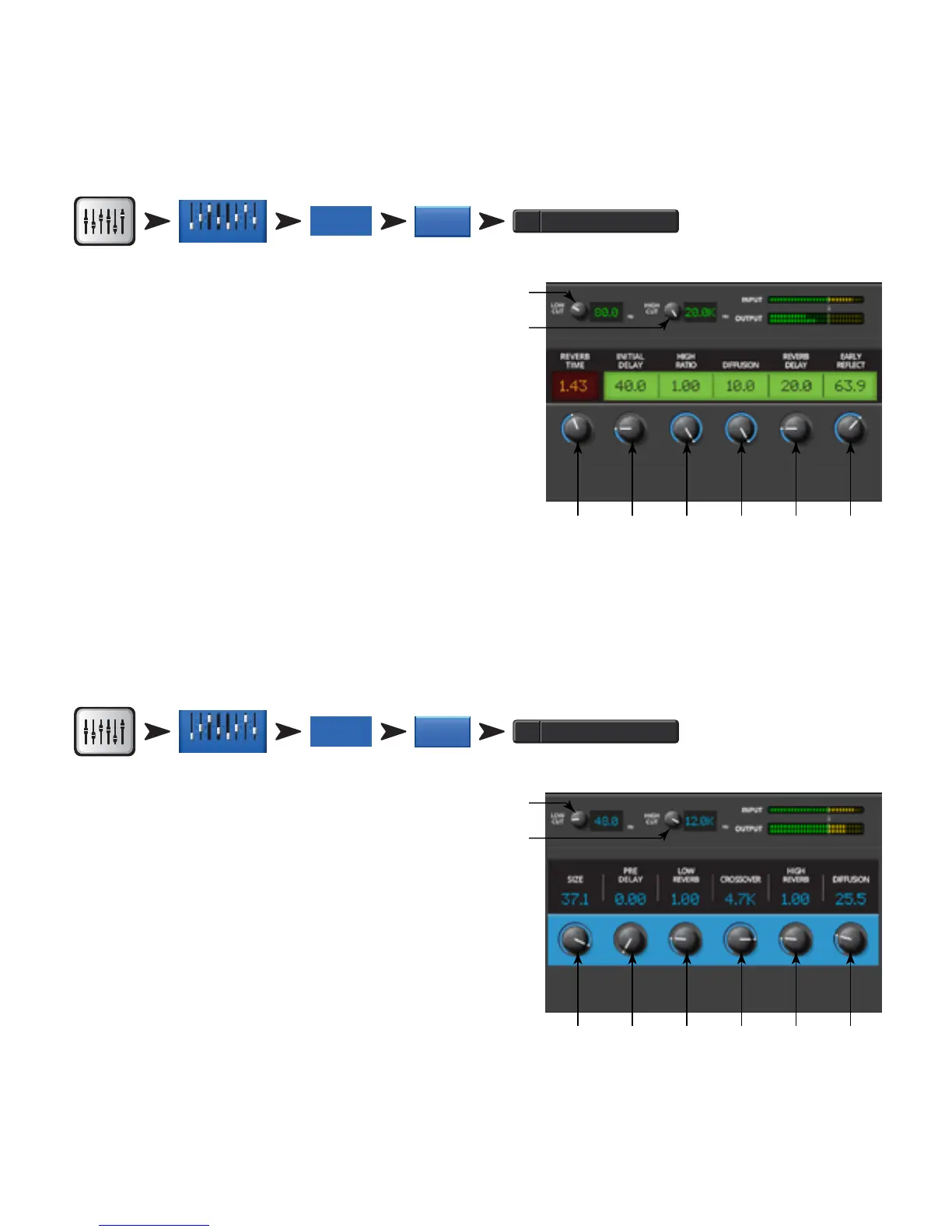

Refer to — Figure 73
1.
Lo Cut Knob – Attenuates, or “cuts” frequencies below this frequency
setting. Range is to 20 Hz to 2 kHz.
2. Hi Cut Knob – Attenuates, or “cuts” frequencies above this frequency
setting. Range is 200 Hz to 20 kHz.
3. Reverb Time Knob – Reverb Time (RT) is the length of time required for
the reverberation to drop by 60 dB.
4. Initial Delay Knob – Sets the time interval between input signal and
first reflection.
5. High Ratio Knob – Changes the amount of high frequency reflections.
6. Diffusion Knob – Controls the density of groups of Early Reflections. Or
Simulates the complexity of surfaces off which the sound reflects.
7. Reverb Delay Knob – Changes the delay between reflections.
8. Early Reflections Knob – Changes the amplitude of the early reflections.
FX Processors – Lush Reverb
Lush Reverb (presets with an “L” suffix) is a model of a DSP reverb with a more “lush” character.
Home
FX Masters
Select FX
Channel
FX
Lush Reverb
Eect
FX Masters
FX 1
Select
Lush Reverb
Select
Effect
Refer to — Figure 49
1.
Lo Cut Knob – Attenuates, or “cuts” frequencies below this frequency
setting. Range is 20 Hz to 2 kHz.
2. Hi Cut Knob – Attenuates, or “cuts” frequencies above this frequency
setting. Range is 200 Hz to 20 kHz.
3.
Size Knob – The longest dimension of the simulated acoustic space
in meters.
4. Pre Delay Knob – Sets the time interval between input signal and
first reflection
5. Low Reverb Knob – Adjusts the reverb decay time for frequencies below
the crossover frequency.
6. Crossover Knob – Sets the crossover point for the Low Reverb Time and
the High Reverb Time.
7. High Reverb Knob – Adjusts the reverb decay time for frequencies above
the crossover frequency.
8. Diffusion Knob – Adjusts the early reflections to simulate a more complex or less complex reflective acoustic surface.
— Figure 48 —
1
2
3 4 5 86 7
— Figure 49 —
1
2
3 4 5 86 7
