2-Channel − Playback and Record
The Main L/R, Aux 7/8, or 9/10 can be recorded then played back over the Main L/R Outputs.
Press
Home
Stereo In/2-Trk
2-Trk PB or 2-Trk Rec
Select the
2-Trk Bank
Touch the
Select Button

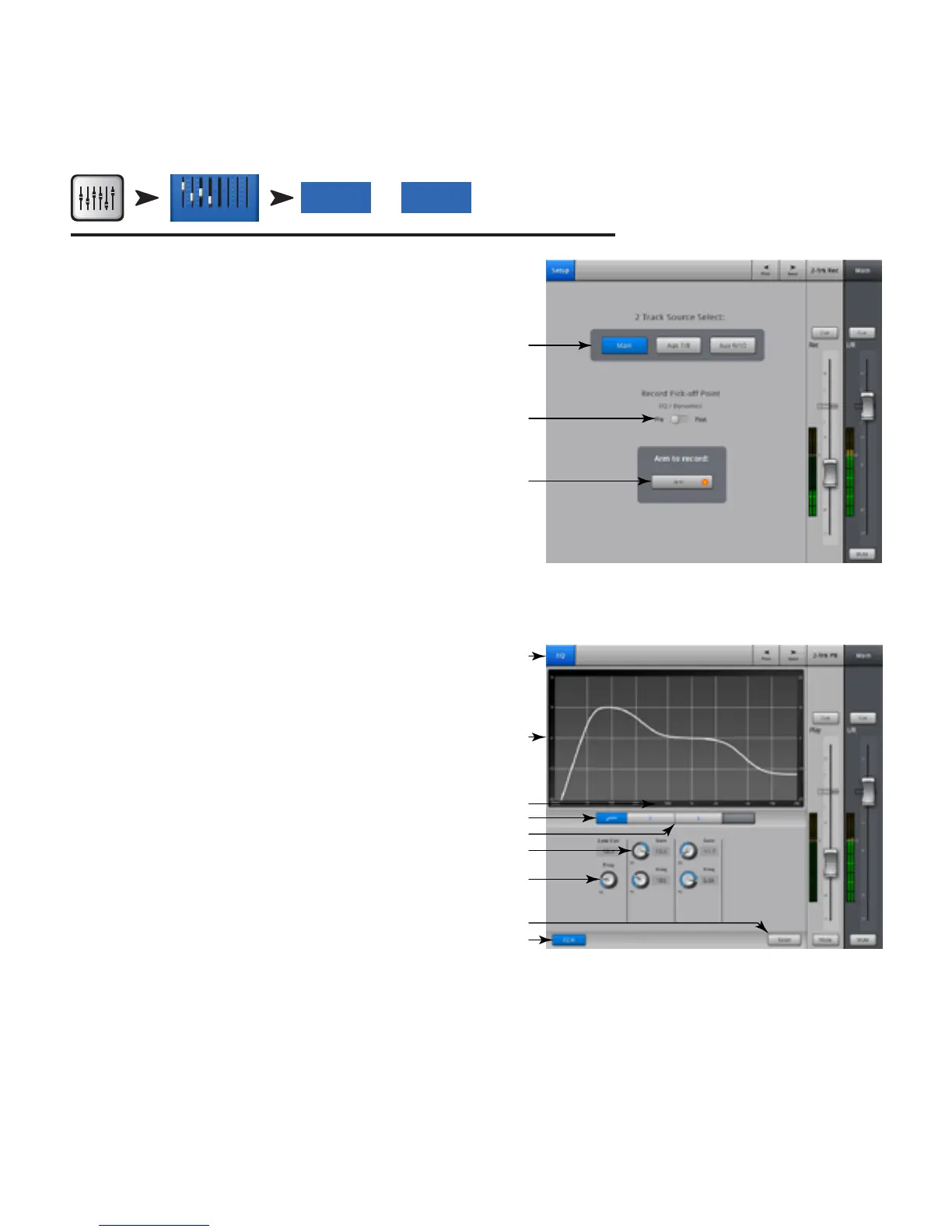

2-Track Recording Setup
Refer to — Figure 69
1. Source Select Buttons – Select the source for 2-Track recording. Main
L/R, Aux 7/8 or Aux 9/10. (TouchMix-8 only Main L/R)
2. Record Pick-off Point Switch – Determines if the recorded audio is
affected by the channel EQ and Dynamics (Post), or is not affected by the
channel EQ and Dynamics (Pre).
3. Arm to record Button – When engaged, the source channels you
selected are recorded when recording begins. This button is also available
on the Record/Play screen.
2-Track Playback EQ
Refer to — Figure 70
1. EQ In Button – Engages the equalizer.
2. Low Cut Button – Engages / disengages the filter. This filter cuts
frequencies below the frequency set by the Freq control.
3. High and Low Shelf Filter (1, 2) Buttons – Engages / disengages the
associated Shelf Filter.
4. Gain Knob – Adjusts the gain of the associated EQ band over a range of -15
dB to +15 dB.
5. Frequency Knob – Sets the center, or shelving, frequency of the
associated EQ band.
6. Reset Button – Sets all the EQ controls to their factory default position.
7. EQ Graph – A graphic representation of the EQ settings.
— Figure 69 —
3
1
2
— Figure 70 —
5
1
3
2
4
6
7
