Q24/Q48 Tape Library Installation and Operations Manual

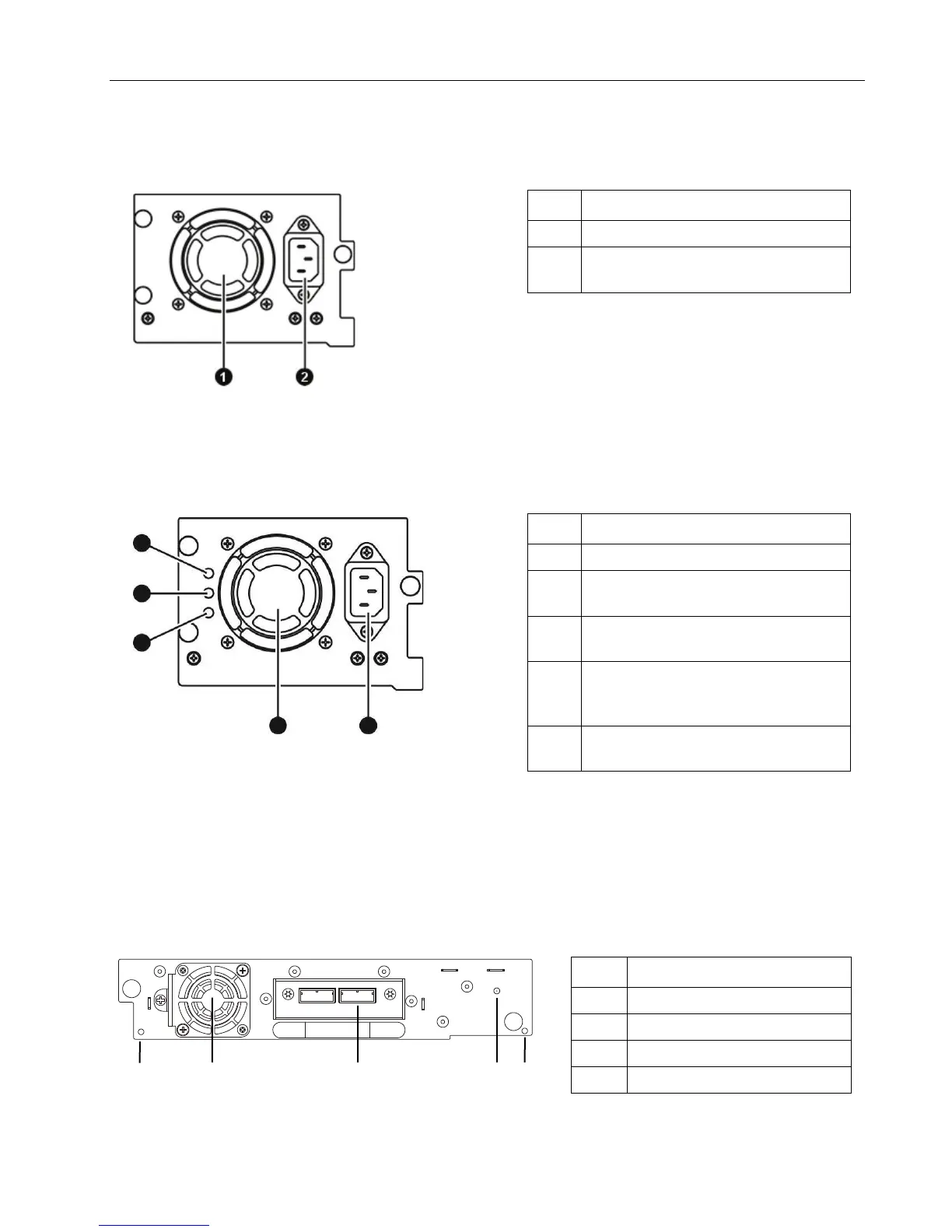

1.3.1 Q24 Power supply
Ref.
Description
1
Fan vent
2
Power connector
110/220 V AC power connection.
Figure 3 Q24 Power supply
1.3.2 Q48 Power supply
Ref.
Description
1
Fan vent
2
Power connector
110/220 V AC power connection.
3
LED (blue) is illuminated when AC power
is connected.
4
LED (amber) is illuminate when a fan
failure occurs. The fan is running to slow
or defective.
5
LED (green) is illuminated when power is
good.
Figure 4 Q48 Power supply
1.3.3 Tape drives
SAS connectors for both LTO Generations
Ref.
Description
1
Magazine release holes
2
Fan vent
3
SAS connectors
4
Tape drive LED
Figure 5 SAS half-height tape drive





1
2
5
4
3
© Copyright QUALSTAR 2015 6
