Hardware
Quantum DXi6900 User’s Guide 171

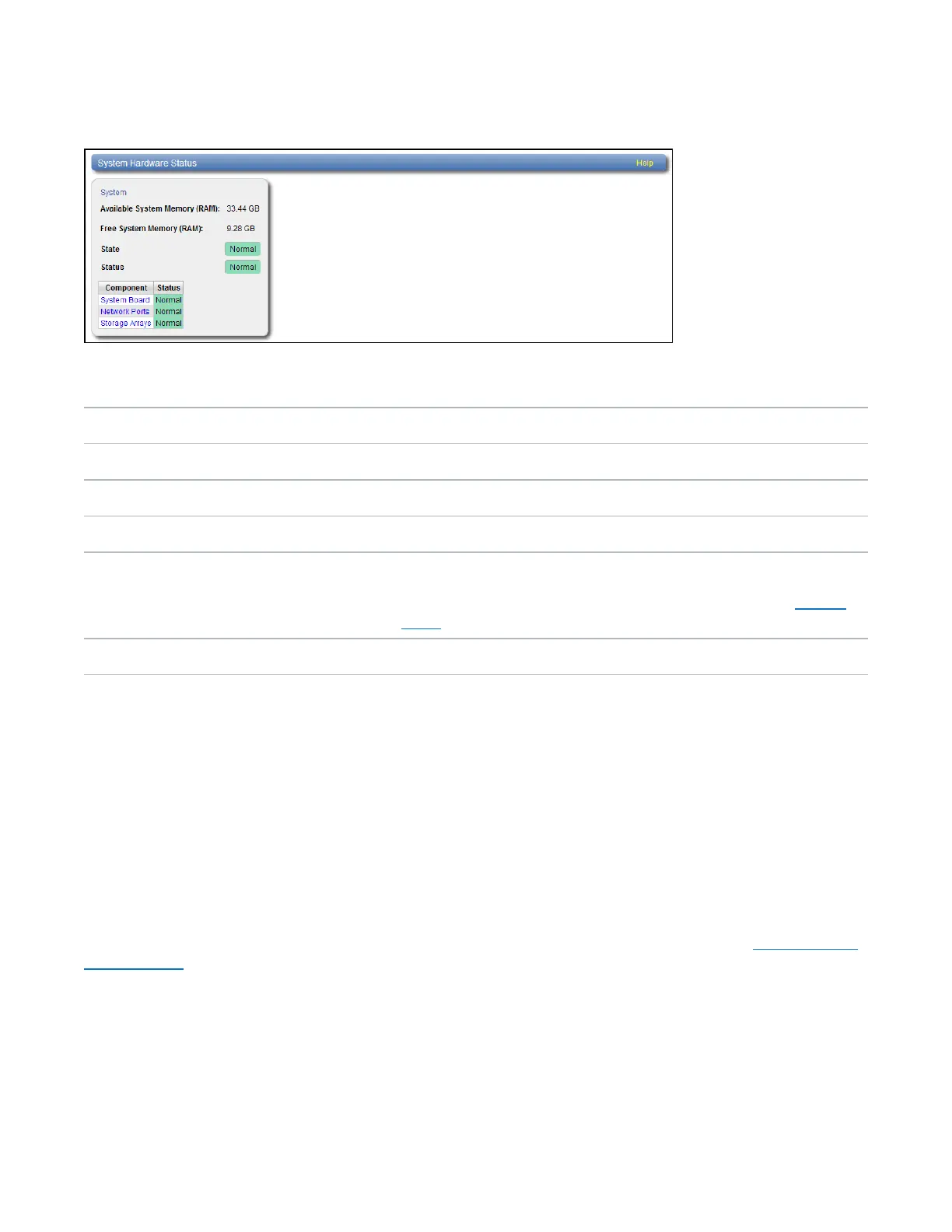

Figure106:Hardware Summary Page
The HardwareSummary page displays the following information:
AvailableSystemMemory(RAM) The total amount of memory (RAM) installed in the system.
FreeSystemMemory(RAM) The amount of system memory (RAM) that is currently free.
State The status of the node.
Status The overall status of all components in the node.
ComponentName The name of the main component.
Click the component name to see detailed information (see Details
below).
ComponentStatus The overall status of the main component.
Details
The Details page allows you to view detailed information about the hardware components of the DXi6900.
To access the Details page, on the Hardware page, click the Details tab.
Use the Details page to view information for the following components:
SystemBoard
The SystemBoard page allows you to view information reported by the main system board in the node,
such as temperature, voltage, fan, and power supply information.
To access the SystemBoard page, on the Details page, click theSystemBoard tab (see Figure 107 on
the next page).
