The Inline page allows you to view throughput performance for inline data flow. Inline data flow includes
deduplicated and non-deduplicated backup data as well as received replication data.
To access the Inline page, on the Performance page, click the Inline tab (see Figure 112 below).

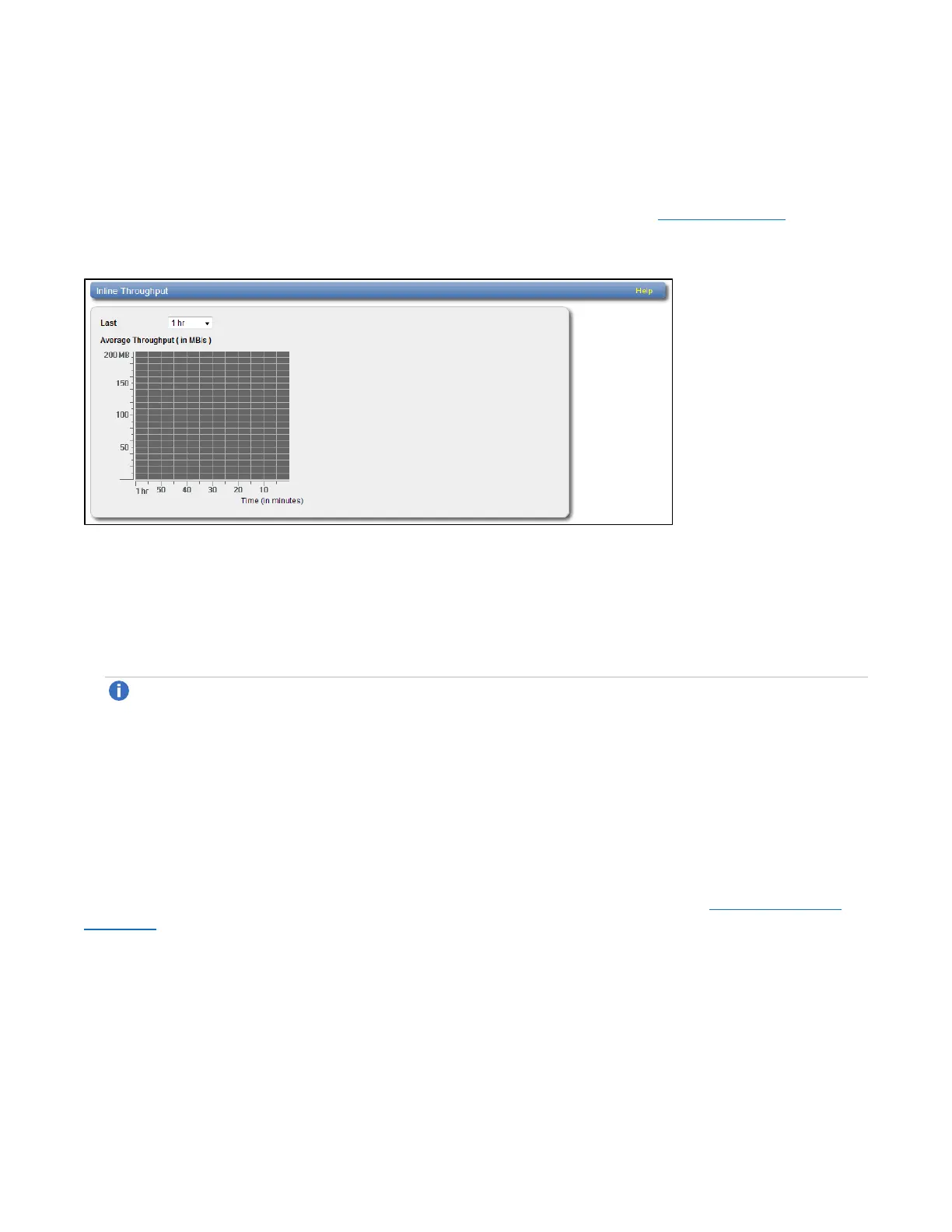

Figure112:Inline Page
Use the Inline page to display recent inline data flow activity in a dynamic graph:
l Select the amount of time to display in the Last list (1–24 hours).
l The horizontal axis displays time (in minutes).
l The vertical access displays inline throughput (0–2,000 MB/s).
Note:The range represented by the Y-axis changes based on the maximum value, increasing in
200 MB increments as needed.
l Each bar on the graph represents approximately 1 minute of time.
l Hold the cursor over a bar to display the value of the bar.
Ethernet
The Ethernet page allows you to view throughput performance for network send and receive activity.
To access the Ethernet page, on the Performance page, click the Ethernet tab (see Figure 113 on the
next page).
