VTL Status
Quantum DXi6900 User’s Guide 186

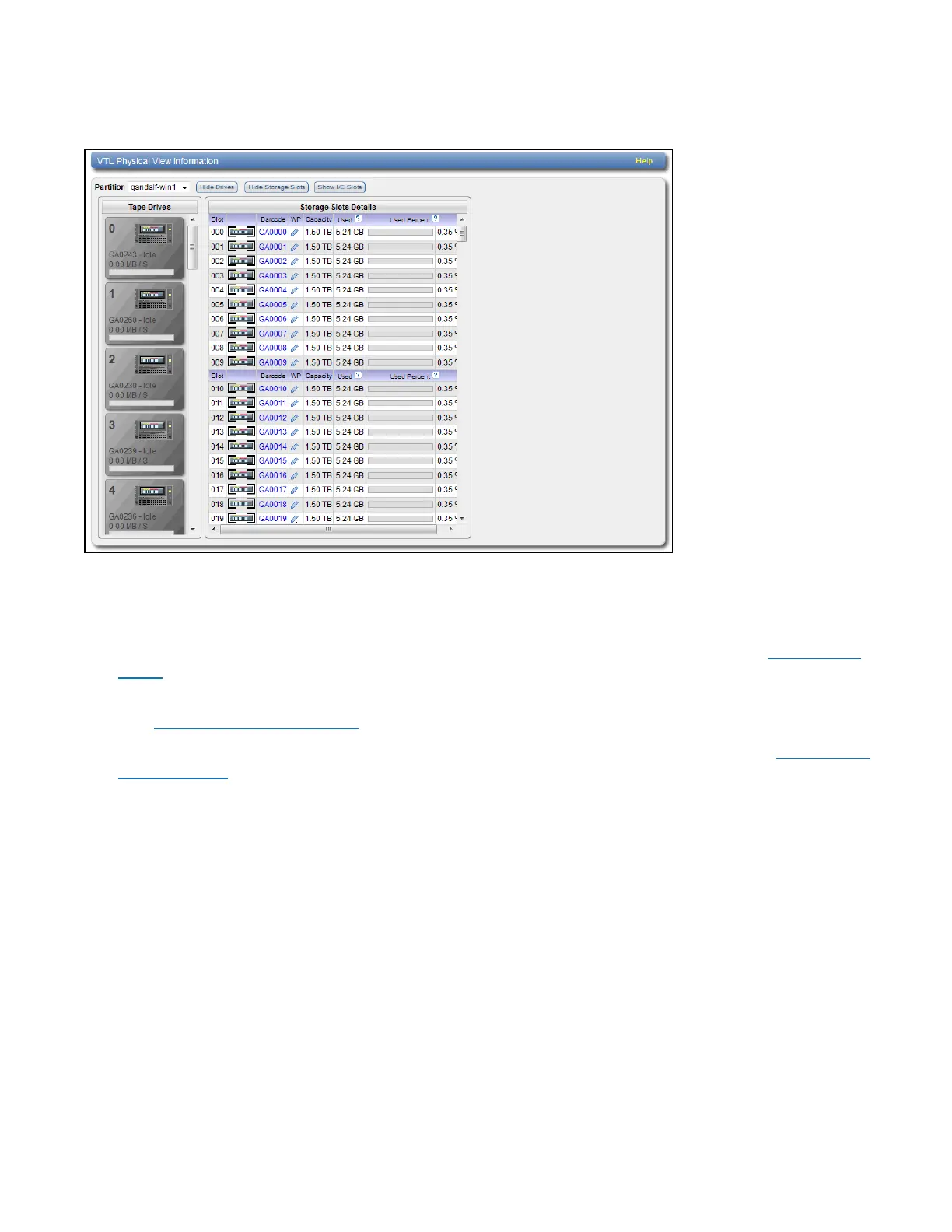

Figure118:Physical View Page
Use the controls in the VTLPhysicalViewInformation section to select the information to display:
1. Select the VTL to display in the Partition drop-down box.
2. Click HideDrives or ShowDrives to hide or show the virtual tape drives in the VTL (see Tape Drives
below).
3. Click HideStorageSlots or ShowStorageSlots to hide or show the virtual storage slots in the VTL
(see Storage and I/E Slots below).
4. Click HideI/ESlots or ShowI/ESlots to hide or show the virtual I/E slots in the VTL (see Storage and
I/E Slots below).
TapeDrives
The TapeDrives section displays information about virtual tape drives in the VTL:
l If a cartridge is mounted in the tape drive, the barcode of the cartridge displays beneath the drive.
l Click a tape drive to view detailed information about the drive.
StorageandI/ESlots
The StorageSlots and I/ESlots sections displays information about the virtual cartridges located in the
storage and I/E slots:
The following information is displayed for each cartridge:
