VTL Configuration
Quantum DXi6900 User’s Guide 244

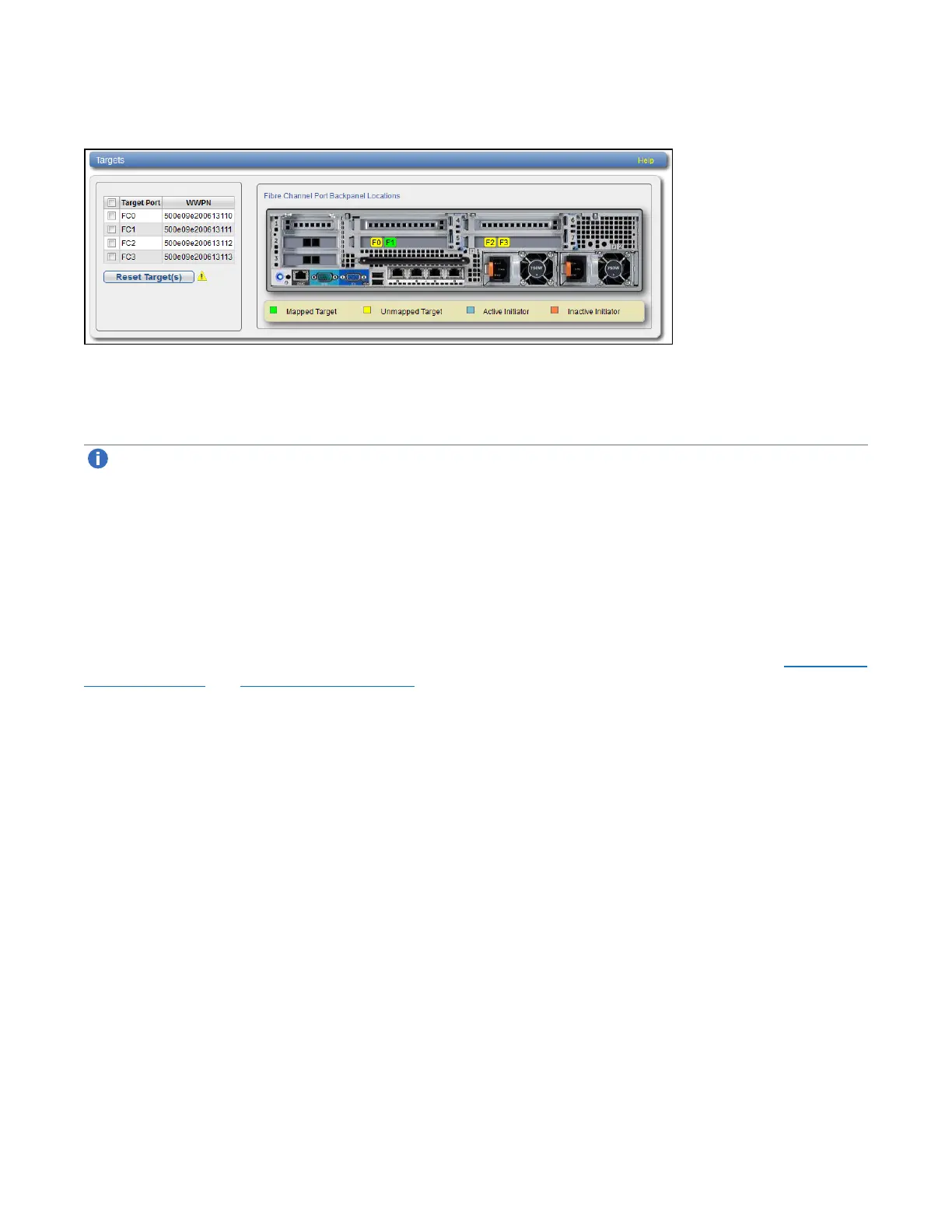

Figure155:DXi6900 G2/DXi6900-S Targets Page
The Targets page displays the TargetPort and WWPN for the currently configured targets. The
BackpanelLocations section displays a graphical representation of the Fibre Channel and Ethernet ports
as they appear on the rear of the system.
Note:A mapped (green) status indicates the host is currently logged on to one or more Fibre Channel
target ports.
Select one or more targets and click ResetTarget(s) to initiate a Fibre Channel reset on the selected ports.
A reset causes the ports to go through LIP (Loop Initialization Protocol).
Target Usage
Use the TargetUsage page to view current target and device mappings for the DXi6900.
To access the TargetUsage page, on the HostAccess page, click the TargetUsage tab (see Figure 156
on the next page and Figure 157 on page 246).
