Chapter 9: Configuration
System
Quantum DXi6900 User’s Guide 314
Because this host is not on the same subnet as the data interface, the DXi cannot communicate with the
host unless you specify routing information in the RoutingDetails section.
In this example, you would specify 10.50.50.0 for destination network, 255.255.255.0 for the destination
netmask, and 10.20.20.1 as the destination gateway.
Note:The gateway specified in the IPAddressTable section is for incoming traffic to the interface.
The gateway specified in the RoutingDetails section is for outgoing traffic from the interface.
Example2:SegmentsandTargetontheSameSubnet

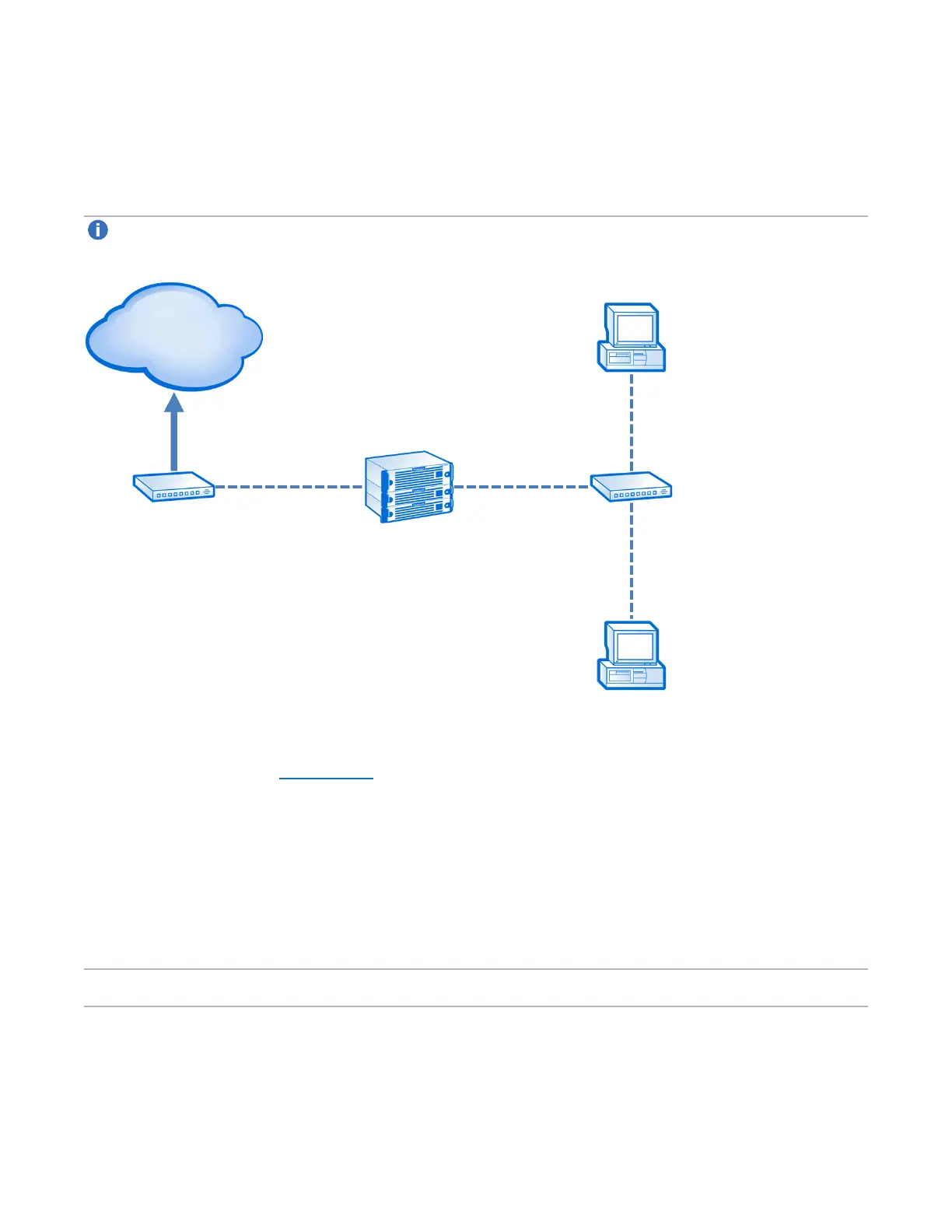

In the example below (see on page 305), the DXi has two segmented interfaces, one for data and
management traffic, and one for replication traffic:
l The source DXi management/data IP address, the source DXi replication IP address, and the target DXi
IP address are all on the same subnet (192.168.10.x).
l To make sure the replication segment is used when communicating with the target DXi, you must add a
host route in the RoutingDetails section on the source DXi.
In this example, you would specify the following routing details for the replication interface on the source
DXi:
Destination Use the IP address of the target DXi (192.168.10.200).
