Quantum QX Series User Manual

Chapter 1: Components
QXS-648 System
QX and QXS Setup Guide 31

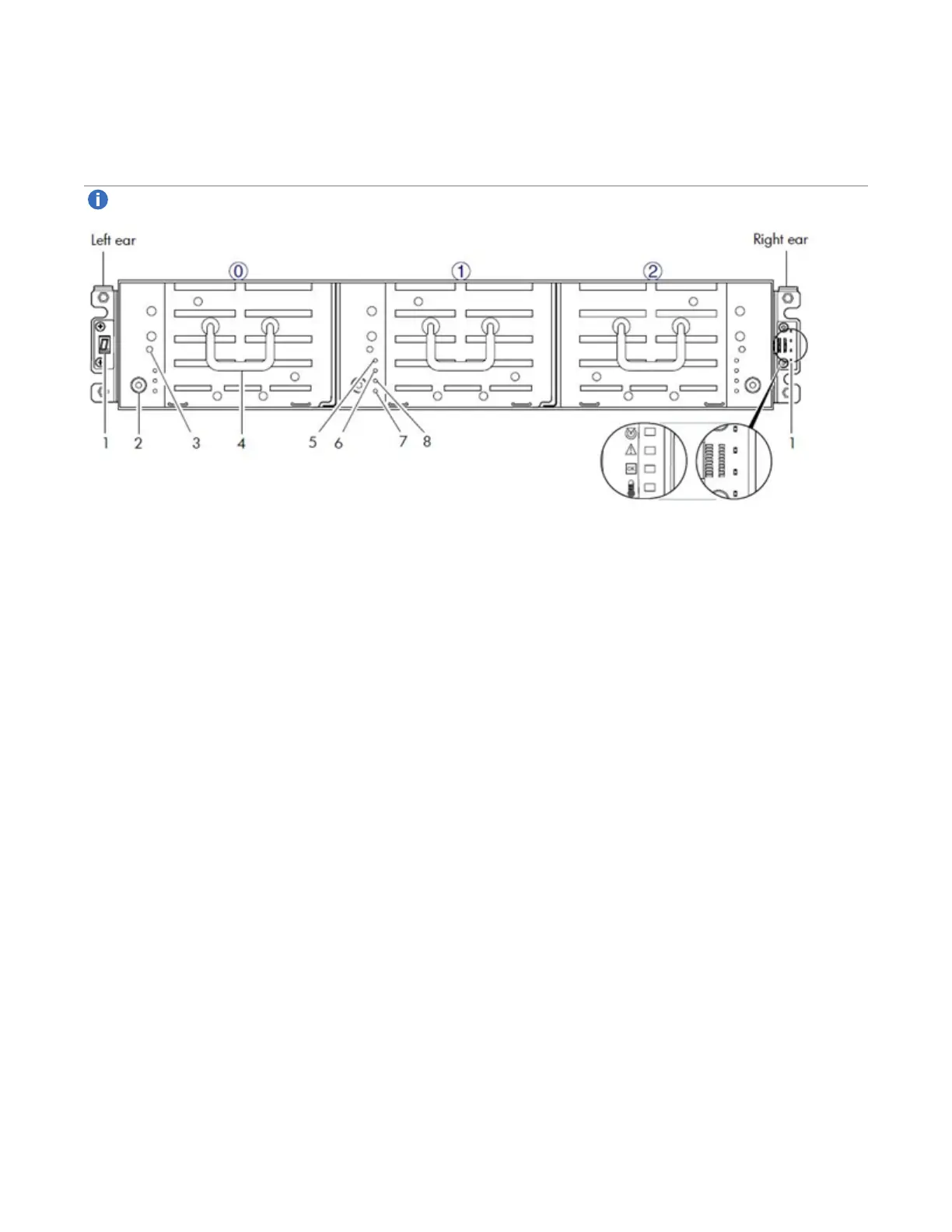

Figure38:2U48 Drive Chassis (Bezel Removed)
Note:Integers atop drawers indicate the drawer numbering sequence.
1. ChassisearLEDs
2. Thumbscrew(forsecuringoraccessingdrawers)
3. DisabledButton(usedbyengineeringonly)
4. DrawerHandle(showninstowedposition)
5. DrawerStatusLED:FRUOK
6. DrawerStatusLED:Fault/ServiceRequired
7. DrawerStatusLED:OKtoRemove
8. DrawerStatusLED:UnitLocator
2U48 Drive Chassis Drawers
Open the Chassis drawers to access the drives. Drawers 0 and 1 provide access to drive bays from the right
side of the drawer; drawer 2 provides access to drive bays from the left side of the drawer. These respective
side views—or profiles—are shown in the following figure.
