Quantum QX Series User Manual

Chapter 1: Components
QXS-648 System
QX and QXS Setup Guide 36
Host CNC Ports Configured with SFPs (1 Gb RJ-45/iSCSI)

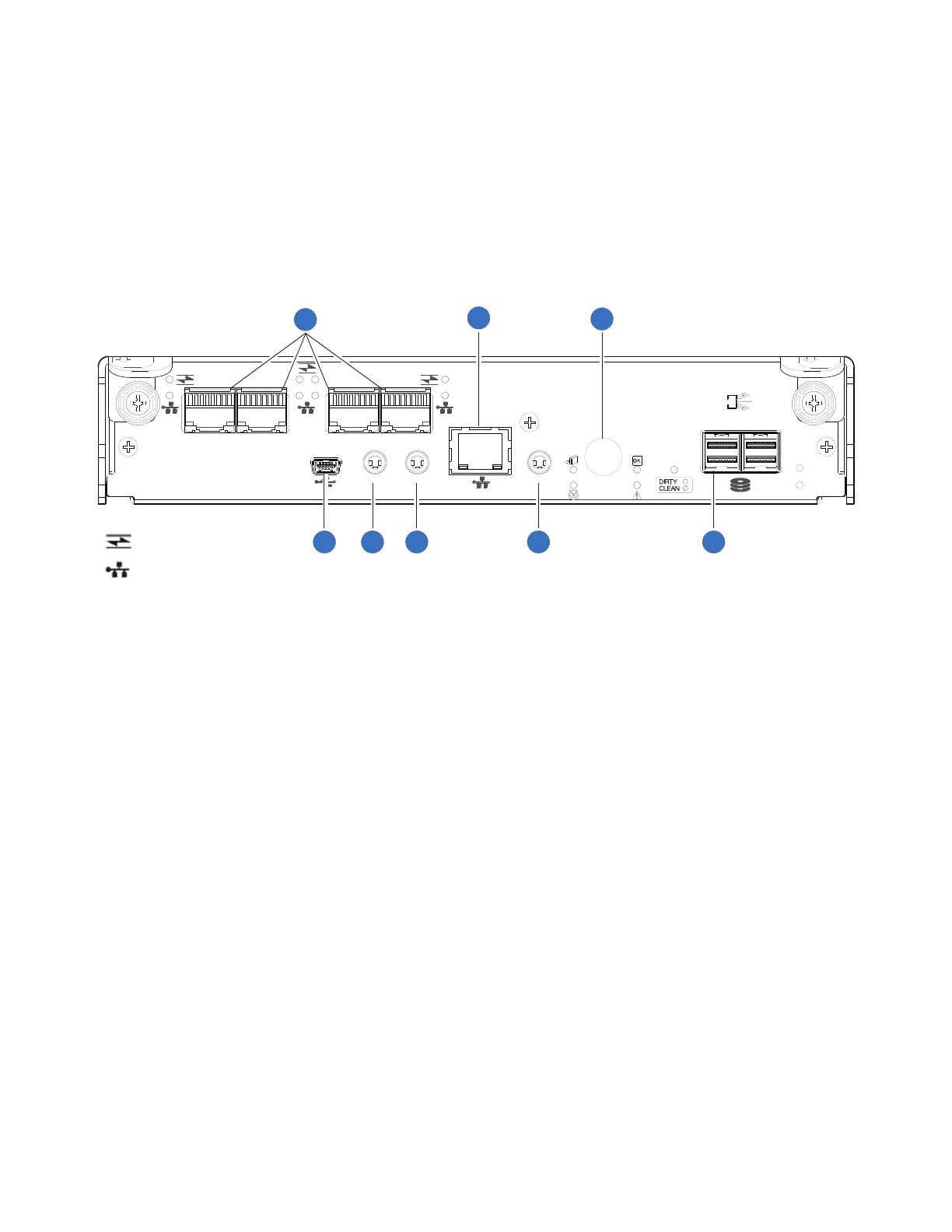

The following figure shows a Controller I/O Module with CNC ports configured with SFPs supporting 1 Gb
RJ-45.
Figure43:CNC Ports Configured with SFPs (RJ-45)
CACHE
CLI
CLI
LINK
ACT
S ERVICE−1S ERVICE−2
MGMT
EXP 0 EXP 1
6Gb/s
S
S
A
PORT 0 PORT 1 PORT 2 PORT 3
LINK 0
LINK 1
5
2 3 6 8
1
7
4
= FC LEDs
= 1Gb iSCSI LEDs (all CNC ports use 1 Gb RJ-45 SFPs in this figure)
1
2
3
4
5
6
7
8
1. CNCPorts(usedforhostconnectionorreplication)
2. CLIPort(USB-TypeB)
3. ServicePort2(usedbyservicepersonnelonly)
4. ReservedforFutureUse
5. NetworkPort
6. ServicePort1(usedbyservicepersonnelonly)
7. DisabledButton(usedbyengineeringonly)
(Stickershowncoveringtheopening)
8. Mini-SASExpansionPort
