2.4. Power Connection
VIN(Red) / GND(Black) are the power input pins. The input voltage range for this device is from
8V to 32V. The device is designed to be installed in vehicles that operate on 12V or 24V vehicle
without the need for external transformers.

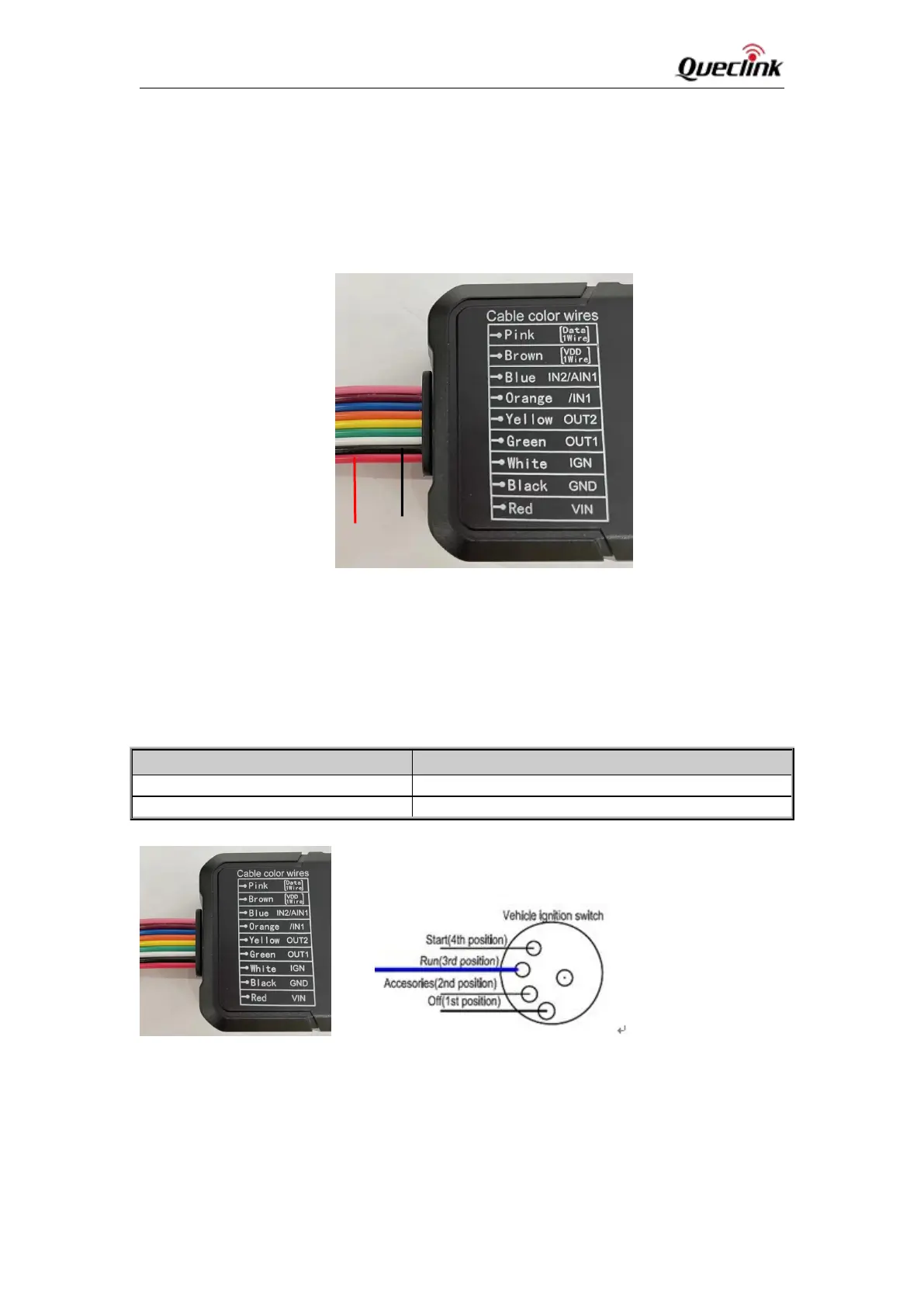

Figure 3: Typical Power Connection
2.5. Ignition Detection
Table 5: Electrical Characteristics of Ignition Detection
Logical State
Electrical State
Active
5.0V to 32V
Inactive
0V to 3V or Open
Figure 4: Typical Ignition Detection
IGN(White) is used for ignition detection. It is strongly recommended to connect this pin to
ignition key “RUN” position as shown above.
An alternative to connecting to the ignition switch is to find a non-permanent power source that
is only available when the vehicle is running, for example, the power source for the FM radio.
GND
VIN
IGN (White)
