3.8. Motion Sensor Direction
GV58CEU has an internal 3-axis accelerometer supporting driving behavior monitoring, crash
detection and motion detection. The following figure shows the directions of the motion sensor.

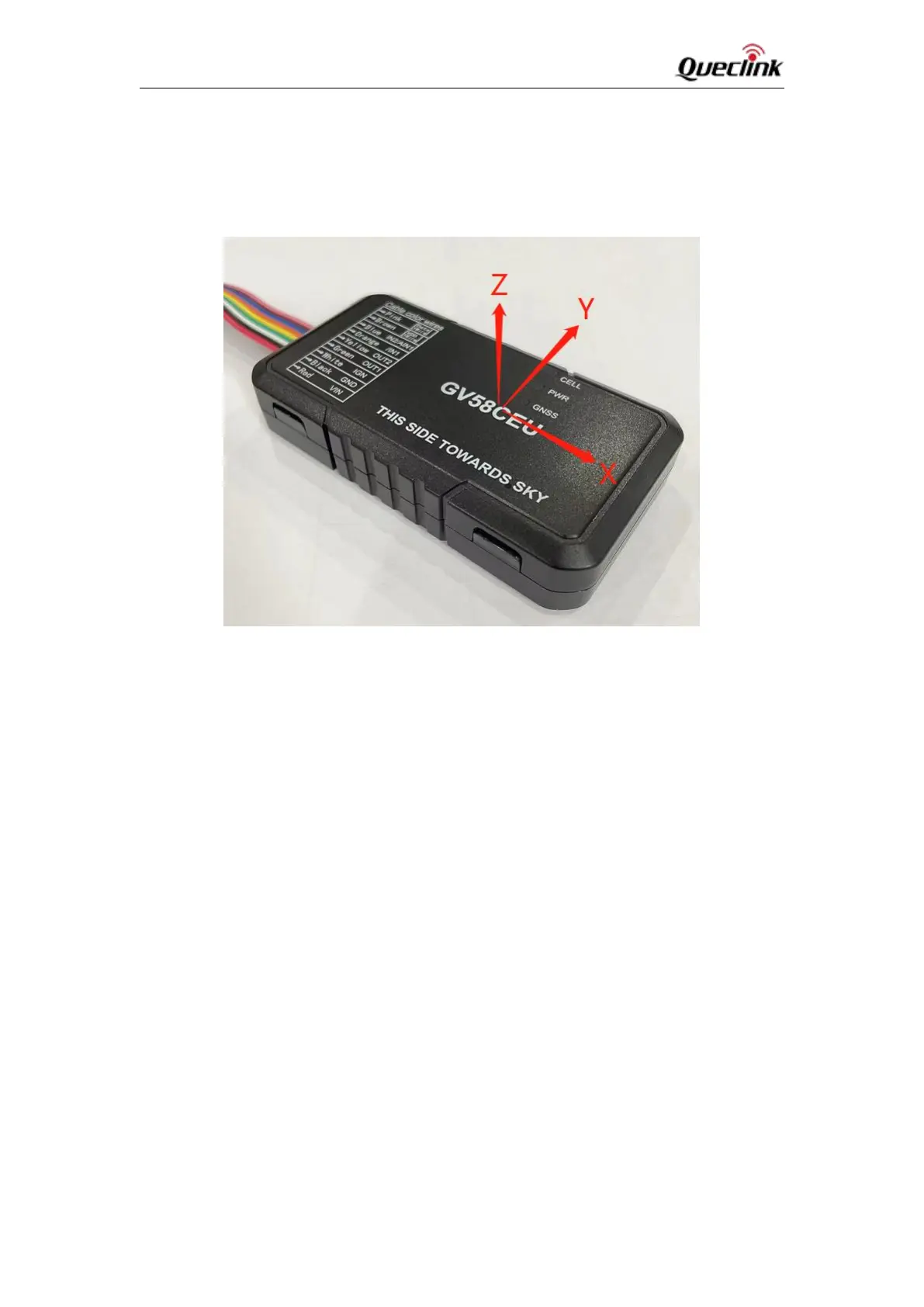

Figure 13: Motion Sensor Direction
Note:
1. The opposite direction of the cable bundle is the positive direction of the X-axis.
2. The Z-axis is in the positive direction above the front housing surface.
3. The positive directions of the three axes are perpendicular to each other, as shown in the
above figure.
