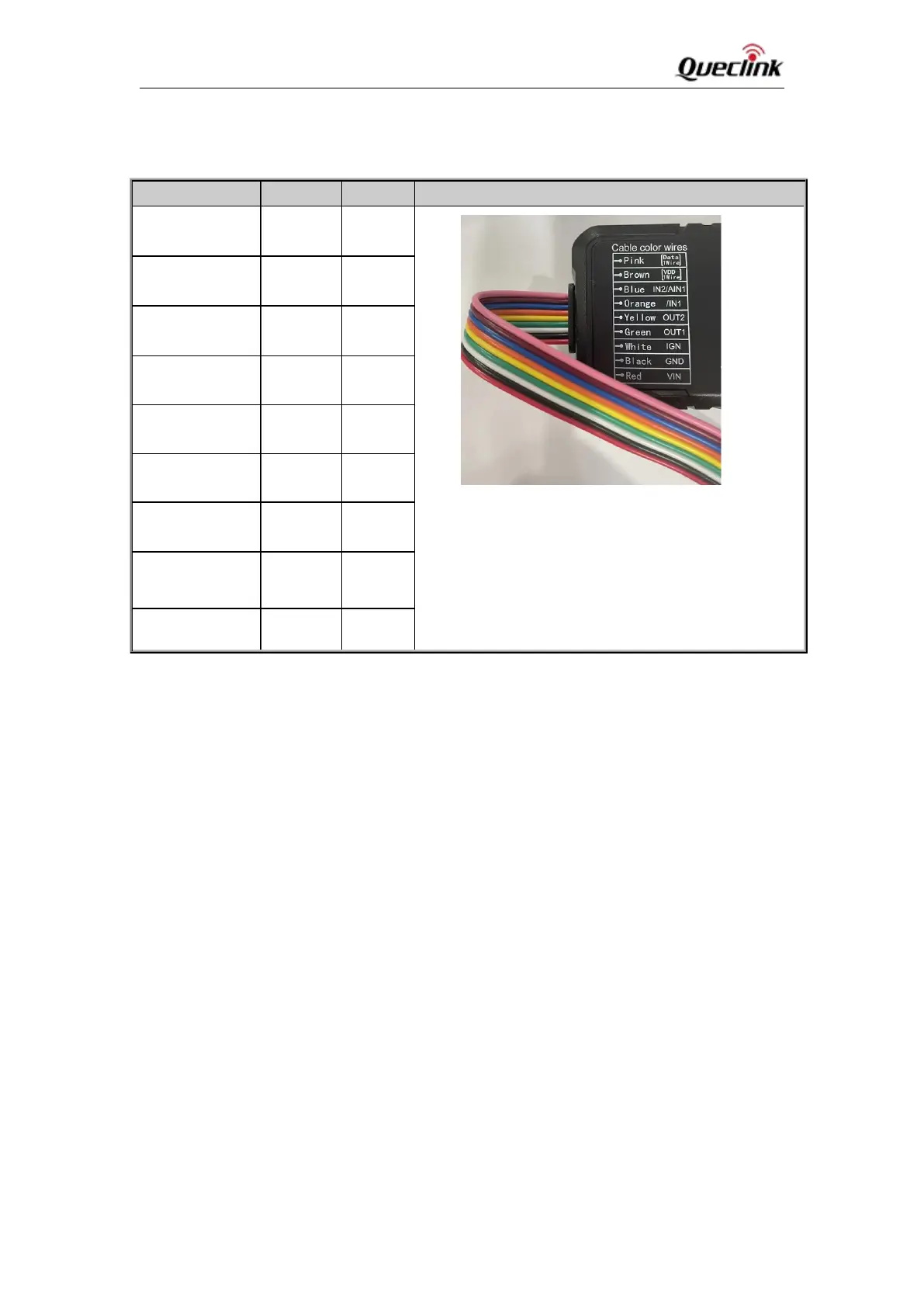

3.2. GV58CEU External Cable Interface
Table 8: GV58CEU User Cable Color Definition
Definition
Color
PIN No
Cable
Data 1Wire
Pink
1
VDD 1Wire
Brown
2
IN2/AIN1
Blue
3
/IN1
Orange
4
OUT2
Yellow
5
OUT1
Green
6
IGN
White
7
GND
Black
8
VIN
Red
9
3.3. Turn on/Turn off
 Turn on: Connect the device to external power, and it will be turned on automatically. CELL
LED light will be on.
 Turn off: Disconnect the device from external power, and it will be turned off.
