GV58CEU User Manual
TRACGV58CEUUM001 –
16
–
3.5. Install a SIM Card

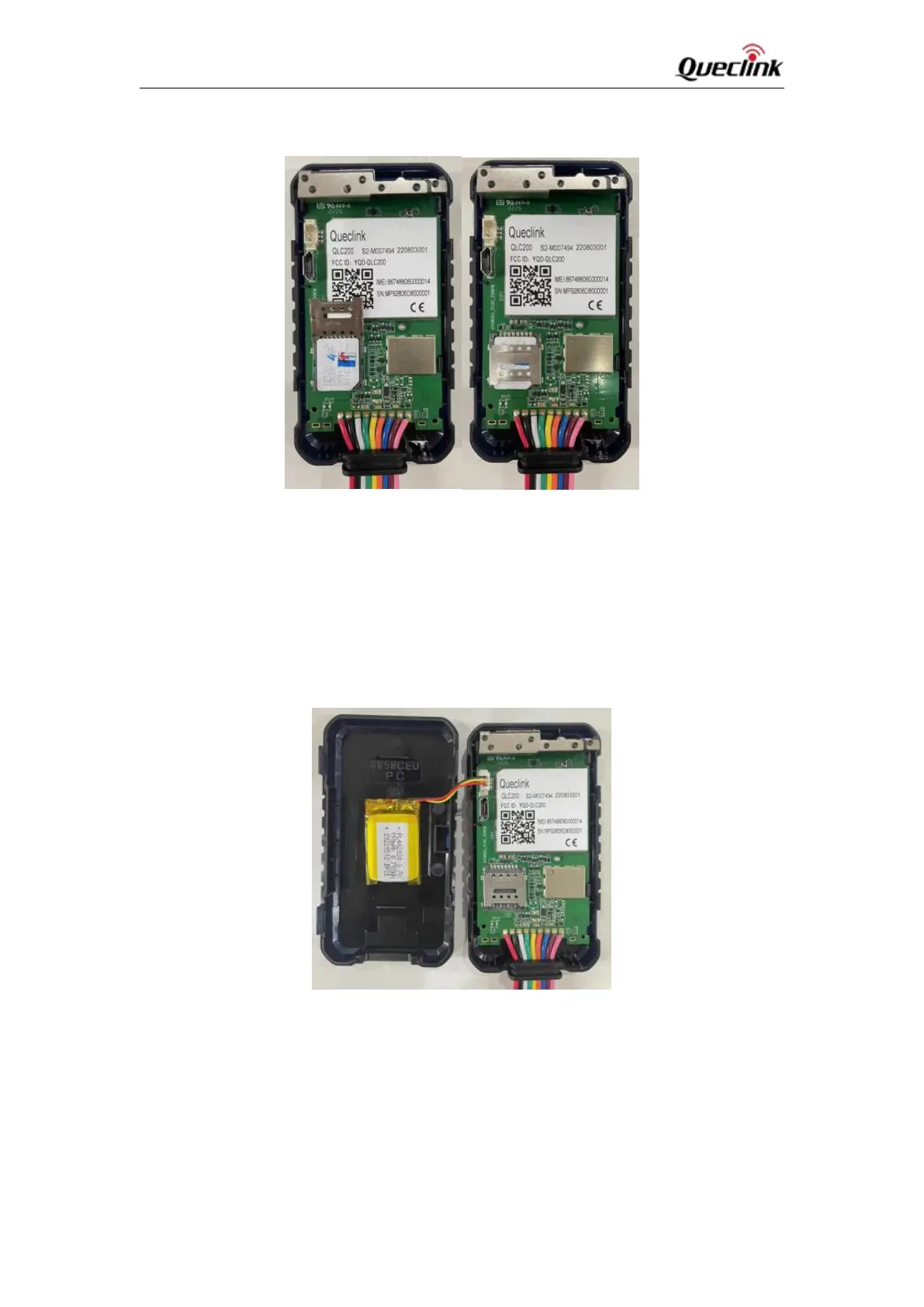

Figure 10: SIM Card Installation
Open the case and ensure the unit is not powered. Slide the holder up to open the SIM card
holder. Insert the SIM card into the holder as shown above with the gold-colored contact area
facing down. Take care to align the cut mark. Close the SIM card holder. Close the case.
3.6. Install the Internal Battery
Figure 11: Battery Installation
