Quectel RM502Q-GL - Antenna Connectors; Antenna Connector Location

5G Module Series
RM502Q-GL Hardware Design
RM502Q-GL_Hardware_Design 64 / 83
locked within 3 minutes after the loss of lock.
3. Cold start sensitivity: the minimum GNSS signal power at which the module can fix position
successfully within 3 minutes after executing cold start command.
5.3. Antenna Connectors
5.3.1. Antenna Connector Location

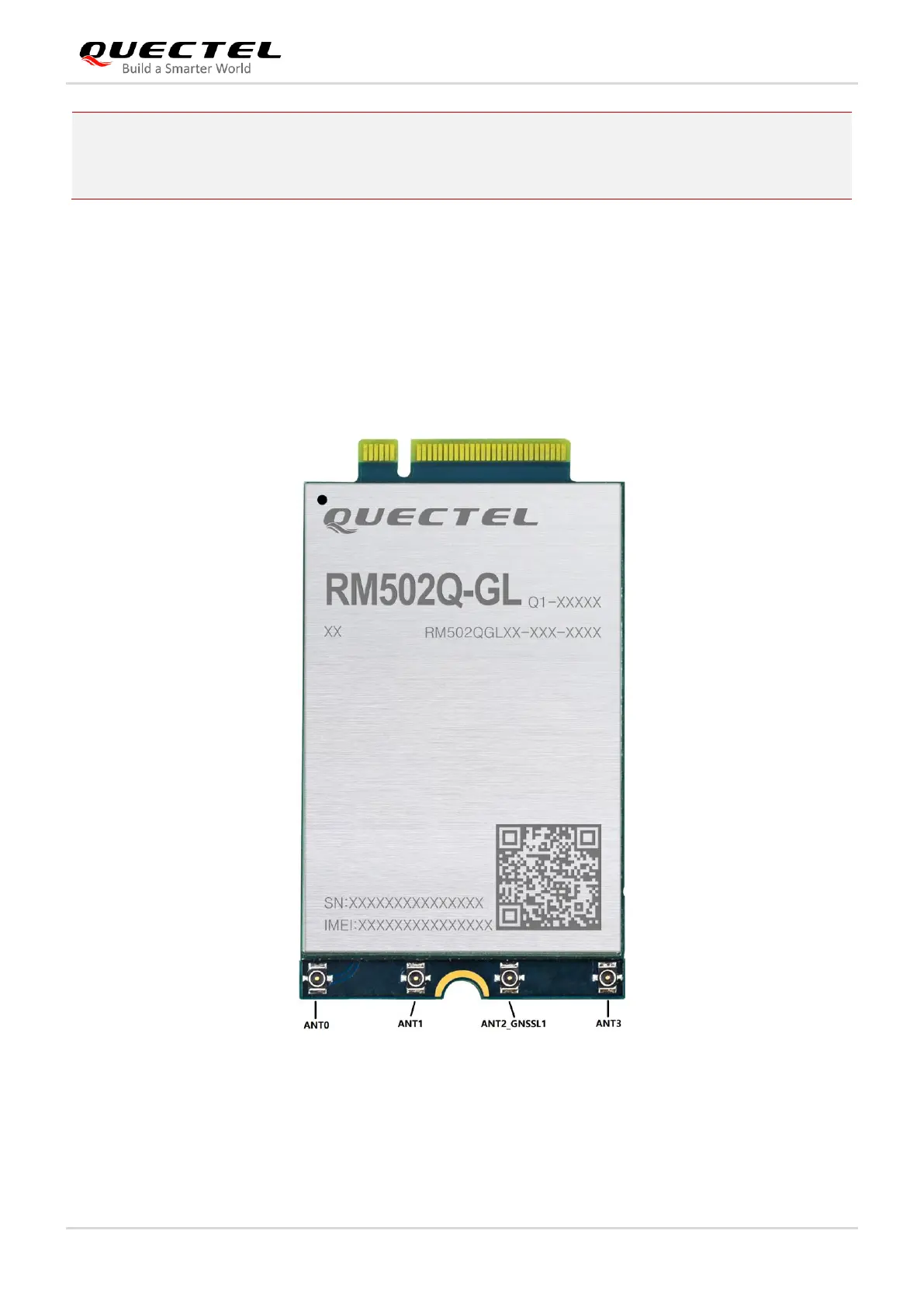

RM502Q-GL has four antenna connectors: ANT0, ANT1, ANT2_GNSSL1 and ANT3, which are shown
below.
Figure 28: Antenna Connectors on the Module
