7 Mechanical Dimensions and
Packaging
This chapter mainly describes mechanical dimensions and packaging specifications of the module. All
dimensions are measured in mm, and the tolerances are ±0.05 mm unless otherwise specified.
7.1. Mechanical Dimensions of the Module

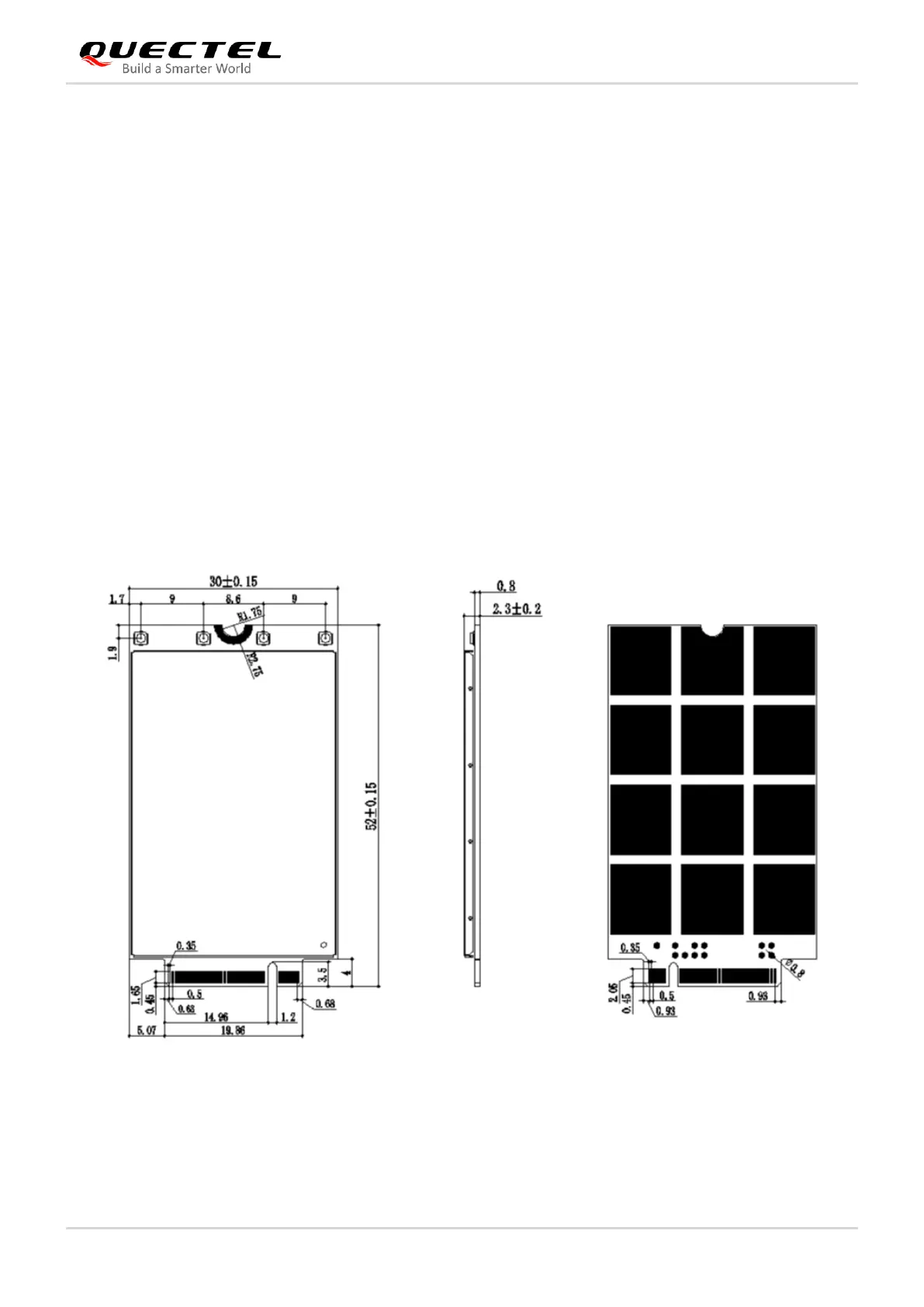

Figure 37: Mechanical Dimensions of the Module (Unit: mm)
