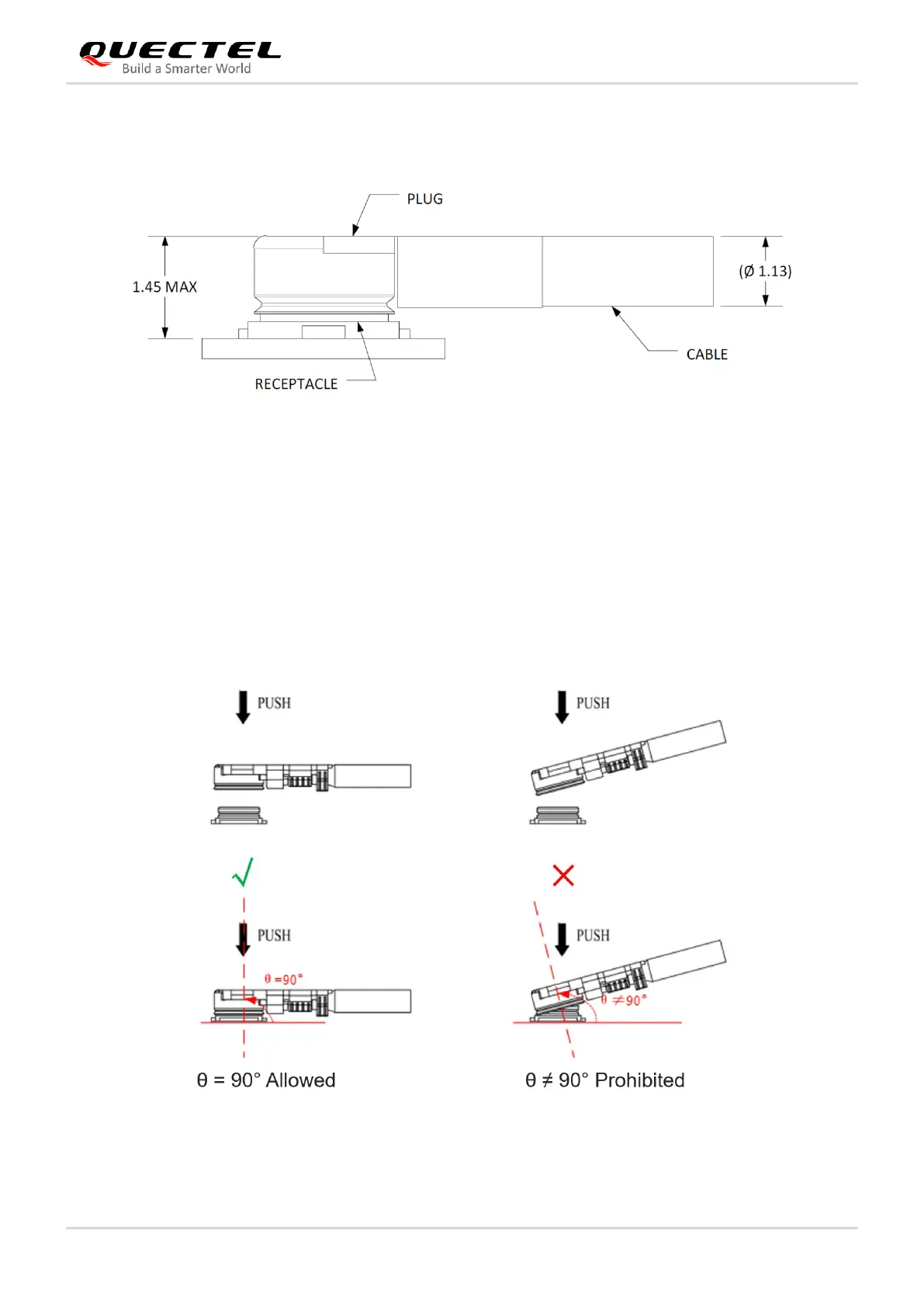

The following figure illustrates the connection between the receptacle RF connector on RM502Q-GL and
the mating plug using a Ø 1.13 mm coaxial cable.
Figure 32: Connection between RF Connector and Mating Plug Using Ø 1.13 mm Coaxial Cable
5.3.4. Recommended RF Connector for Installation
5.3.4.1. Assemble Coaxial Cable Plug Manually
The pictures for plugging in a coaxial cable plug is shown below, θ = 90° is acceptable, while θ ≠ 90° is
not.
Figure 33: Plug in a Coaxial Cable Plug
