UMTS/HSPA Module Series
UC20 Hardware Design
UC20_Hardware_Design Confidential / Released 52 / 84

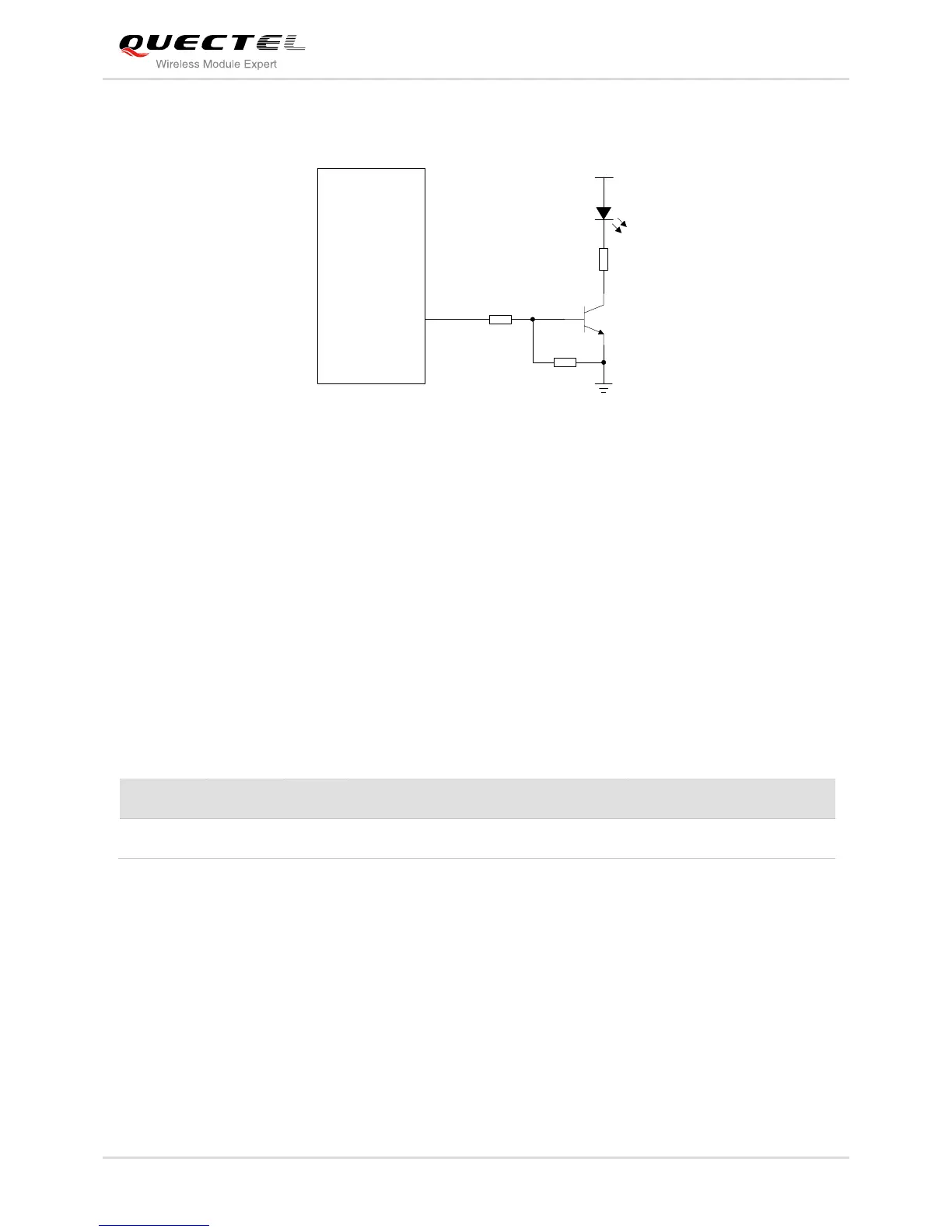

A reference circuit is shown in the following figure.
Figure 31: Reference Circuit of the Network Indicator
3.16. Operating Status Indication
3.16.1. STATUS
The STATUS pin is an open drain output for indicating the module operation status. You can connect it to
a GPIO of DTE with pulled up, or as LED indication circuit as below. When the module is turned on
normally, the STATUS will present the low state. Otherwise, the STATUS will present high-impedance
state.
Table 21: Pin Definition of STATUS
The following figure shows different design circuit of STATUS, you can choose either one according to
your application demands.
