Quectel UC20

UMTS/HSPA Module Series
UC20 Hardware Design
UC20_Hardware_Design Confidential / Released 70 / 84
3.4
3.2
3.4 3.2 3.4 3.2
4.8
32
29
0.5
1.5

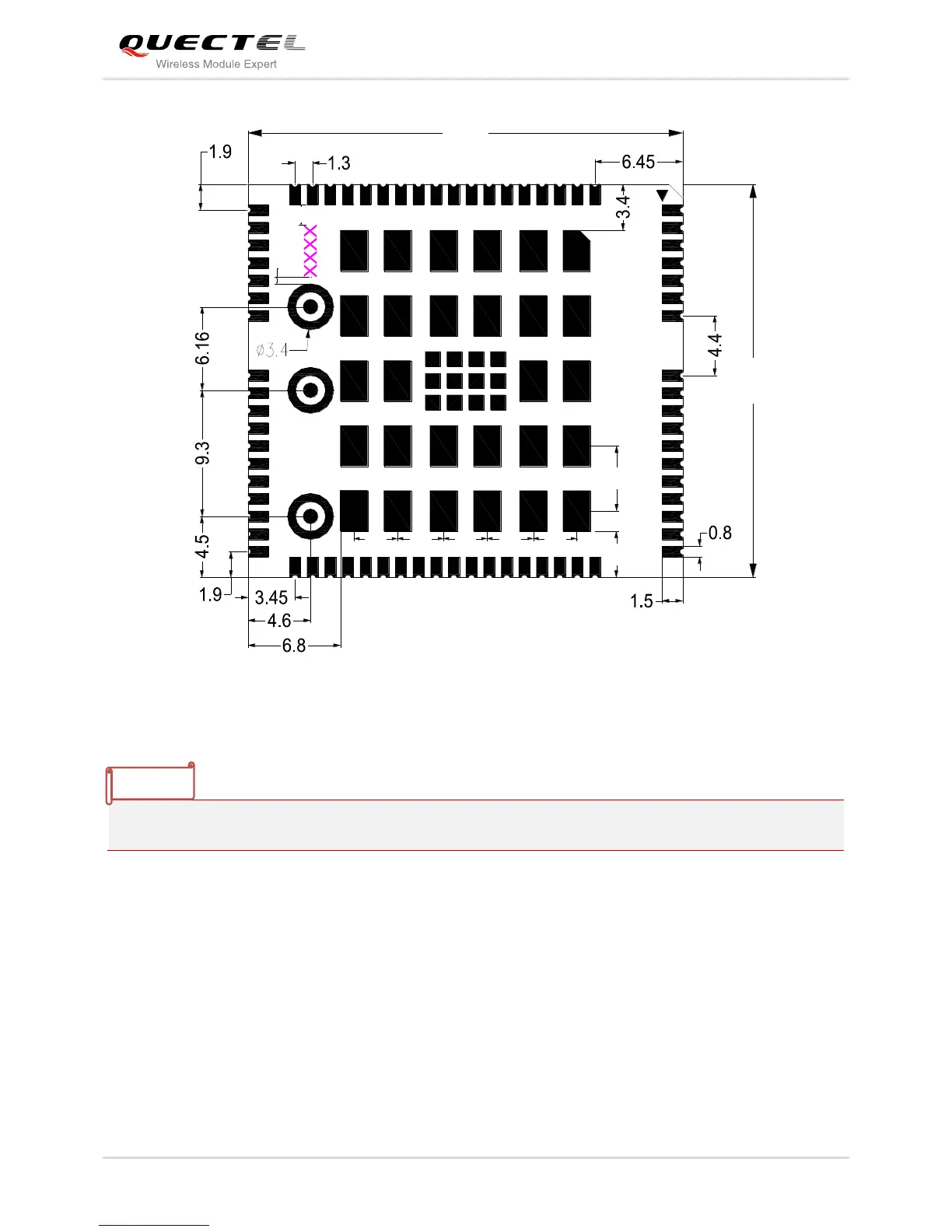

Figure 41: UC20 Bottom Dimensions (Bottom View)
“XXXX” in pink on above figure is the PCB board code in the exposed copper.
NOTE
