2

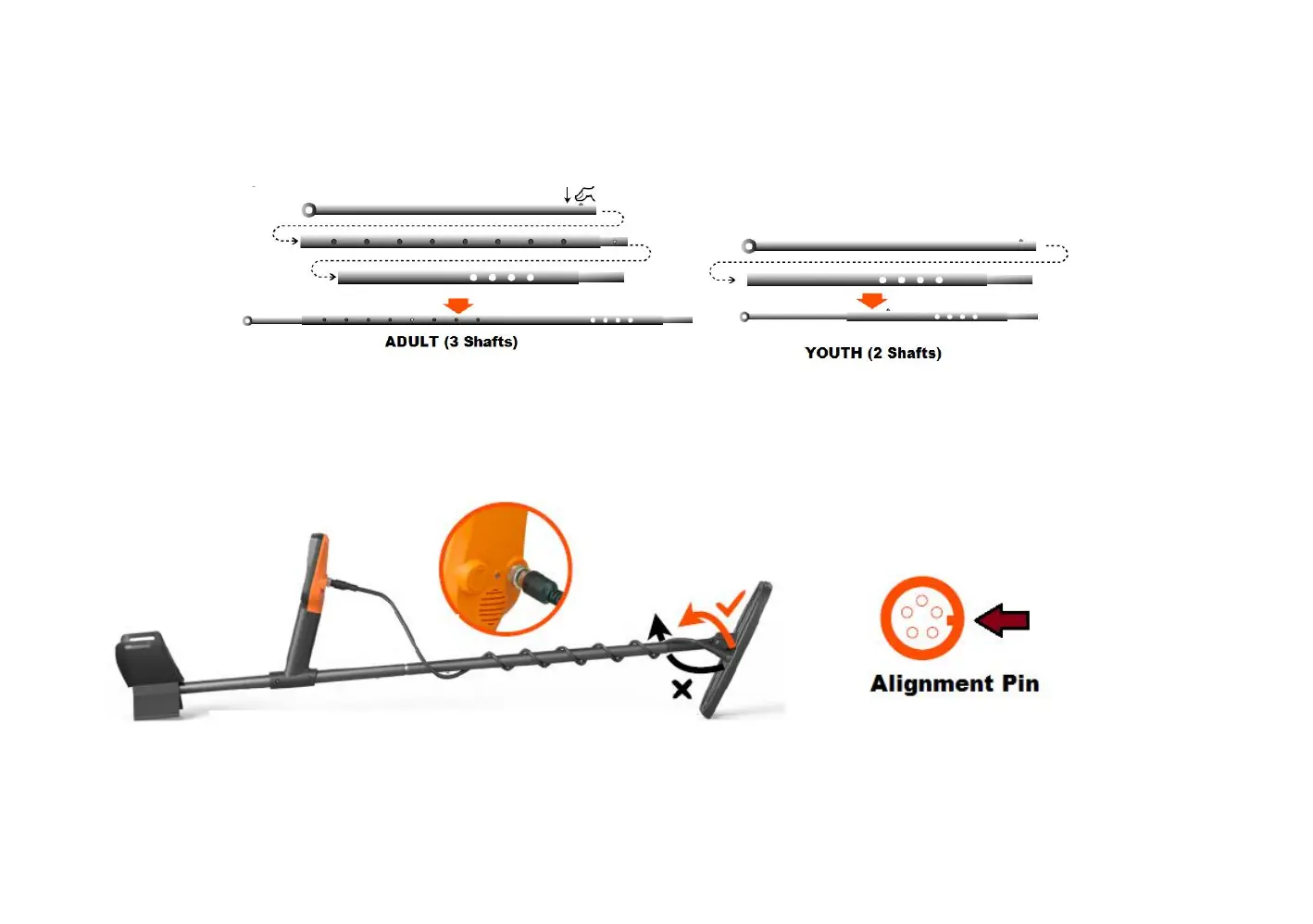

3. Select the number of shaft assemblies needed based on the desired configuration; i.e., Adult or Youth. Put them together as
shown below:
4. Attach the search coil to the lower shaft using the bolt, cap and washers included. Wind the cable around the shaft and connect it
to the control housing. NOTE: There is an alignment pin in the housing for the cable connector. Do not force the cable into the
connector. When you wrap the cable around the shaft, you want it look like the picture below but do not make it too tight so that
the cable is pulled from the coil when it is moved.
