TCD 2022 / 2042
EN
INSTALLATION AND USE MANUAL - REV 002A
Enabling button
The button enables or disables the control.
Direction buttons
The right direction button moves the bow or the stern of the boat to the right depending on which thruster is controlled.
The left direction button moves the bow or the stern of the boat to the left depending on which thruster is controlled.
Enabling LEDs
The enabling LEDs indicate the enabled/disabled state of the control.
Direction LEDs
The direction LEDs indicate the movement of the boat to the right or left.
All LEDs are also used to signal any errors or problems.

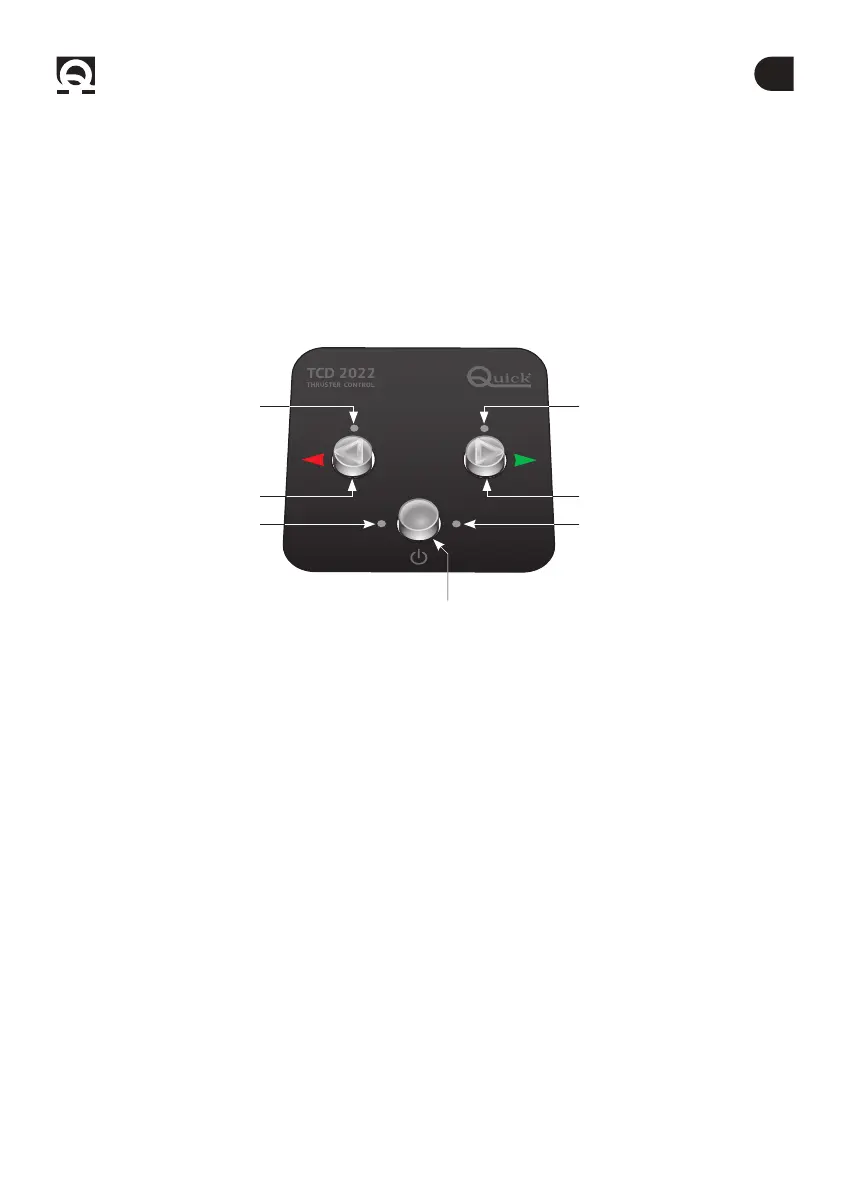

3.1 - TCD 2022 control
The user interface is composed of:
• 1 enabling button
• 2 direction buttons
• 2 enabling LEDs
• 2 direction LEDs
LEFT DIRECTION LED RIGHT DIRECTION LED
LEFT DIRECTION BUTTON RIGHT DIRECTION BUTTON
ENABLING LED
ENABLING BUTTON
ENABLING LED
3.0 - OPERATION
