INSTALLATION AND USE MANUAL - REV 002A
Enabling button
The button enables or disables the control.
Joystick
When the joystick is moved to the right at the end of its stroke, it moves the bow or stern of the boat to the right,
according to which thruster is controlled.
When the joystick is moved to the left at the end of its stroke, it moves either the bow or stern of the boat to the left,
according to which thruster is controlled.
Enabling LEDs
The enabling LEDs indicate the enabled/disabled state of the control.
Direction LEDs
The direction LEDs indicate the movement of the boat to the right or left.
All LEDs are also used to signal any errors or problems.
3.2 -

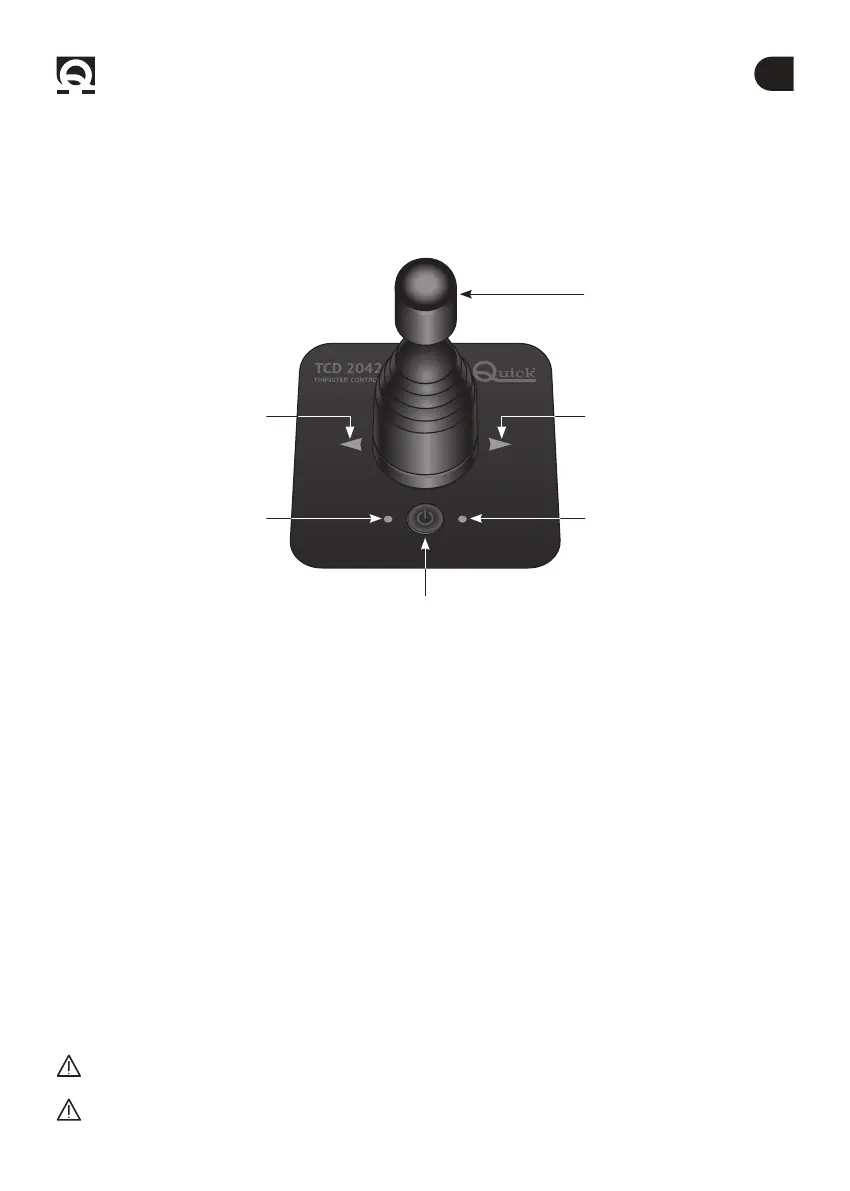

TCD 2042 control
The user interface is composed of:
• 1 enabling button
• 1 joystick
• 2 enabling LEDs
• 2 direction LEDs
LEFT DIRECTION LED RIGHT DIRECTION LED
ENABLING LED
ENABLING BUTTON
ENABLING LED
JOYSTICK
3.0 - OPERATION
Use the switch on the power supply line to switch the control on and off. Once the power supply has been connected,
the control will test the LEDs. For the LED test, all the LEDs will come on simultaneously for 2 seconds. If no errors or
problems are detected, the control will then go to the disabled state (see control disabling).
ATTENTION
:
practice controlling the thruster in open water, to avoid damaging the boat with accidentally wrong
manoeuvres.
ATTENTION
:
make sure no swimmers or floating objects are in the vicinity before switching on the thruster.
3.3 - Switching on the control
